911076 (SLM 241) - Ariens 21" Push Walk-Behind Mower, 5.5hp Tecumseh (SN: 000101 & Above) Mower Pan & Bag Parts Diagram

21" Push Walk-Behind Mower, 5.5hp Tecumseh

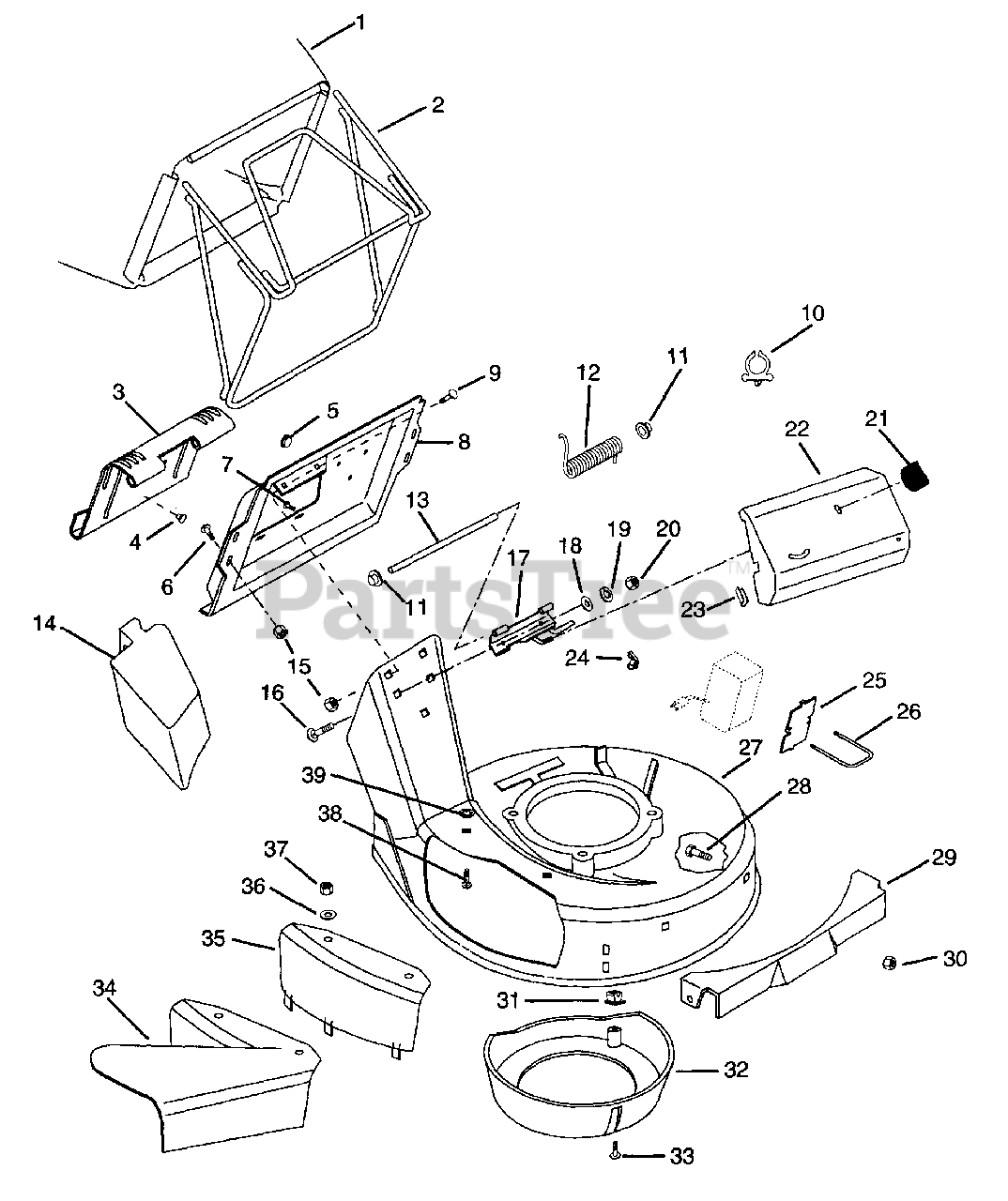

Mower Pan & Bag Parts Diagram

  • Title

1

Ariens 01152100

BAG,CONSUMER BLACK 15 OZ/YD2
(Superseded to 01180500)

Note: (Not 312)

$118.99

$

In Stock, Qty 5

0

2

Ariens 01138700

BAGGER FRAME
(Superseded to 71103000)

Note: (Not 312)

$224.99

$

Usually ships in 4-12 days

0

3

Ariens 01136559

CATCHER PLATE DOOR

$

$

Not available

4

Ariens 07516000

BUTTON BUMPER

$1.49

$

In Stock, only 2 left!

0

5

Ariens 07511800

BUMPER

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

Note: (Not 463,475)

$2.49

$

In Stock, Qty 5

0

6

Ariens 05915500

BLT-HEX .25-20X.50 PL GR5
(Superseded to 05947900)

Note: (Not 463,475)

$0.99

$

In Stock, Qty 5

0

7

Ariens 07407900

SCR-TAP 10-24X.375 TORX PHD
(Superseded to 07414900)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 01159759

CATCHER PLATE

Note: (Not 463,475)

$84.99

$

Usually ships in 4-12 days

0

8

Ariens 01177700

CATCHER PLATE

Note: (463,475)

$

$

Not available

9

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 01166500

SNAP-IN CLIP

Note: (Not 076,304,463,467)

$

$

Not available

11

Ariens 02215300

PUSH NUT, .25

$2.49

$

In Stock, Qty 15

0

12

Ariens 08322400

SG-TORS .120X.68X3.09

$7.49

$

Usually ships in 4-12 days

0

13

Ariens 01141000

DOOR PIN

$14.99

$

Usually ships in 4-12 days

0

14

Ariens 71102700

MULCH MASTER MULCHER ACCESSORY

$52.99

$

In Stock, only 3 left!

0

15

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (Not 475)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (463,475)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

17

Ariens 01138259

HINGE BASE

Note: (076,304,463,467)

$9.49

$

Usually ships in 4-12 days

0

17

Ariens 01155559

HINGE BASE WELDMENT

Note: (Not 076,304,463,467)

$42.99

$

Usually ships in 4-12 days

0

18

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, Qty 20+

0

19

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

20

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 8

0

21

Ariens 01159300

WING - NUT

Note: (Not 076,304,463,467)

$

$

Not available

22

Ariens 01158800

DRIVE COVER

Note: (Not 076,304,463,467)

$

$

Not available

23

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

Note: (Not 076,304,463,467)

$7.49

$

Usually ships in 4-12 days

0

24

Ariens 06515700

NUT-WING 8-32
(Superseded to 06538100)

Note: (071,315)

$6.49

$

Usually ships in 4-12 days

0

25

Ariens 01178500

BATTERY PLATE
(Superseded to 01178559)

Note: (071,315)

$46.99

$

In Stock, only 1 left!

0

26

Ariens 01178600

U-BOLT

Note: (071,315)

$32.99

$

In Stock, only 1 left!

0

27

Ariens 51104300

MOWER PAN W/DECALS SP/COMM
(Superseded to 51107500)

Note: (Not 076,077,312,467,468)

$

$

Not available

27

Ariens 51105300

MOWER PAN W/DECALS SP

Note: (077,312,468)

$

$

Not available

27

Ariens 51105400

MOWER PAN W/DECALS PUSH
(Superseded to 51105100)

Note: (076,304,463,467)

$

$

Not available

28

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$3.49

$

In Stock, Qty 15

0

29

Ariens 01153559

FRONT PANEL
(Superseded to 01183559)

Note: (069,072,076,077,304,308,311,312,313,315,318,463,467,468,469,475)

$79.99

$

Usually ships in 4-12 days

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (069,072,304,308,311,312,313, 315,318,463,467,468,469,475)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

32

Ariens 01173700

CENTER BAFFLE

$46.99

$

Usually ships in 4-12 days

0

33

Ariens 07407400

SCR-TAP 10-16X.62 SLPH PL AB
(Superseded to 07415000)

$2.49

$

Usually ships in 4-12 days

0

34

Ariens 01167600

SIDE DISCHARGE ASSEMBLY
(Superseded to 01180200)

$36.99

$

In Stock, Qty 6

0

35

Ariens 01136400

SIDE DISCHARGE COVER
(Superseded to 01180351)

Note: (069,070,071,072,073,304, 308,311,313,314,315,317, 308,320,463,469,475)

$46.99

$

In Stock, only 2 left!

0

36

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (069,070,071,072,073,304, 308,311,313,314,315,317,318,320,463,469,475)

$1.99

$

In Stock, Qty 20+

0

37

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

Note: (069,070,071,072,073,304, 308,311,313,314,315,317, 318,320,463,469,475)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

Note: (069,070,071,072,073,304, 308,311,313,314,315,317, 318,320,463,469,475)

$2.99

$

In Stock, Qty 20+

0

39

Ariens 06514900

NUT-PUSH .312

Note: (069,070,071,072,073,304, 308,311,313,314,315,317, 318,320,463,469,475)

$0.99

$

In Stock, Qty 20+

0
