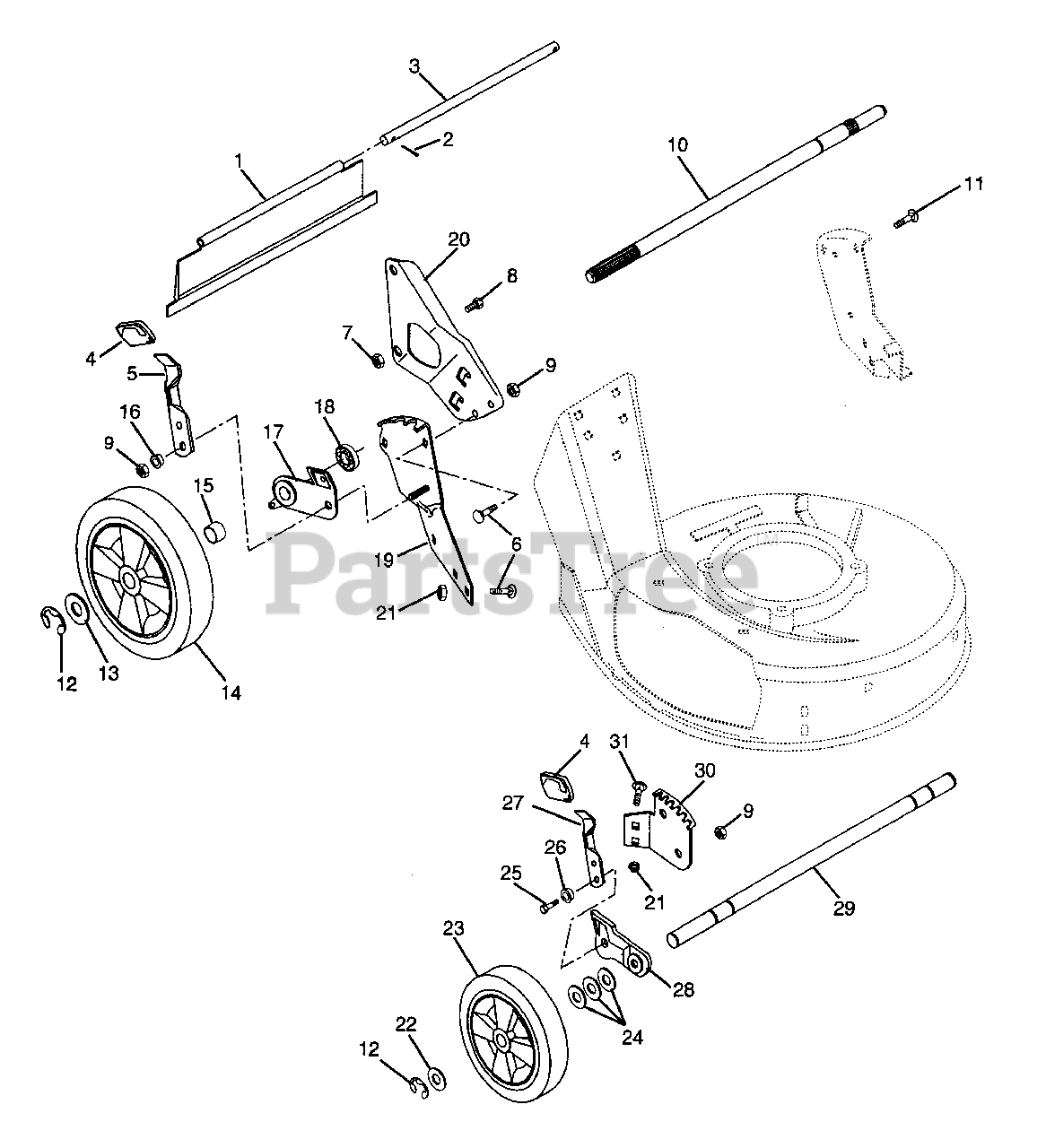

911081 (SLM 21) - Ariens 21" Push Walk-Behind Mower, 5hp Tecumseh (SN: 000101 & Above) > Parts Diagrams (7) > Wheels And Adjusters

REAR PROTECTIVE GUARD, PUSH

Part# 07522400

Note: (Models 81, 83)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

REAR PROTECTIVE GUARD, S.P.

Part# 07522300

Note: (Models 75, 78, 79, 80, 84, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

@PIN-CTR .06X.50 EXTPRSQCT YWZ

Part# 06712400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

ROD

Part# 01140000 (Superseded to 01140067) 

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

KNOB

Part# 07513600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

HEIGHT ADJUSTMENT LEVER

Part# 01130600 (Superseded to 01242000) 

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

HANDLEBAR STUD

Part# 01167100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

REAR AXLE,5/8 DIA

Part# 01149500

Note: (Models 75, 78, 79, 80, 82, 84, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

REAR AXLE-PUSH MOWER MM

Part# 01171900

Note: (Model 81)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

REAR AXLE-PUSH MOWER

Part# 01168800

Note: (Model 83)

OEM Warranty Repair Part for Ariens

BLT-RDHDSQNK .31-18X1.0 SHTYZ

Part# 06221800 (Superseded to 06200007) 

OEM Warranty Repair Part for Ariens

RG-RTNG-EXT .500X.042 (E)

Part# 05710200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

USE 06405600

Part# 05405600 (Superseded to 06436600) 

OEM Warranty Repair Part for Ariens

LH WHEEL

Part# 07106100 (Superseded to 51115900) 

Note: (Models 75, 78, 79, 80, 82, 83, 84, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

RH WHEEL

Part# 07106300 (Superseded to 51115900) 

Note: (Models 75, 78, 79, 80, 82, 83, 84, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

TIRE 10X1.75

Part# 07138100

Note: (Model 81)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

10 1/2 TIRE SKIN

Part# 07103900 (Superseded to 51115900) 

Note: (Models 75, 78, 79, 80, 82, 83, 84, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

SPACER TUBE,PUSH LH

Part# 01149700

Note: (Models 81, 83)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

SPACER TUBE PUSH RH

Part# 01149800

Note: (Models 81, 83)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

SPACER TUBE, SELF PROPEL

Part# 01149600

Note: (Models 75, 78, 79, 80, 82, 84, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

BSHG-FLG .32X.500X.344X.880

Part# 05514800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

REAR BRACKET & BEARING ASSEMBL

Part# 01131300

Note: (Model 81)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

REAR BRACKET & BEARING ASSEMBL

Part# 01131200

Note: (Model 81)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

REAR BRACKET&BEARING ASSY COMM

Part# 01168700

Note: (Model 83)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

REAR BRACKET&BEARING ASSY COMM

Part# 01168600

Note: (Model 83)

OEM Warranty Repair Part for Ariens

R.H. REAR ADJUSTOR BRACKET

Part# 01158100

Note: (Models 83, 84, 321, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

L.H. REAR ADJUSTOR BRACKET

Part# 01158200

Note: (Models 83, 84, 321, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

REAR ADJUSTMENT BRACKET L.H.

Part# 01130700

Note: (Models 75, 78, 79, 80, 81, 82, 322, 323, 324, 325)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

REAR BRACKET & BEARING ASSY RH

Part# 01150400

Note: (Models 75, 78, 79, 80, 82, 322, 323, 324, 325)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

BRG-BALL .625X1.383X.50

Part# 05417600 (Superseded to 05417500) 

Note: (Models 84, 321, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

QUADRANT, REAR - L.H.

Part# 01154200 (Superseded to 01154251) 

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

REAR QUADRANT, R.H.

Part# 01154300 (Superseded to 01154351) 

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

RH HANDLEBAR MTG. BRKT.

Part# 01137200 (Superseded to 01137251) 

Note: (Models 75, 78, 79, 80, 81, 82, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

RH HANDLEBAR MOUNT WELDMENT

Part# 01177400 (Superseded to 01177451) 

Note: (Models 83, 84)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

LH HANDLEBAR MTG. BRKT.

Part# 01137100 (Superseded to 01137151) 

Note: (Models 75, 78, 79, 80, 81, 82, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

LH HANDLEBAR MOUNT BRKT WELDM

Part# 01177500 (Superseded to 01177551) 

Note: (Models 83, 84)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

@NUT-SPNLK-FLG .312-18 YWZC

Part# 06530400

OEM Warranty Repair Part for Ariens

WSHR-FL-STL .505X.880X.072 YWZ

Part# 06436600

OEM Warranty Repair Part for Ariens

WHEEL

Part# 07120100 (Superseded to 51116000) 

Note: (Models 75,78, 79, 80, 82, 83, 84, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

TIRE 7X1.50

Part# 07138000

Note: (Model 81)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

WSHR-FL-STL .520X.827X.062 YZ

Part# 06418000 (Superseded to 06441100) 

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@BLT-HEX .31-18X1.00 GR5 YWZC

Part# 05946900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

BSHG-FLG .32X.500X.344X.880

Part# 05514800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

FRONT HEIGHT ADJUSTMENT LEVER

Part# 01120000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

LEFT ADJUSTOR BRACKET ASSEMBLY

Part# 01119800

Note: (Models 79, 81, 82, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

RIGHT ADJUSTOR BRACKET ASSEMBL

Part# 01119900

Note: (Models 79, 81, 82, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

RH ADJUSTER BRACKET

Part# 01176800

Note: (Models 83, 84)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

LH ADJUSTER BRACKET

Part# 01176900

Note: (Models 83, 84)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

FRONT AXLE

Part# 01168900

Note: (Models 79, 81, 82, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

FRONT QUADRANT, L.H.

Part# 01154000 (Superseded to 01154051) 

Note: (Models 79, 81, 82, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

FRONT QUADRANT, R.H.

Part# 01154100 (Superseded to 01154151) 

Note: (Models 79, 81, 82, 321, 322, 323, 324, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

@BLT-RDHDSQNK .31-18X.50 G5YZ

Part# 06222000

Note: (Models 79, 81, 82, 321, 322, 323, 325, 326, 327)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day
