911083 (DLM 21 C) - Ariens 21" Push Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Push Walk-Behind Mower, 6hp Robin Subaru

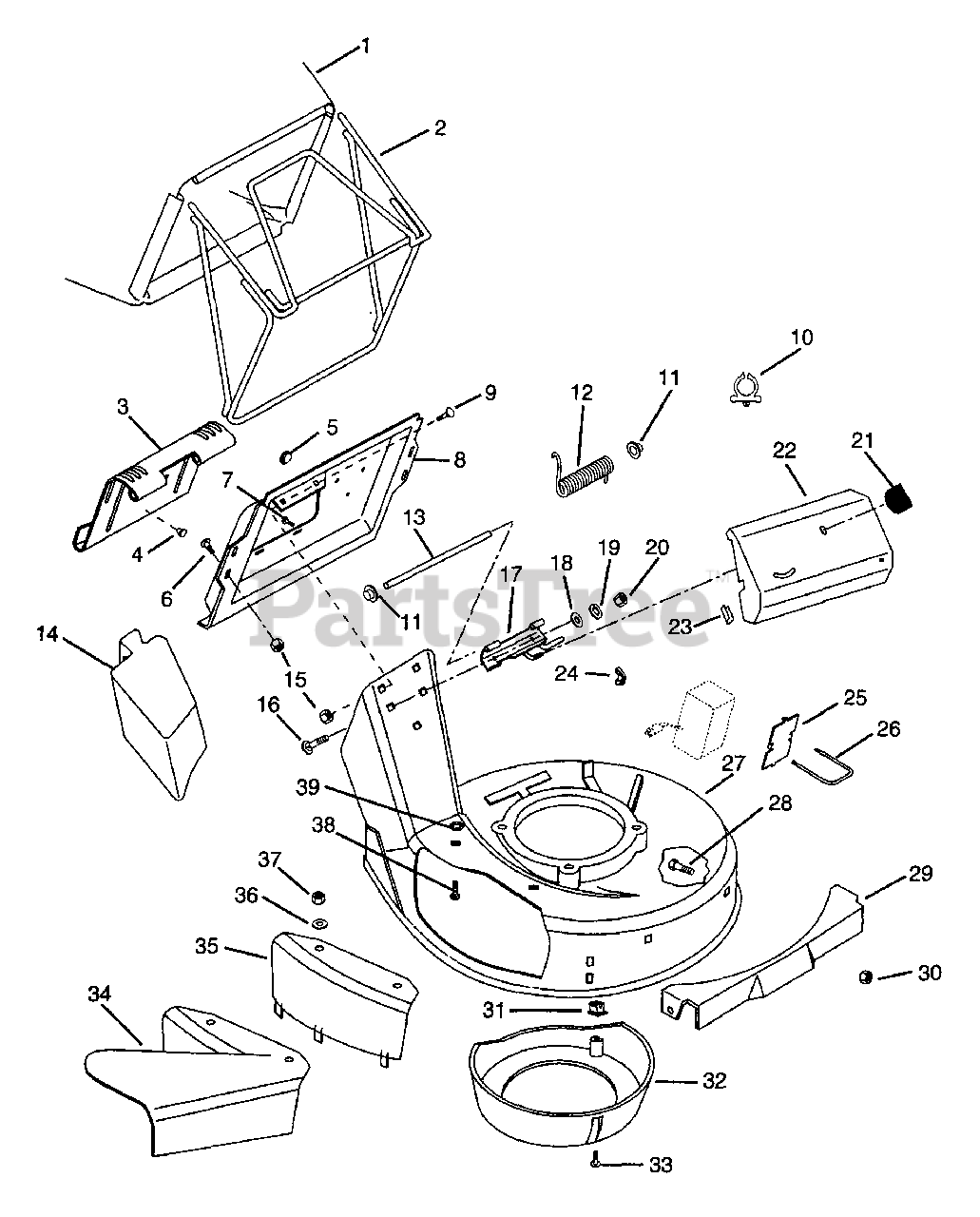

Mower Pan And Bag Parts Diagram

  • Title

1

Ariens 01152100

BAG,CONSUMER BLACK 15 OZ/YD2
(Superseded to 01180500)

$124.99

$

In Stock, only 2 left!

0

2

Ariens 01138700

BAGGER FRAME
(Superseded to 71103000)

$224.99

$

Usually ships in 4-12 days

0

3

Ariens 01136559

CATCHER PLATE DOOR

$

$

Not available

4

Ariens 07516000

BUTTON BUMPER

$1.99

$

In Stock, Qty 11

0

5

Ariens 07511800

BUMPER

$4.99

$

Usually ships in 4-12 days

0

6

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

Note: (Models 75, 78, 79, 80, 81, 82, 83, 321, 322, 323, 324, 325, 326, 327)

$3.49

$

In Stock, only 3 left!

0

6

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (Model 81)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$4.99

$

Usually ships in 4-12 days

0

8

Ariens 01159759

CATCHER PLATE

Note: (Models 75, 78, 79, 80, 81, 82, 321, 322, 323, 324, 325, 326, 327)

$92.99

$

Usually ships in 4-12 days

0

8

Ariens 01177700

CATCHER PLATE

Note: (Models 83, 84)

$

$

Not available

9

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 01166500

SNAP-IN CLIP

Note: (Models 78, 79, 82, 84, 323, 324, 325, 326, 327)

$

$

Not available

11

Ariens 02215300

PUSH NUT, .25

$2.99

$

In Stock, Qty 8

0

12

Ariens 08322400

SG-TORS .120X.68X3.09

$7.99

$

Usually ships in 4-12 days

0

13

Ariens 01141000

DOOR PIN

$14.99

$

Usually ships in 4-12 days

0

14

Ariens 71102700

MULCH MASTER MULCHER ACCESSORY

$52.99

$

In Stock, only 2 left!

0

15

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 01138259

HINGE BASE

Note: (Models 81, 83)

$10.99

$

Usually ships in 4-12 days

0

17

Ariens 01155559

HINGE BASE WELDMENT

Note: (Models 75, 78, 79, 80, 82, 84, 321, 322, 323, 324, 325, 326, 327)

$

$

Not available

18

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$1.49

$

In Stock, Qty 7

0

20

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$1.49

$

In Stock, Qty 10

0

21

Ariens 01159300

WING - NUT

Note: (Models 75, 78, 79, 80, 82, 84, 321, 322, 323, 324, 325, 326, 327)

$

$

Not available

22

Ariens 01158800

DRIVE COVER

Note: (Models 75, 78, 79, 82, 84, 321, 322, 323, 324, 325, 326, 327)

$

$

Not available

23

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

Note: (Models 75, 78, 79, 82, 84, 321, 322, 323, 324, 325, 326, 327)

$7.99

$

Usually ships in 4-12 days

0

24

Ariens 06538100

NUT-WING #8-32 YWZC

Note: (Models 78, 325)

$7.49

$

Usually ships in 4-12 days

0

25

Ariens 01178500

BATTERY PLATE
(Superseded to 01178559)

Note: (Models 78, 325)

$51.99

$

Usually ships in 4-12 days

0

26

Ariens 01178600

U-BOLT

Note: (Models 78, 325)

$36.99

$

Usually ships in 4-12 days

0

27

Ariens 51104300

MOWER PAN W/DECALS SP/COMM
(Superseded to 51107500)

Note: (Models 75, 78, 79, 80,84, 321,322, 323, 324, 325, 326, 327)

$

$

Not available

27

Ariens 51105300

MOWER PAN W/DECALS SP

Note: (Model 82)

$

$

Not available

27

Ariens 51104200

MOWER PAN W/DECALS PUSH
(Superseded to 51107600)

Note: (Model 83)

$

$

Not available

27

Ariens 51105100

MOWER PAN W/DECALS PUSH

Note: (Model 81)

$

$

Not available

28

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: (Models 79, 81, 82, 83, 84, 321, 322, 323, 325, 326, 327)

$3.99

$

In Stock, Qty 14

0

29

Ariens 01153559

FRONT PANEL
(Superseded to 01183559)

Note: (Models 79, 81, 82, 83, 84, 321, 322, 323, 325, 326, 327)

$86.99

$

Usually ships in 4-12 days

0

30

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Models 79, 81, 82, 83, 84, 321, 322, 323, 325, 326, 327)

$2.49

$

In Stock, Qty 20+

0

31

Ariens 07507600

PLASTIC GROMMET

$1.49

$

In Stock, Qty 9

0

32

Ariens 01173700

CENTER BAFFLE

$48.99

$

Usually ships in 4-12 days

0

33

Ariens 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$2.99

$

Usually ships in 4-12 days

0

34

Ariens 01167600

SIDE DISCHARGE ASSEMBLY
(Superseded to 01180200)

$38.99

$

In Stock, Qty 5

0

35

Ariens 01136400

SIDE DISCHARGE COVER
(Superseded to 01180351)

Note: (Models 75, 78, 79, 80, 83, 84, 321, 322, 323, 324, 325, 326, 327)

$49.99

$

In Stock, only 2 left!

0

36

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (Models 75, 78, 79, 80, 83, 84, 321, 322, 323, 324, 325, 326, 327)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Models 75, 78, 79, 80, 83, 84, 321, 322, 323, 324, 325, 326, 327)

$2.49

$

In Stock, Qty 20+

0

38

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

Note: (Models 75, 78, 79, 80, 83, 84, 321, 322, 323, 324, 325, 326, 327)

$3.49

$

In Stock, Qty 20+

0

39

Ariens 06514900

NUT-PUSH .312

Note: (Models 75, 78, 79, 80, 83, 84, 321, 322, 323, 324, 325, 326, 327)

$1.49

$

In Stock, Qty 9

0
