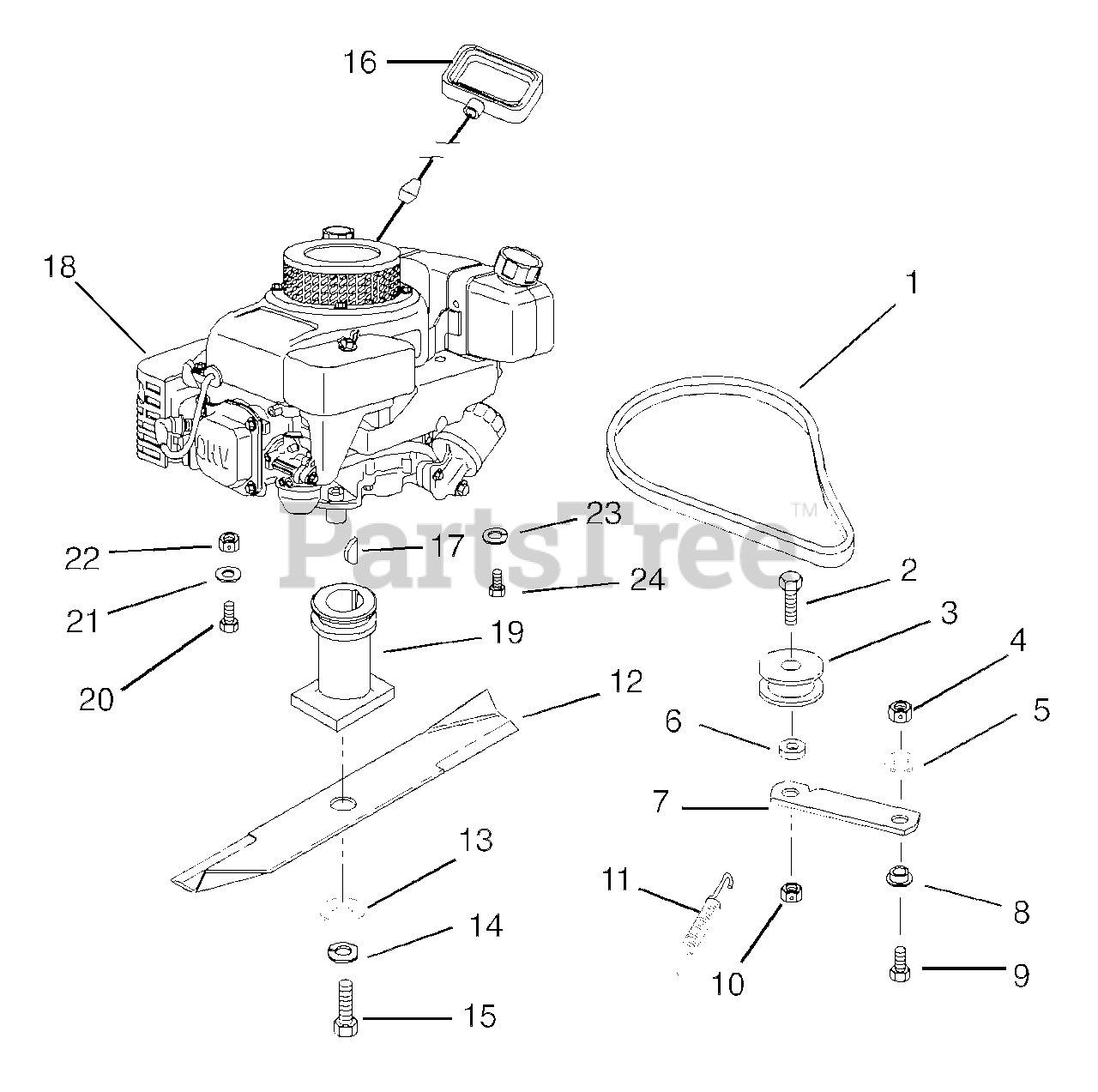

911085 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07217100

V-BELT, 3L-COGGED

$35.99

$

In Stock, Qty 20+

0

2

Gravely 05963800

BLT-HEX .44-14X1.25 GR5 YWZC

$2.99

$

In Stock, only 1 left!

0

3

Gravely 07313300

IDLER-FLAT 1.75 X .47

$36.99

$

In Stock, Qty 11

0

4

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 01142000

SPACER .52 X .45 X .34
(Superseded to 51108800)

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 01141200

IDLER ARM

$23.99

$

Usually ships in 4-12 days

0

8

Gravely 05515400

BSHG-FLG .325X.501X.250X1.120

$3.99

$

In Stock, Qty 8

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06536400

NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, only 4 left!

0

11

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 12

0

12

Gravely 01137051

BLADE LM 21 IN
(Superseded to 01137000)

$25.99

$

In Stock, Qty 20+

0

Gravely 01182400

BLADE, 21" MOWER TUNGSTEN
(Superseded to 01137000)

$25.99

$

In Stock, Qty 20+

0

13

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

14

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 2 left!

0

16

Gravely 01157100

HANDLE, RECOIL START

$8.49

$

In Stock, only 2 left!

0

17

Gravely 106750

KEY-WDRF .156X.625X.25 SAE 6
(Superseded to 06600900)

$2.49

$

In Stock, Qty 6

0

18

Gravely 08247700

ENGINE ROBIN 6HP. PR LUBE.

$

$

Not available

19

Gravely 01121700

BLADE ADAPTER

$92.99

$

Usually ships in 4-12 days

0

20

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

21

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

24

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0
