911085 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Friction Wheel Drive Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

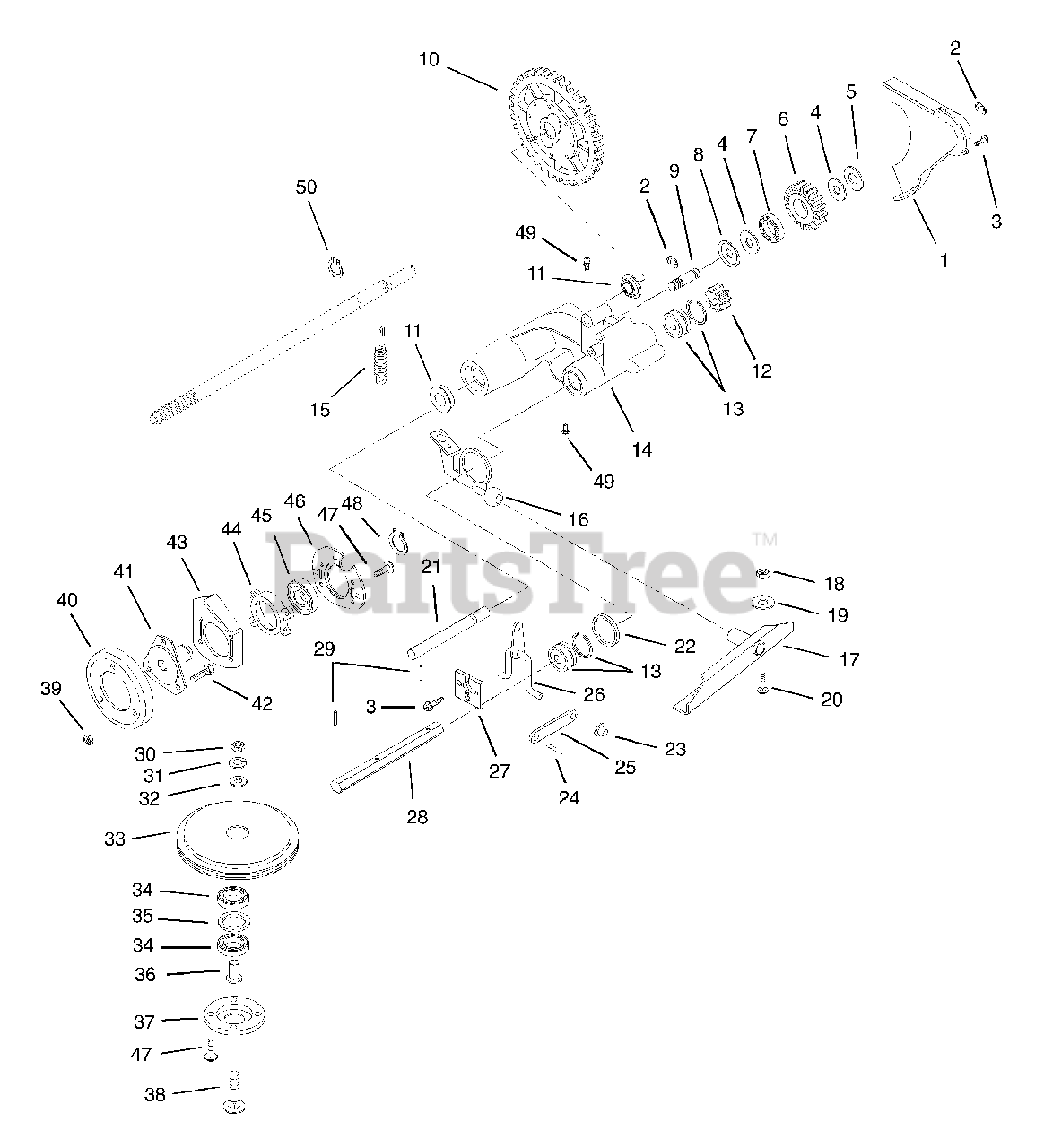

Friction Wheel Drive Parts Diagram

  • Title

1

Gravely 01121051

COVER, GEAR

$39.99

$

Usually ships in 4-12 days

0

2

Gravely 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 20+

0

3

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

4

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 01131700

IDLER GEAR

$52.99

$

Usually ships in 4-12 days

0

7

Gravely 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

8

Gravely 01135100

RETAINER

$13.99

$

In Stock, only 2 left!

0

9

Gravely 01139700

IDLER SHAFT

$31.99

$

In Stock, only 2 left!

0

10

Gravely 51102400

DIFFERENTIAL ASSEMBLY

$

$

Not available

11

Gravely 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

$18.99

$

In Stock, Qty 6

0

12

Gravely 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

13

Gravely 05413700

BRG-BALL .562X1.375X.437

$33.99

$

Usually ships in 4-12 days

0

14

Gravely 01140600

DRIVE MOUNT

$

$

Not available

15

Gravely 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$6.49

$

In Stock, only 2 left!

0

16

Gravely 01137900

DRIVE ACTUATOR WELDMENT
(Superseded to 01245700)

$40.99

$

Usually ships in 4-12 days

0

17

Gravely 01161953

CHANNEL, PIVOT WELDMENT
(Superseded to 01161951)

$50.99

$

Usually ships in 4-12 days

0

18

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 01125100

ROD - GUIDE

$74.99

$

Usually ships in 4-12 days

0

22

Gravely 06421600

WSHR-FL-STL 1.390X2.00X.020 PL

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 02215300

PUSH NUT, .25

$2.49

$

In Stock, Qty 11

0

24

Gravely 05804800

PIN-ROLL .125X.63

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 01124200

SHIFT LINK

$7.99

$

In Stock, Qty 5

0

26

Gravely 01123600

SHIFT ARM WELDMENT

$23.99

$

Usually ships in 4-12 days

0

27

Gravely 01125000

RETAINER PLATE

$8.99

$

Usually ships in 4-12 days

0

28

Gravely 01125700

HEX SHAFT
(Superseded to 01240100)

$69.99

$

In Stock, only 1 left!

0

29

Gravely 05803500

PIN-ROLL .125X.50

$0.99

$

In Stock, Qty 10

0

30

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

31

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

32

Gravely 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 01127300

FRICTION SHEAVE

$

$

Not available

34

Gravely 05435100

BRG-BALL .625X1.375X.43

$16.99

$

In Stock, Qty 20+

0

35

Gravely 06420200

WSHR-FL-STL 1.062X1.344X.032PL

$4.49

$

In Stock, only 2 left!

0

36

Gravely 01127400

SPINDLE - BEARING

$19.99

$

In Stock, only 2 left!

0

37

Gravely 01127500

RETAINER - BEARING

$19.99

$

In Stock, only 1 left!

0

38

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 15

0

39

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 03240700

DISC, FRICTION - 716 MAT'L
(Superseded to 03248300)

$41.99

$

In Stock, Qty 18

0

41

Gravely 01133500

FRICTION WHEEL HUB

$62.99

$

In Stock, only 1 left!

0

42

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

43

Gravely 01132700

BEARING PLATE
(Superseded to 00174500)

$14.99

$

In Stock, only 1 left!

0

44

Gravely 01131800

BEARING RETAINER

$21.99

$

Usually ships in 4-12 days

0

45

Gravely 05416000

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05400722)

$19.99

$

In Stock, Qty 20+

0

46

Gravely 01119200

BEARING RETAINER

$7.99

$

Usually ships in 4-12 days

0

47

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

48

Gravely 05706200

RG-RTNG-EXT 1.00X.042

$2.99

$

In Stock, Qty 8

0

49

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

50

Gravely 05701900

RG-RTNG-EXT .625X.035
(Superseded to 05711900)

$1.49

$

In Stock, Qty 15

0

Gravely 51105600

LM BEARING SERVICE KIT

Note: NOT AVAILABLE - ORDER PARTS INDIVIDUALLY

$

$

Not available
