911089 (LM 21 SAL) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Briggs & Stratton (SN: 000101 & Above) Frame, Handlebar And Controls Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Briggs & Stratton

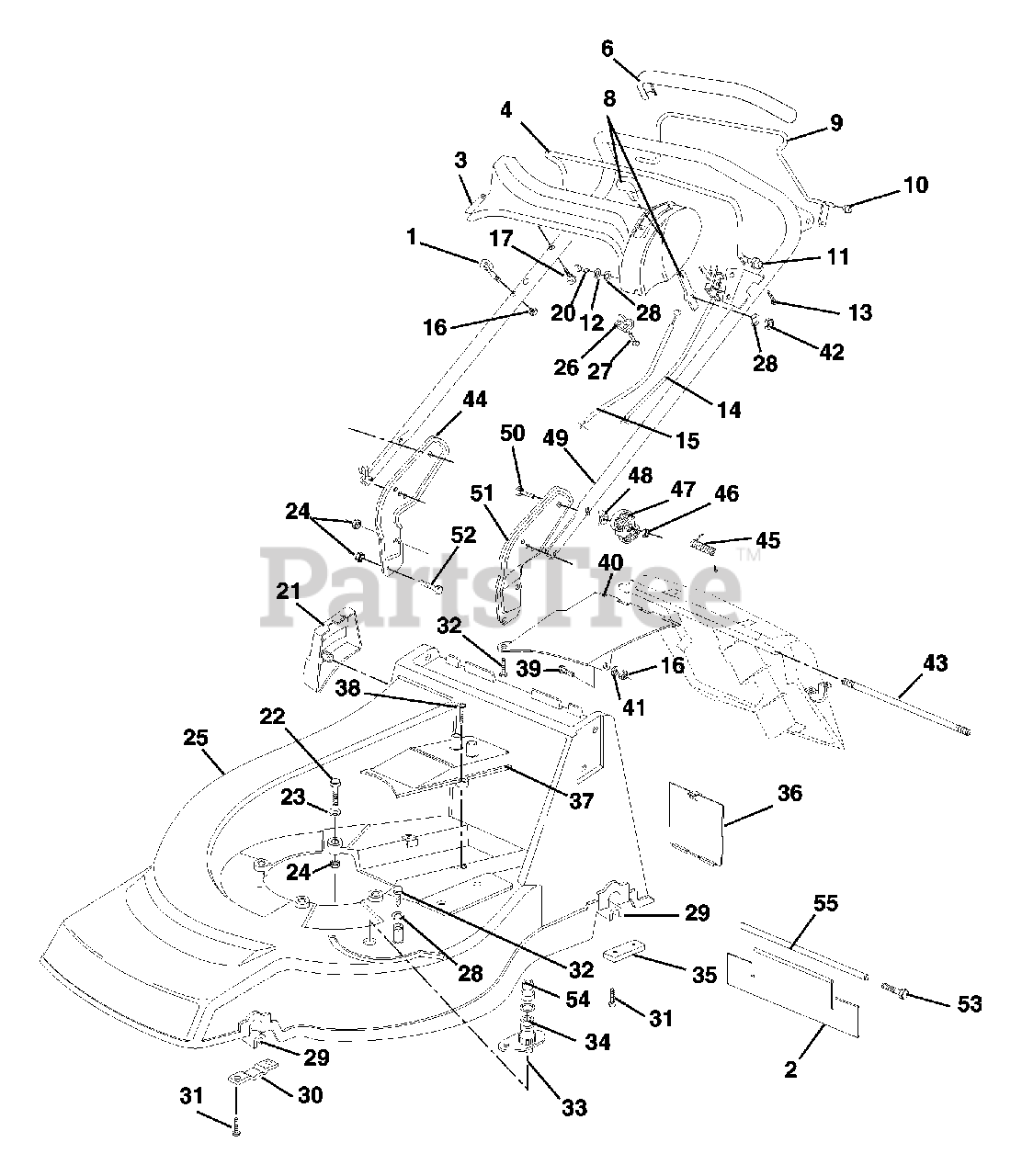

Frame, Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01464600

GUIDE, ROPE

$

$

Not available

2

Ariens 07522300

REAR PROTECTIVE GUARD, S.P.

$45.99

$

In Stock, only 2 left!

0

3

Ariens 01463900

DASHBOARD - BLACK

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 01463600

BAIL, ENGINE

$

$

Not available

6

Ariens 01463700

GRIP, HAND BLACK

$

$

Not available

8

Ariens 01465300

LEVER, THROTTLE W/KNOB

$8.99

$

Usually ships in 4-12 days

0

9

Ariens 01463800

BAIL, TRACTION

$

$

Not available

10

Ariens 01463500

BUSHING

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 01463400

BUSHING

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 01464300

WASHER M6

$

$

Not available

13

Ariens 01463100

SCREW 4.8X38

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 01462800

CABLE, THROTTLE

$34.99

$

In Stock, only 1 left!

0

15

Ariens 01462700

CABLE, MOTOR BRAKE

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 01462000

NUT M5
(Superseded to 06543000)

$

$

Not available

17

Ariens 01464500

SCREW

$3.49

$

Usually ships in 4-12 days

0

20

Ariens 01464200

SCREW M6X25

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 01462200

PROTECTION

$

$

Not available

22

Ariens 01471500

SCREW M8X60

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 01471600

WASHER M8 8.4X16X1.6

$

$

Not available

24

Ariens 01460400

NUT M8

$

$

Not available

25

Ariens 51401000

21" DECK W/DECALS IMPORT

$

$

Not available

26

Ariens 01464400

PLATE, DASHBOARD CABLE

$

$

Not available

27

Ariens 01462900

SCREW 3.5X16

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 01463200

WASHER M6 6.6X18X2

$3.49

$

Usually ships in 4-12 days

0

29

Ariens 01460500

BRASS, FRONT

$

$

Not available

30

Ariens 01460700

PLATE, FRONT AXLE

$

$

Not available

31

Ariens 01460800

SCREW 5.5X19

$

$

Not available

32

Ariens 01460900

SCREW 5.5X16

$

$

Not available

33

Ariens 01461000

WASHING CONNECTION

$

$

Not available

34

Ariens 01461100

O-RING

$

$

Not available

35

Ariens 01461200

PLATE, REAR AXLE (SP)

Note: (Self Propelled)

$

$

Not available

36

Ariens 01461400

DOOR, INSPECTION

$

$

Not available

37

Ariens 01461500

PROTECTION, BELT

$

$

Not available

38

Ariens 01461600

SCREW 5.5X19

$

$

Not available

39

Ariens 01461700

SCREW M5X12

$

$

Not available

40

Ariens 01461800

CONVEYOR

$20.99

$

Usually ships in 4-12 days

0

41

Ariens 01461900

WASHER M5 5.5X15X1.6

$

$

Not available

42

Ariens 01463300

NUT M6

$

$

Not available

43

Ariens 01462100

PIN

$

$

Not available

44

Ariens 01464900

BRACKET, HANDLEBAR RIGHT

$29.99

$

Usually ships in 4-12 days

0

45

Ariens 01462300

SPRING

$5.99

$

Usually ships in 4-12 days

0

46

Ariens 01462400

NUT M8
(Superseded to 06538600)

$1.99

$

Usually ships in 4-12 days

0

47

Ariens 01462500

KNOB

$5.99

$

Usually ships in 4-12 days

0

48

Ariens 01462600

WASHER

$3.49

$

In Stock, only 1 left!

0

49

Ariens 01472900

HANDLEBAR, SELF-PROP

$

$

Not available

50

Ariens 01464700

SCREW M8X55

$3.49

$

Usually ships in 4-12 days

0

51

Ariens 01464800

BRACKET, HANDLEBAR LEFT

$34.99

$

Usually ships in 4-12 days

0

52

Ariens 01465000

SCREW M8X25

$3.49

$

Usually ships in 4-12 days

0

53

Ariens 01472600

SCREW

$

$

Not available

54

Coupling, Hose

Note: (Not Supplied)

$

$

Not available

55

Ariens 01472500

ROD, TRIALING SHIELD

$

$

Not available
