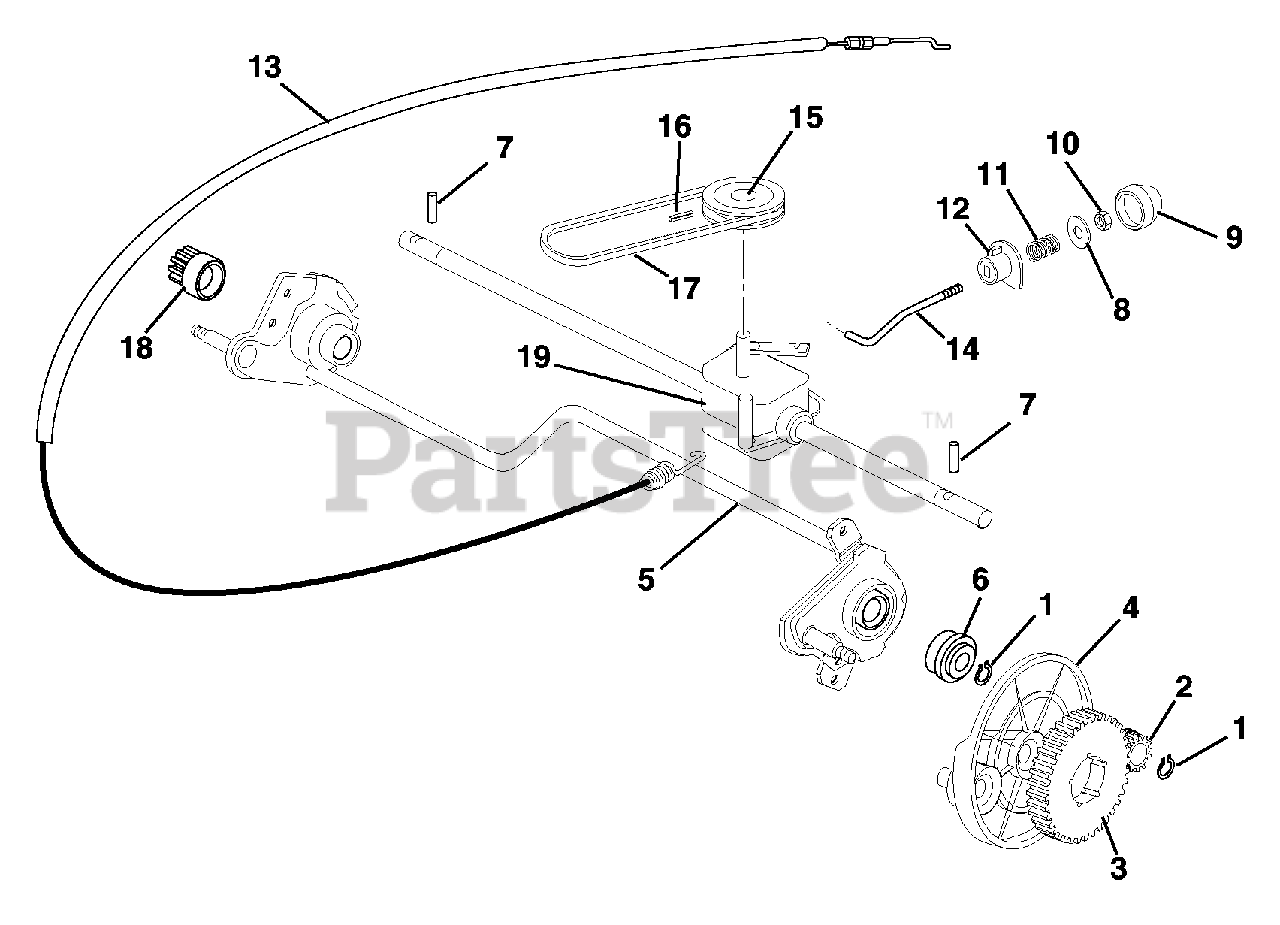

911089 (LM 21 SAL) - Ariens 21 " Self-Propelled Walk-Behind Mower, 6hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (6) > Rear Wheel Drive

  • Title
01469500

1

SNAP RING

Part# 01469500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01469600

2

PINION, LEFT

Part# 01469600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

01469700

3

GEAR, RING

Part# 01469700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

01469800

4

PROTECTION, WHEEL

Part# 01469800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

01469900

5

AXLE, REAR WHEEL

Part# 01469900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $74.85

01470000

6

BEARING

Part# 01470000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

01470100

7

PIN

Part# 01470100

OEM Warranty Repair Part for Ariens

Not available

01470200

8

WASHER

Part# 01470200

OEM Warranty Repair Part for Ariens

Not available

01470300

9

CAP

Part# 01470300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01463300

10

NUT M6

Part# 01463300

OEM Warranty Repair Part for Ariens

Not available

01470400

11

SPRING

Part# 01470400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01470500

12

BUSHING

Part# 01470500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01470700

13

CABLE, REAR DRIVE

Part# 01470700

OEM Warranty Repair Part for Ariens

Not available

01470600

14

ROD, ADJUSTMENT

Part# 01470600

Note: (Included with 19)

OEM Warranty Repair Part for Ariens

Not available

01470800

15

PULLEY

Part# 01470800

Note: (Included with 19)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

01470900

16

PIN

Part# 01470900

Note: (Included with 19)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01471000

17

BELT, Z33

Part# 01471000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $23.42

01471100

18

PINION, RIGHT

Part# 01471100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

01471200

19

GEAR BOX

Part# 01471200

Note: (Includes 14, 15 & 16)

OEM Warranty Repair Part for Ariens

Not available
