911089 (LM 21 SAL) - Ariens 21 " Self-Propelled Walk-Behind Mower, 6hp Briggs & Stratton (SN: 000101 & Above)

21 " Self-Propelled Walk-Behind Mower, 6hp Briggs & Stratton

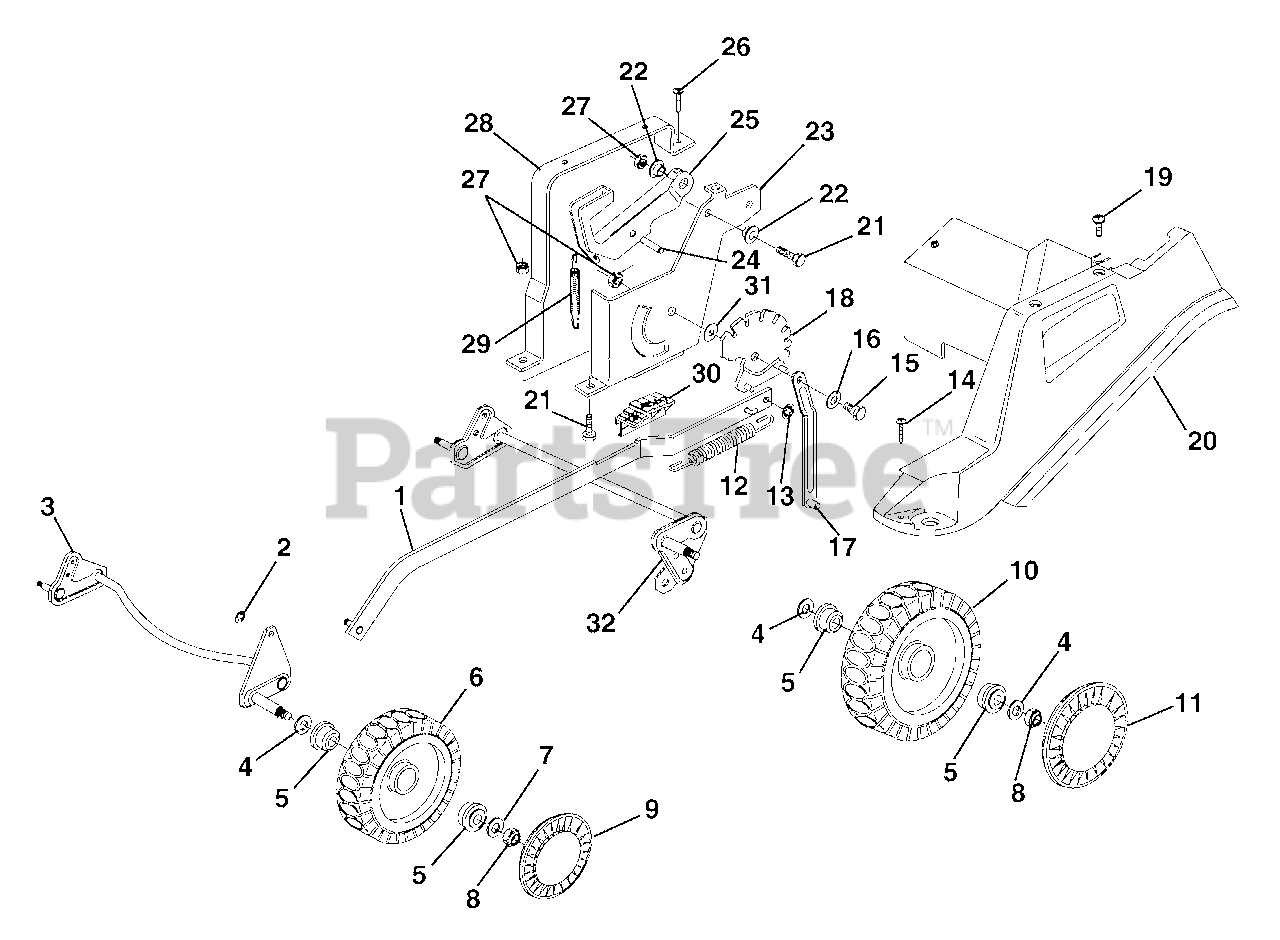

911089 (LM 21 SAL) - Ariens 21 " Self-Propelled Walk-Behind Mower, 6hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (6) > Wheels And Height Adjustment

  • Title
01466000

1

ROD, HEIGHT ADJUSTMENT CONTROL

Part# 01466000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

01466100

2

RING, SNAP

Part# 01466100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01466200

3

AXLE, FRONT WHEEL

Part# 01466200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.84

01466300

4

WASHER, ELASTIC M12

Part# 01466300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01466400

5

BEARING

Part# 01466400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

01466500

6

WHEEL, FRONT KNOBBLY 170

Part# 01466500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $32.37

01471600

7

WASHER M8 8.4X16X1.6

Part# 01471600

OEM Warranty Repair Part for Ariens

Not available

01460400

8

NUT M8

Part# 01460400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01466600

9

HUB, CAP FRONT GREY

Part# 01466600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.42

01466800

10

WHEEL, REAR KNOBBLY 210

Part# 01466800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $46.90

01466700

11

HUB, CAP REAR GREY

Part# 01466700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01467000

12

SPRING

Part# 01467000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

01466900

13

RING, ELASTIC

Part# 01466900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01467900

14

SCREW 5.5X16

Part# 01467900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01467800

15

PIN, FULCRUM

Part# 01467800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01467700

16

WASHER

Part# 01467700

OEM Warranty Repair Part for Ariens

Not available

01467600

17

ROD, REAR WHEEL AXLE

Part# 01467600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

01467500

18

SECTOR, HEIGHT ADJUSTMENT

Part# 01467500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

01468000

19

SCREW 5.5X13

Part# 01468000

OEM Warranty Repair Part for Ariens

Not available

01468100

20

DECK, ADJUSTMENT

Part# 01468100

OEM Warranty Repair Part for Ariens

Not available

01465000

21

SCREW M8X25

Part# 01465000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01468200

22

BUSHING

Part# 01468200

OEM Warranty Repair Part for Ariens

Not available

01468300

23

SUPPORT, HEIGHT ADJUSTMENT

Part# 01468300

OEM Warranty Repair Part for Ariens

Not available

01468400

24

PIN 6X28

Part# 01468400

OEM Warranty Repair Part for Ariens

Not available

01468500

25

HANDLE

Part# 01468500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

01460900

26

SCREW 5.5X16

Part# 01460900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01467300

27

NUT M8 FLANGE

Part# 01467300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01467200

28

SUPPORT, HANDLE

Part# 01467200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

01467100

29

SPRING

Part# 01467100

OEM Warranty Repair Part for Ariens

Not available

01467400

30

PLATE, CUTTING POSITION

Part# 01467400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01468600

31

WASHER

Part# 01468600

OEM Warranty Repair Part for Ariens

Not available

32

NOT USED ON THIS MODEL

Part#

Not available
