911091 (LM 21 S3AL) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Briggs & Stratton (SN: 000101 & Above) Rear Wheel Drive Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Briggs & Stratton

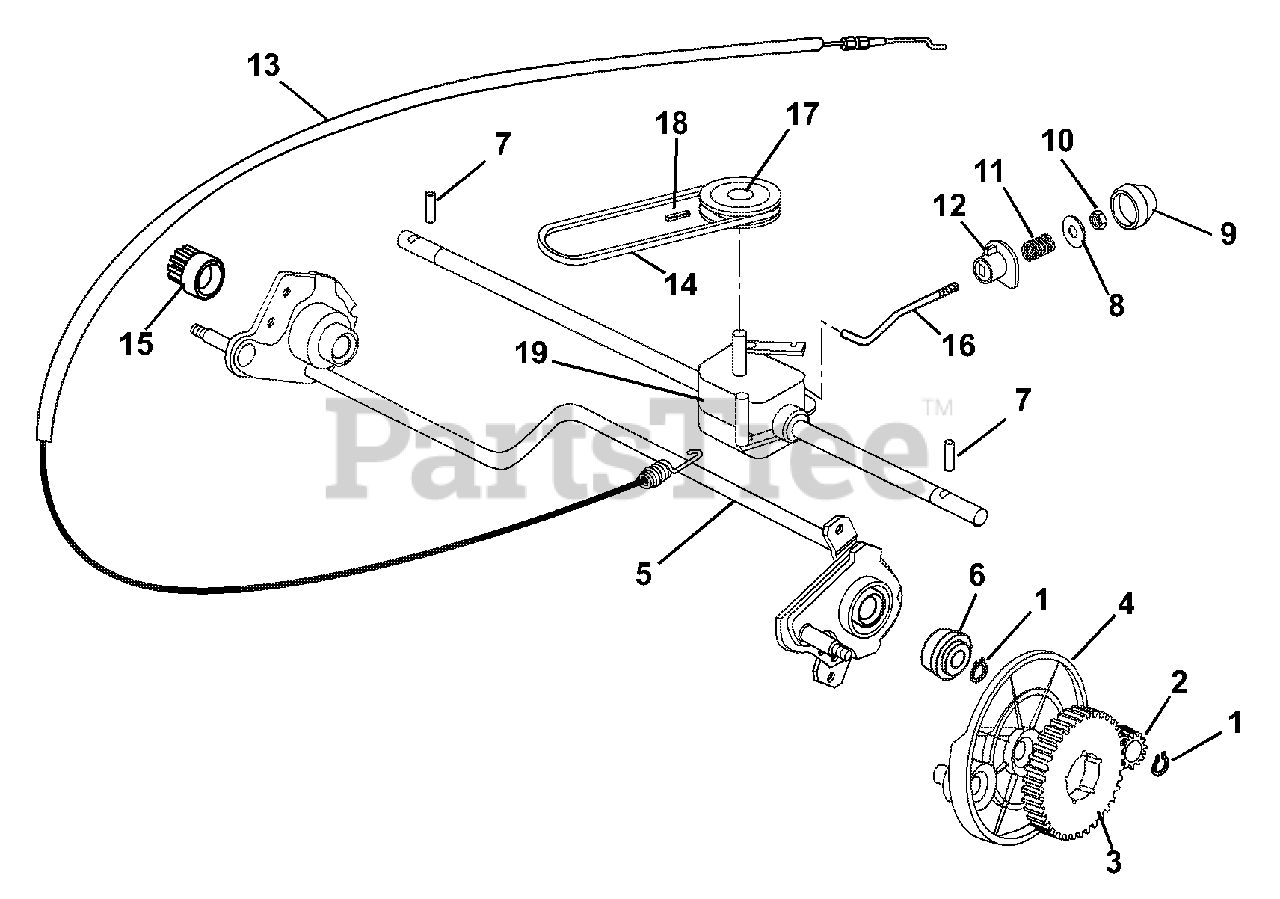

Rear Wheel Drive Parts Diagram

  • Title

1

Ariens 01469500

SNAP RING

$

$

Not available

2

Ariens 01469600

PINION, LEFT

$

$

Not available

3

Ariens 01469700

GEAR, RING

$

$

Not available

4

Ariens 01469800

PROTECTION, WHEEL

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 01469900

AXLE, REAR WHEEL

$

$

Not available

6

Ariens 01470000

BEARING

$

$

Not available

7

Ariens 01470100

PIN

$

$

Not available

8

Ariens 01470200

WASHER

$

$

Not available

9

Ariens 01470300

CAP

$

$

Not available

10

Ariens 01463300

NUT M6

$

$

Not available

11

Ariens 01470400

SPRING

$

$

Not available

12

Ariens 01470500

BUSHING

$

$

Not available

13

Ariens 01465200

CABLE, REAR DRIVE 3SPD IMPORT

Note: (091, 097)

$54.99

$

Usually ships in 4-12 days

0

14

Ariens 01465700

V-BELT, 3 SPEED ALUM DECK

Note: (091, 097)

$56.99

$

Usually ships in 4-12 days

0

15

Ariens 01471100

PINION, RIGHT

$

$

Not available

16

Ariens 01464100

ROD, ADJUSTMENT LM 3SP IMPORT

Note: (Included with 19)(091, 097)

$

$

Not available

17

Ariens 01465400

PULLEY, 3 SPEED ALUM DECK

Note: (Included with 19) (091, 097)

$

$

Not available

18

Ariens 01470900

PIN

Note: (Included with 19)

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 51401200

TRANSMISSION, W/PULLEY & PIN

Note: (Includes 16, 17 & 18) (091)

$

$

Not available
