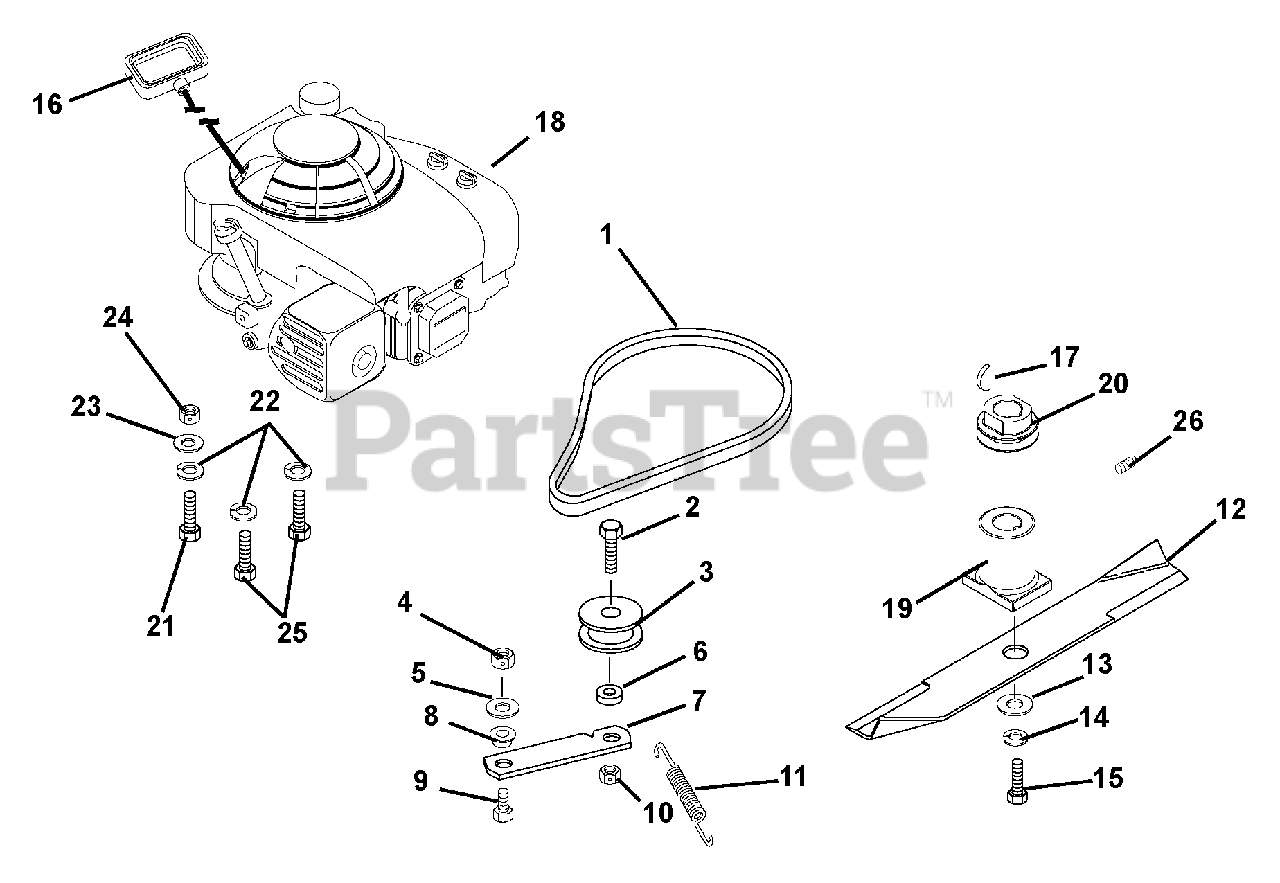

911094 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda (SN: 000101 - 000921) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07217100

V-Belt 3L Section

$31.99

$

In Stock, Qty 14

0

2

Gravely 05962800

Bolt, Hex .44-14 x 1.50 Grade 5
(Superseded to 05901633)

$3.49

$

In Stock, only 1 left!

0

3

Gravely 07313300

Idler, Flat 1.75 x .47

$35.99

$

In Stock, Qty 20+

0

4

Gravely 06529800

Nut, Locking Center .31 -18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

6

Gravely 05533300

Bushing, Sleeve .47 x .75 x .43

$3.99

$

In Stock, only 3 left!

0

7

Gravely 01141200

Idler Arm

$22.99

$

In Stock, only 1 left!

0

8

Gravely 05515400

Bushing, Flange .325 x .50 x .25 x 1.12

$3.99

$

In Stock, only 4 left!

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

10

Gravely 06536400

Nut, Locking Center .44-14
(Superseded to 06500930)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 08321100

Spring, Tension .043 x .44 x 3.31

$6.49

$

In Stock, Qty 19

0

12

Gravely 01137000

Blade, 21" Mower

$23.99

$

In Stock, Qty 16

0

12

Gravely 01182400

Blade, 21" Mower Tungsten
(Superseded to 01137000)

$23.99

$

In Stock, Qty 16

0

13

Gravely 06441700

Washer, Flat Steel .390 x 1.50 x .125

$3.99

$

In Stock, only 3 left!

0

14

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

15

Gravely 05976600

Bolt, Hex .38-24 x 2.00 Grade 8

$2.99

$

In Stock, Qty 8

0

16

Gravely 01157100

Recoil Start Handle

$7.99

$

In Stock, only 2 left!

0

17

Gravely 06600900

Key, Woodruff .156 x .625 x .25 SAE #6

$2.49

$

In Stock, only 2 left!

0

18

Gravely 08270500

Engine, Honda 5.5 HP OHV

$

$

Not available

19

Gravely 09733300

Adapter, Blade Hub

$38.99

$

Usually ships in 4-12 days

0

20

Gravely 09733400

Pulley, Steel Drive

$103.99

$

Usually ships in 4-12 days

0

21

Gravely 05963500

Bolt, Hex .31-24 x 1.50 Grade 5

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

24

Gravely 06529500

Nut, Hex .312-24
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 05963600

Bolt Hex .31-24 x 1.00 Grade 5

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 06005500

Screw, Set .31-18 x .38 Socket Head

$2.99

$

In Stock, Qty 17

0

Gravely 08270501

Air Filter

Note: NS

$

$

Not available

Gravely 08270502

Spark Plug

Note: NS

$4.99

$

Usually ships in 4-12 days

0
