911094 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda (SN: 000101 - 000921) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda

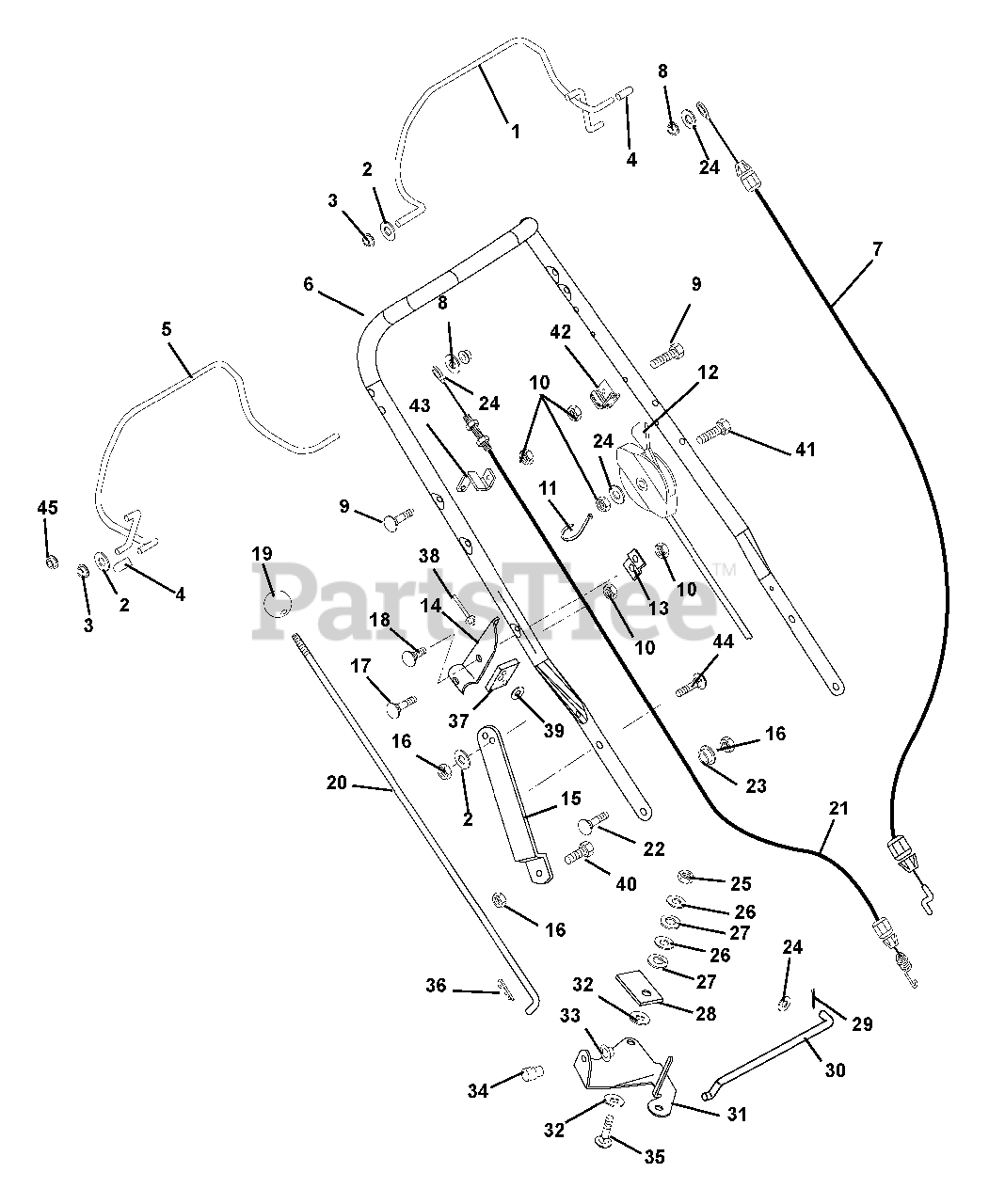

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 01245100

Engine Bail Weldment
(Superseded to 01245151)

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 06437200

Washer, Flat Steel .32 x .44 x .44 x .56
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

3

Gravely 05514500

Bushing, Flange .325 x .688 x .56

$3.99

$

In Stock, Qty 20+

0

4

Gravely 07517000

Cap, Vinyl .25 I.D.

$3.49

$

In Stock, Qty 11

0

5

Gravely 01245200

Traction Bail Weldment
(Superseded to 01245251)

$75.99

$

In Stock, only 2 left!

0

6

Gravely 01245300

Handlebar
(Superseded to 01245351)

$

$

Not available

7

Gravely 06949700

Cable, Engine

$34.99

$

In Stock, only 1 left!

0

8

Gravely 05717600

Ring, Retaining External .25 x .01

$0.99

$

In Stock, Qty 17

0

9

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 2 left!

0

10

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

12

Gravely 06950300

Control, Throttle - Honda

$65.99

$

Usually ships in 4-12 days

0

13

Gravely 01141851

Brace, Speed Control

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 01137451

Bracket, Speed Control
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

15

Gravely 01158651

Handlebar Bracket

$20.99

$

Usually ships in 4-12 days

0

16

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06222300

Bolt, Round Head Square Neck .25-20 x 1.38
(Superseded to 06200331)

$1.49

$

In Stock, Qty 11

0

18

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

19

Gravely 07515900

Knob

$21.99

$

In Stock, only 1 left!

0

20

Gravely 01140800

Rod, Speed Control

$42.99

$

Usually ships in 4-12 days

0

21

Gravely 06900013

Traction Cable

$58.99

$

In Stock, only 4 left!

0

22

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

23

Gravely 01305900

Shoulder Spacer

$2.49

$

In Stock, Qty 16

0

24

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

25

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06306500

Washer, Lock .375 x .115 Heavy
(Superseded to 06300120)

$3.49

$

In Stock, Qty 10

0

28

Gravely 01154800

Pressure Flange

$7.99

$

Usually ships in 4-12 days

0

29

Gravely 06712400

Pin, Cotter .06 x .50

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 01126100

Shift Link

$21.99

$

Usually ships in 4-12 days

0

31

Gravely 01123900

Bell Crank, Speed Control
(Superseded to 04756800)

$21.99

$

Usually ships in 4-12 days

0

32

Gravely 01123800

Friction Washer

$3.99

$

In Stock, only 3 left!

0

33

Gravely 036903

Cap, Rod .375
(Superseded to 01019800)

$2.99

$

In Stock, Qty 7

0

34

Gravely 01139800

Swivel

$16.99

$

Usually ships in 4-12 days

0

35

Gravely 06222200

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200236)

$2.49

$

In Stock, Qty 10

0

36

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 17

0

37

Gravely 01173800

Support Pad
(Superseded to 04760400)

$3.49

$

Usually ships in 4-12 days

0

38

Gravely 06815700

Rivet .187 x .575

$1.49

$

In Stock, only 2 left!

0

39

Gravely 06442700

Washer, Flat Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

40

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

41

Gravely 05961600

Bolt-Hex .25-20 x 2.50 Grade 5

$2.49

$

In Stock, only 1 left!

0

42

Gravely 01245600

Anchor, WBLM Engine Cable
(Superseded to 01245651)

$12.99

$

In Stock, only 1 left!

0

43

Gravely 01245400

Anchor Cable
(Superseded to 01245451)

$28.99

$

Usually ships in 4-12 days

0

44

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

45

Gravely 07008200

Push Nut .312

$2.49

$

In Stock, Qty 20+

0
