911094 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda (SN: 000101 - 000921) Mower Pan And Bag Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda

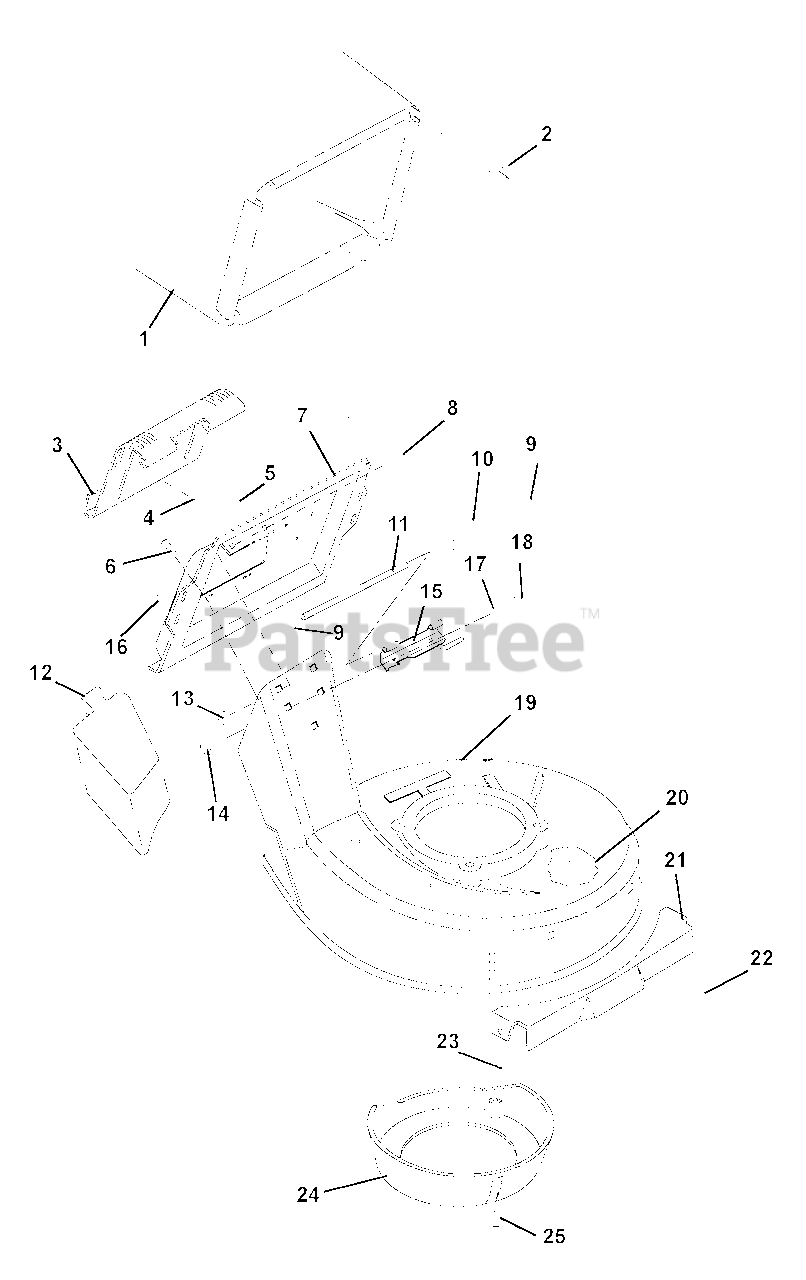

Mower Pan And Bag Parts Diagram

  • Title

1

Gravely 01180500

Bag, Consumer Black

$116.99

$

In Stock, only 1 left!

0

2

Gravely 01241800

Frame, Bagger

$

$

Not available

3

Gravely 01136553

Door, Catcher Plate

$

$

Not available

4

Gravely 07516000

Button Bumper

$1.99

$

In Stock, Qty 17

0

5

Gravely 07511800

Bumper

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 07414900

Screw, Tapping 10-24 x .38 Pan Head

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 01177753

Plate, Catcher

$

$

Not available

8

Gravely 06203900

Bolt, Round Head Square Neck .25-20 x .38

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02215300

Nut, Push

$1.99

$

In Stock, Qty 16

0

10

Gravely 08322400

Spring, Torsion .120 x .68 x 3.09

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 01141000

Pin, Door

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 71102700

Mulch Master Mulcher Accessory

$51.99

$

In Stock, only 4 left!

0

13

Gravely 06530100

Nut, Locking Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

14

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 01139953

Base, Hinge

$

$

Not available

16

Gravely 06530100

Nut, Locking Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

17

Gravely 06308000

Washer, Locking .25 x .077

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

19

Gravely 51107100

Mower Pan Head with Decals - Self-Propelled

$

$

Not available

20

Gravely 06222000

Bolt, Round Head Square Neck .31-18 x .50 Grade 5
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

21

Gravely 01183553

Front Panel

$79.99

$

Usually ships in 4-12 days

0

22

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

23

Gravely 039149

Grommet, Plastic
(Superseded to 07507600)

$0.99

$

In Stock, Qty 10

0

24

Gravely 01173700

Baffle, Center

$45.99

$

Usually ships in 4-12 days

0

25

Gravely 07415000

Screw, Tapping 10-16 x .62 Hex Washer Head

$1.99

$

Usually ships in 4-12 days

0
