911095 (PRO 21 CH) - Gravely 21" Commercial Push Walk-Behind Mower, 5.5hp Honda (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Commercial Push Walk-Behind Mower, 5.5hp Honda

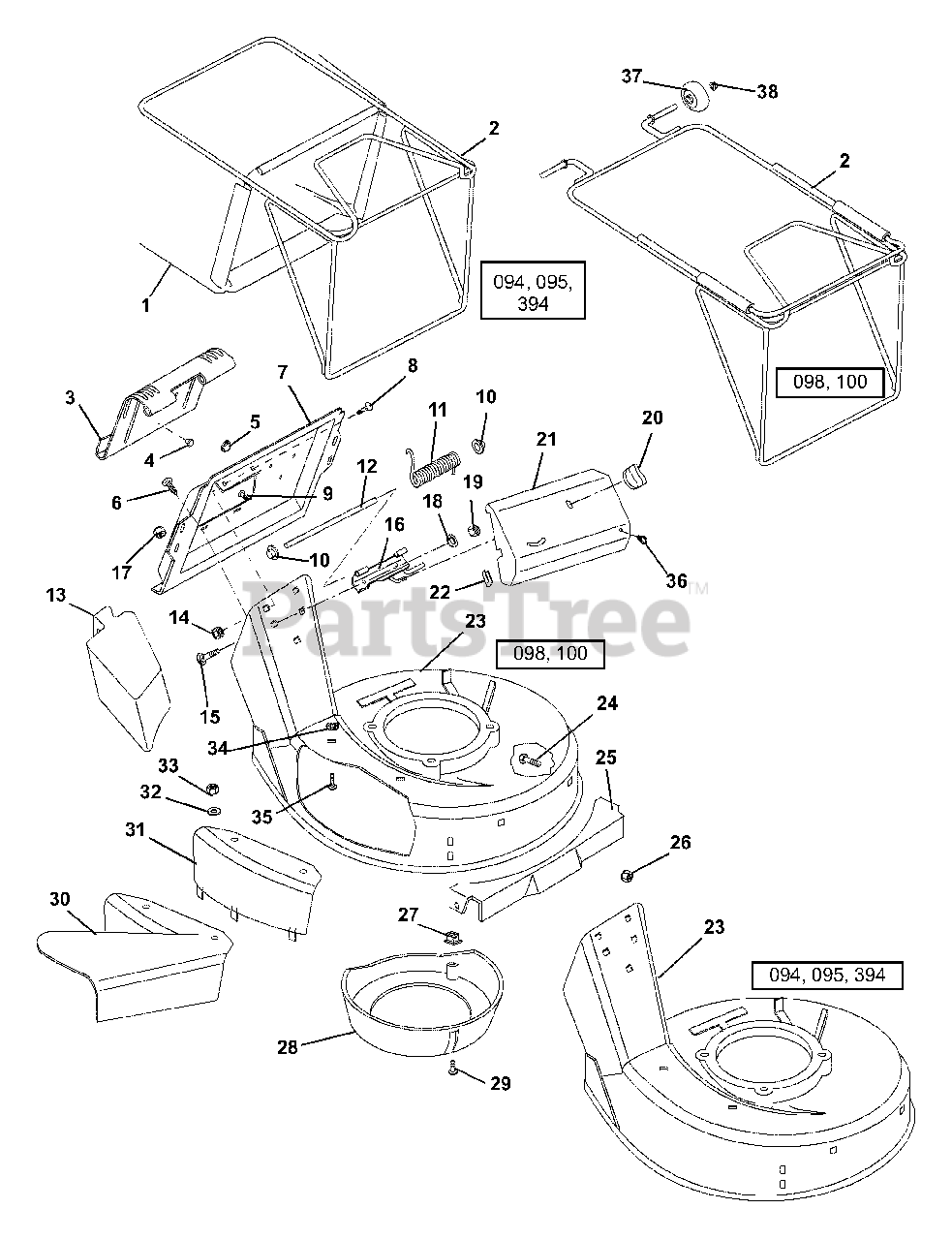

Mower Pan And Bag Parts Diagram

  • Title

1

Gravely 01180500

BAG, CONSUMER BLACK 15 OZ/YD2

Note: (094, 095, 394)

$118.99

$

In Stock, only 2 left!

0

Gravely 01241900

BAG, BAG-N-DRAG
(Superseded to 51123000)

Note: (98, 100)

$

$

Not available

2

Gravely 01241800

FRAME, WBLM BAGGER

Note: (094, 095, 394)

$

$

Not available

Gravely 01241100

FRAME, BAG-N-DRAG
(Superseded to 51123000)

Note: (098, 100)

$

$

Not available

3

Gravely 01136553

CATCHER PLATE DOOR

$

$

Not available

4

Gravely 07516000

BUTTON BUMPER

$1.49

$

In Stock, Qty 17

0

5

Gravely 07511800

BUMPER

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 01177753

PLATE, CATCHER

$

$

Not available

8

Gravely 06203900

BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

Note: (098, 100)

$2.49

$

In Stock, Qty 12

0

10

Gravely 02215300

PUSH NUT, .25

$2.49

$

In Stock, Qty 11

0

11

Gravely 08322400

SG-TORS .120X.68X3.09

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 01141000

DOOR PIN

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 71102700

MULCH MASTER MULCHER ACCESSORY

$52.99

$

In Stock, only 2 left!

0

14

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

15

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 01155553

HINGE BASE WELDEMENT

Note: (098, 100)

$38.99

$

Usually ships in 4-12 days

0

Gravely 01138253

HINGE BASE

Note: (095)

$9.49

$

Usually ships in 4-12 days

0

Gravely 01139953

HINGE PLATE WELDMENT

Note: (094, 394)

$

$

Not available

17

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

18

Gravely 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

In Stock, Qty 7

0

19

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

20

Gravely 01159300

WING - NUT

Note: (098, 100)

$

$

Not available

21

Gravely 01158853

COVER, DRIVE

Note: (098, 100)

$121.99

$

Usually ships in 4-12 days

0

22

Gravely 01155400

TRIM BUMPER
(Superseded to 01177300)

Note: (098, 100)

$7.49

$

Usually ships in 4-12 days

0

23

Gravely 51107100

MOWER PAN W/DECALS SP/COM

Note: (094, 394)

$

$

Not available

Gravely 51109200

MOWER PAN W/DECALS PUSH/COM

Note: (095)

$

$

Not available

Gravely 51107500

MOWER PAN HEAD W/SFTYDECALS SP

Note: (098, 100)

$

$

Not available

24

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$3.49

$

In Stock, only 4 left!

0

25

Gravely 01183553

PANEL-FRONT

$81.99

$

Usually ships in 4-12 days

0

26

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 039149

PLASTIC GROMMET
(Superseded to 07507600)

$0.99

$

In Stock, Qty 9

0

28

Gravely 01173700

CENTER BAFFLE

$46.99

$

Usually ships in 4-12 days

0

29

Gravely 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 01180200

SIDE DISCHARGE ASSEMBLY

Note: (098, 100)

$36.99

$

In Stock, Qty 6

0

31

Gravely 01180351

COVER, SIDE DISCHARGE

Note: (098, 100)

$46.99

$

In Stock, only 2 left!

0

32

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (098, 100)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (098, 100)

$1.49

$

In Stock, Qty 5

0

34

Gravely 040380

NUT-PUSH .312
(Superseded to 06514900)

Note: (098, 100)

$0.99

$

In Stock, Qty 9

0

35

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

Note: (098, 100)

$2.99

$

In Stock, Qty 13

0

36

Gravely 01166500

SNAP-IN CLIP

Note: (098, 100)

$

$

Not available

37

Gravely 02745400

ROLLER

$16.99

$

In Stock, Qty 20+

0

38

Gravely 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, only 3 left!

0
