911096 (LM 21 AL) - Ariens 21" Push Walk-Behind Mower, 5.5hp Honda (SN: 000101 & Above) Wheels And Height Adjustment Parts Diagram

21" Push Walk-Behind Mower, 5.5hp Honda

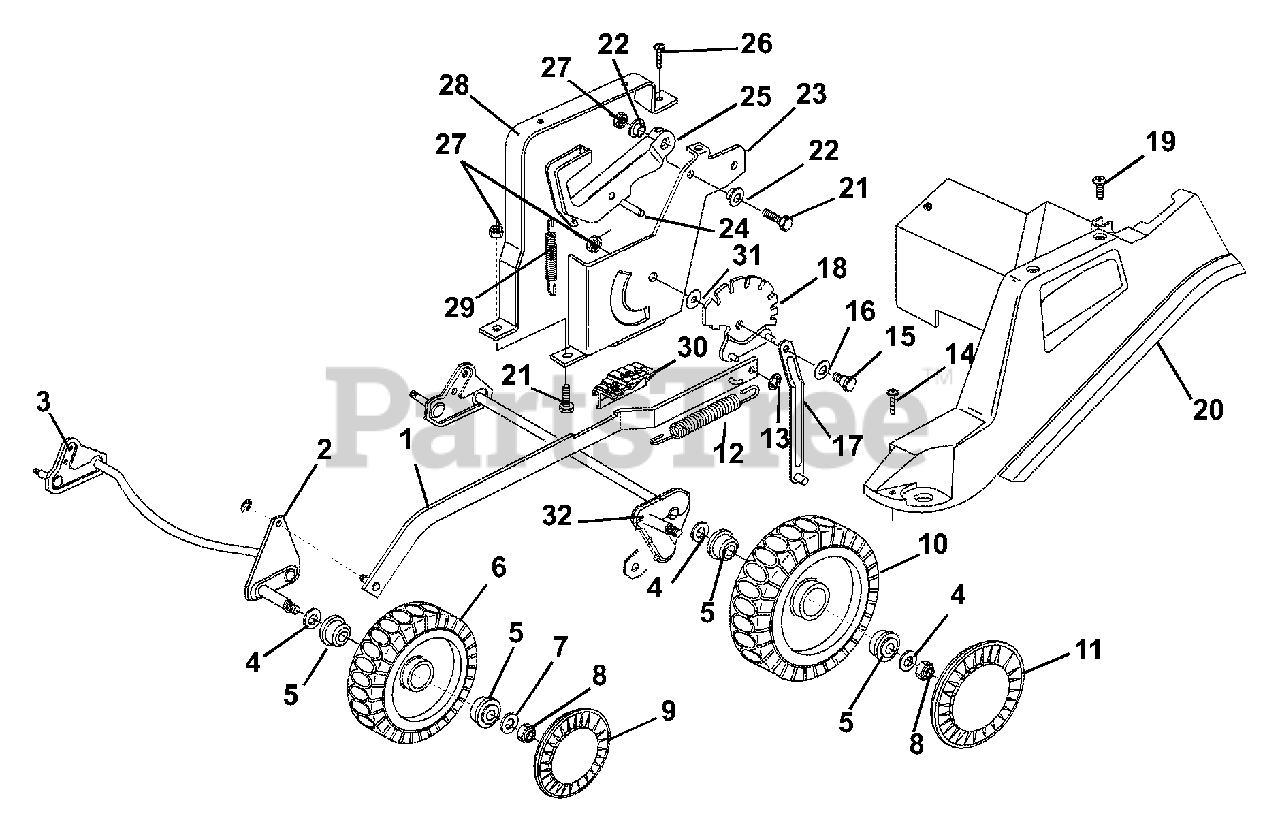

Wheels And Height Adjustment Parts Diagram

  • Title
1

Ariens 01466000

ROD, HEIGHT ADJUSTMENT CONTROL

$51.37

$

Usually ships in 4-12 days

0

2

Ariens 01466100

RING, SNAP

$5.53

$

Usually ships in 4-12 days

0

3

Ariens 01466200

AXLE, FRONT WHEEL

$55.84

$

Usually ships in 4-12 days

0

4

Ariens 01466300

WASHER, ELASTIC M12

$3.30

$

Usually ships in 4-12 days

0

5

Ariens 01466400

BEARING

$

$

Not available

6

Ariens 01466500

WHEEL, FRONT KNOBBLY 170

$32.37

$

In Stock, only 1 left!

0

7

Ariens 01471600

WASHER M8 8.4X16X1.6

$

$

Not available

8

$5.53

$

Usually ships in 4-12 days

0

9

Ariens 01466600

HUB, CAP FRONT GREY

$4.42

$

Usually ships in 4-12 days

0

10

Ariens 01466800

WHEEL, REAR KNOBBLY 210

$46.90

$

In Stock, Qty 7

0

11

Ariens 01466700

HUB, CAP REAR GREY

$3.30

$

Usually ships in 4-12 days

0

12

$

$

Not available

13

Ariens 01466900

RING, ELASTIC

$3.30

$

Usually ships in 4-12 days

0

14

Ariens 01467900

SCREW 5.5X16

$3.30

$

Usually ships in 4-12 days

0

15

Ariens 01467800

PIN, FULCRUM

$5.53

$

Usually ships in 4-12 days

0

16

$

$

Not available

17

Ariens 01467600

ROD, REAR WHEEL AXLE

$

$

Not available

18

Ariens 01467500

SECTOR, HEIGHT ADJUSTMENT

$27.89

$

Usually ships in 4-12 days

0

19

Ariens 01468000

SCREW 5.5X13

$

$

Not available

20

Ariens 01468100

DECK, ADJUSTMENT

$

$

Not available

21

Ariens 01465000

SCREW M8X25

$3.30

$

Usually ships in 4-12 days

0

22

Ariens 01468200

BUSHING

$

$

Not available

23

Ariens 01468300

SUPPORT, HEIGHT ADJUSTMENT

$

$

Not available

24

Ariens 01468400

PIN 6X28

$

$

Not available

25

$14.48

$

Usually ships in 4-12 days

0

26

Ariens 01460900

SCREW 5.5X16

$

$

Not available

27

Ariens 01467300

NUT M8 FLANGE

$

$

Not available

28

Ariens 01467200

SUPPORT, HANDLE

$8.89

$

Usually ships in 4-12 days

0

29

$

$

Not available

30

Ariens 01467400

PLATE, CUTTING POSITION

$

$

Not available

31

$

$

Not available

32

Ariens 01465900

AXLE, REAR WHEEL (PUSH)

Note: (Push) (088, 096)

$

$

Not available
