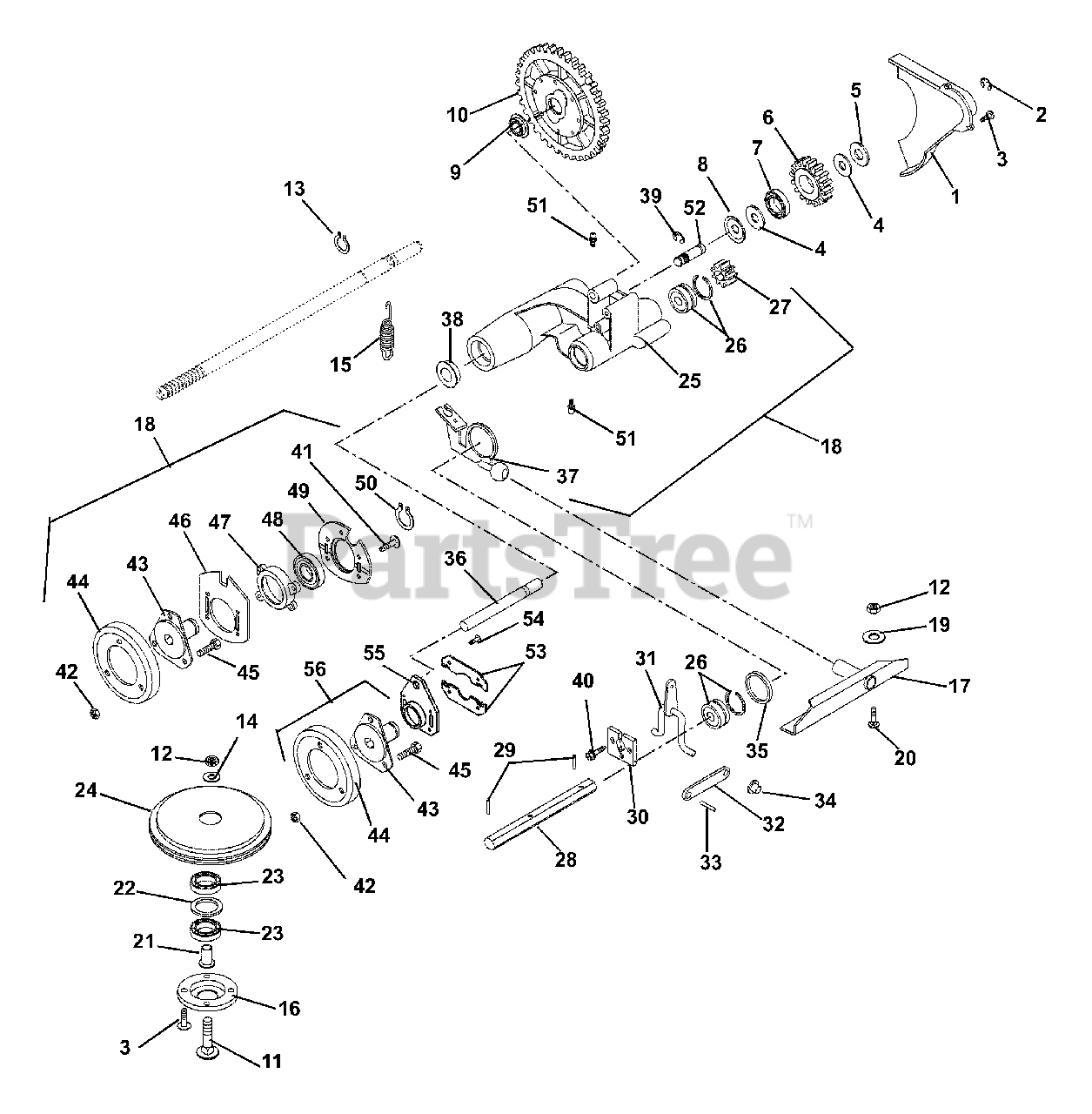

911098 (PRO 21 S) - Gravely 21" Walk-Behind Mower, 6.75hp Briggs & Stratton (SN: 000101 & Above) Friction Wheel And Drive Parts Diagram

21" Walk-Behind Mower, 6.75hp Briggs & Stratton

Friction Wheel And Drive Parts Diagram

  • Title

1

Gravely 01121051

Gear Cover

$38.99

$

Usually ships in 4-12 days

0

2

Gravely 05705900

Ring, Retaining External .438 x .035

$0.99

$

In Stock, only 4 left!

0

3

Gravely 07411900

Screw, Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

4

Gravely 06441100

Washer, Flat Steel .520 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, Qty 16

0

5

Gravely 06425300

Washer, Flat Steel .531 x 1.00 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 7

0

6

Gravely 01131700

Idler Gear

$51.99

$

Usually ships in 4-12 days

0

7

Gravely 05408000

Bearing, Ball .50 x 1.38 x .437

$5.99

$

In Stock, Qty 20+

0

8

Gravely 01135100

Retainer

$12.99

$

In Stock, only 2 left!

0

9

Gravely 05417600

Bearing, Ball .625 x 1.38 x .50 (094, 394)
(Superseded to 05417500)

Note: (094, 394)

$17.99

$

In Stock, only 4 left!

0

9

Gravely 05417600

Bearing, Ball .625 x 1.38 x .50 (911098 s/n 281 & up; 911100 s/n 560 & up)
(Superseded to 05417500)

Note: (911098 s/n 281 & up; 911100 s/n 560 & up)

$17.99

$

In Stock, only 4 left!

0

9

Gravely 05417500

Bearing, Ball .625 x 1.378 x .44 (911098 s/n 101-280; 911100 s/n 101-559)

Note: (911098 s/n 101-280; 911100 s/n 101-559)

$17.99

$

In Stock, only 4 left!

0

10

Gravely 51102400

Differential Assembly

$179.99

$

Usually ships in 4-12 days

0

11

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

12

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05711900

Ring, Retaining External .579 x .035

$0.99

$

In Stock, Qty 18

0

14

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 08325200

Spring, Tension .051 x .60 x 2.25

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 01127500

Bearing, Retainer

$19.99

$

Usually ships in 4-12 days

0

17

Gravely 01161951

Pivot Channel Weldment

$49.99

$

Usually ships in 4-12 days

0

18

Gravely 51108900

Kit, LM Drive Carrier

Note: (Includes Items 25 - 52)

$439.99

$

Usually ships in 4-12 days

0

19

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

20

Gravely 06212200

Bolt, Round Head Square Short Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 01127400

Spindle, Bearing

$19.99

$

In Stock, Qty 8

0

22

Gravely 06420200

Washer, Flat Steel 1.062 x 1.344 x .032

$4.49

$

In Stock, Qty 8

0

23

Gravely 05435100

Bearing, Ball .625 x 1.375 x .43

$14.99

$

In Stock, Qty 20+

0

24

Gravely 01127300

Friction Sheave

$

$

Not available

25

Gravely 01158700

Drive Carrier (094, 394)
(Superseded to 01140600)

Note: (094, 394)

$111.99

$

In Stock, only 1 left!

0

25

Gravely 01158700

Drive Carrier (911098 s/n 281 & up; 911100 s/n 560 & up)
(Superseded to 01140600)

Note: (911098 s/n 281 & up; 911100 s/n 560 & up)

$111.99

$

In Stock, only 1 left!

0

25

Gravely 01140600

Drive Carrier (911098 s/n 101-280; 911100 s/n 101-559)

Note: (911098 s/n 101-280; 911100 s/n 101-559)

$111.99

$

In Stock, only 1 left!

0

26

Gravely 05413700

Bearing, Ball .562 x 1.375 x .437

$29.99

$

In Stock, only 2 left!

0

27

Gravely 02201100

Gear, Pinion

$10.99

$

In Stock, only 1 left!

0

28

Gravely 01240100

Hex Shaft

$66.99

$

Usually ships in 4-12 days

0

29

Gravely 05800500

Pin, Roll .188 x .88

$1.99

$

In Stock, Qty 5

0

30

Gravely 01125000

Retainer Plate

$8.49

$

Usually ships in 4-12 days

0

31

Gravely 01123600

Shift Arm Weldment

$23.99

$

Usually ships in 4-12 days

0

32

Gravely 01124200

Shift Link

$7.99

$

In Stock, Qty 5

0

33

Gravely 05803500

Pin, Roll .125 x .50

$0.99

$

In Stock, only 3 left!

0

34

Gravely 02215300

Push Nut .25

$1.99

$

In Stock, Qty 16

0

35

Gravely 06421600

Washer, Flat Steel 1.39 x 2.00 x .02

$2.99

$

In Stock, only 3 left!

0

36

Gravely 01125100

Rod, Guide

$73.99

$

Usually ships in 4-12 days

0

37

Gravely 01137900

Drive Actuator Weldment
(Superseded to 01245700)

$39.99

$

Usually ships in 4-12 days

0

38

Gravely 05417600

Bearing, Ball .625 x 1.38 x .50
(Superseded to 05417500)

$17.99

$

In Stock, only 4 left!

0

39

Gravely 05705900

Ring, Retaining External .438 x .035

$0.99

$

In Stock, only 4 left!

0

40

Gravely 07411900

Screw, Tapping 12-24 x .50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

41

Gravely 07415100

Screw, Hex Flange Washer Head Tapping 5MM-0.8 x 16MM (094, 394)

Note: (094, 394)

$3.49

$

Usually ships in 4-12 days

0

41

Gravely 07415100

Screw, Hex Flange Washer Head Tapping 5MM-0.8 x 16MM (911098 s/n 281 & up; 911100 s/n 560 & up)

Note: (911098 s/n 281 & up; 911100 s/n 560 & up)

$3.49

$

Usually ships in 4-12 days

0

42

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 01133500

Hub, Friction Wheel

$59.99

$

Usually ships in 4-12 days

0

44

Gravely 03248300

Disc, Friction

$38.99

$

In Stock, Qty 12

0

45

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

46

Gravely 00174500

Plate, Bearing (094, 394)

Note: (094, 394)

$13.99

$

Usually ships in 4-12 days

0

46

Gravely 00174500

Plate, Bearing (911098 s/n 281 & up; 911100 s/n 560 & up)

Note: (911098 s/n 281 & up; 911100 s/n 560 & up)

$13.99

$

Usually ships in 4-12 days

0

47

Gravely 01131800

Bearing Retainer (094, 394)

Note: (094, 394)

$20.99

$

Usually ships in 4-12 days

0

47

Gravely 01131800

Bearing Retainer (911098 s/n 281 & up; 911100 s/n 560 & up)

Note: (911098 s/n 281 & up; 911100 s/n 560 & up)

$20.99

$

Usually ships in 4-12 days

0

48

Gravely 05416000

Bearing Ball 1.00 x 2.00 x .56 (094, 394)

Note: (094, 394)

$14.99

$

Usually ships in 4-12 days

0

48

Gravely 05416000

Bearing Ball 1.00 x 2.00 x .56 (911098 s/n 281 & up; 911100 s/n 560 & up)

Note: (911098 s/n 281 & up; 911100 s/n 560 & up)

$14.99

$

Usually ships in 4-12 days

0

49

Gravely 01119200

Bearing Retainer (094, 394)

Note: (094, 394)

$7.49

$

Usually ships in 4-12 days

0

49

Gravely 01119200

Bearing Retainer (911098 s/n 281 & up; 911100 s/n 560 & up)

Note: (911098 s/n 281 & up; 911100 s/n 560 & up)

$7.49

$

Usually ships in 4-12 days

0

50

Gravely 05706200

Ring, Retaining External 1.00 x .042 (094, 394)

Note: (094, 394)

$2.49

$

In Stock, only 2 left!

0

50

Gravely 05706200

Ring, Retaining External 1.00 x .042 (911098 s/n 281 & up; 911100 s/n 560 & up)

Note: (911098 s/n 281 & up; 911100 s/n 560 & up)

$2.49

$

In Stock, only 2 left!

0

51

Gravely 07012600

Fitting, Lube .25-28 x .256 (094, 394)
(Superseded to 07001806)

Note: (094, 394)

$

$

Not available

51

Gravely 07012600

Fitting, Lube .25-28 x .256 (911098 s/n 281 & up; 911100 s/n 560 & up)
(Superseded to 07001806)

Note: (911098 s/n 281 & up; 911100 s/n 560 & up)

$

$

Not available

52

Gravely 01139700

Idler Shaft

$30.99

$

In Stock, only 4 left!

0

53

Gravely 01153800

Plate, Thrust (911098 s/n 101-280; 911100 s/n 101-559)

Note: (911098 s/n 101-280; 911100 s/n 101-559)

$25.99

$

In Stock, only 1 left!

0

54

Gravely 07412100

Screw-Tapping 10-24 x .375 Hex Washer Head (911098 s/n 101-280; 911100 s/n 101-559)

Note: (911098 s/n 101-280; 911100 s/n 101-559)

$0.99

$

Usually ships in 4-12 days

0

55

Gravely 01153900

Plate, Guide (911098 s/n 101-280; 911100 s/n 101-559)

Note: (911098 s/n 101-280; 911100 s/n 101-559)

$34.99

$

In Stock, only 3 left!

0

56

Gravely 51102500

Assembly, Friction Wheel (911098 s/n 101-280; 911100 s/n 101-559)
(Superseded to 51109700)

Note: (911098 s/n 101-280; 911100 s/n 101-559)

$107.99

$

In Stock, only 2 left!

0

Gravely 51105600

Service Kit

Note: NOT AVAILABLE - ORDER PARTS INDIVIDUALLY

$

$

Not available
