911098 (PRO 21 S) - Gravely 21" Walk-Behind Mower, 6.75hp Briggs & Stratton (SN: 000101 & Above) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, 6.75hp Briggs & Stratton

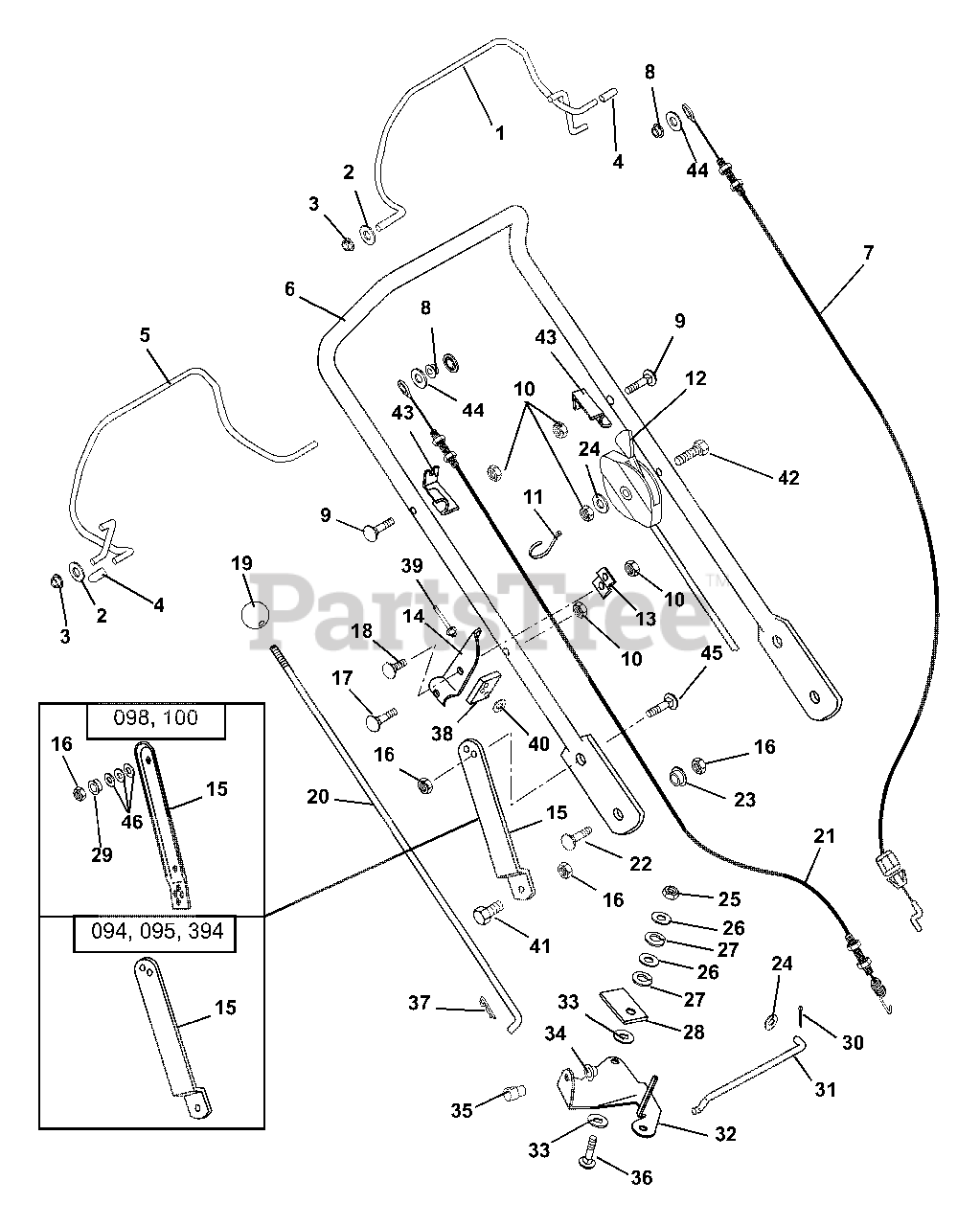

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 01199651

Engine Bail Weldment

$96.99

$

In Stock, only 1 left!

0

2

Gravely 06437200

Washer, Flat Steel .32 x .44 x .44 x .56 (094, 098, 100, 394)
(Superseded to 06401017)

Note: (094, 098, 100, 394)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06437200

Washer, Flat Steel .32 x .44 x .44 x .56 (095)
(Superseded to 06401017)

Note: (095)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05514500

Bushing, Flange .325 x .688 x .56 (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$3.99

$

In Stock, Qty 9

0

3

Gravely 05514500

Bushing, Flange .325 x .688 x .56 (095)

Note: (095)

$3.99

$

In Stock, Qty 9

0

4

Gravely 07517000

Cap, Vinyl .25 I.D. (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$3.99

$

In Stock, Qty 10

0

4

Gravely 07517000

Cap, Vinyl .25 I.D. (095)

Note: (095)

$3.99

$

In Stock, Qty 10

0

5

Gravely 01199551

Traction Bail Weldment (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$159.99

$

Usually ships in 4-12 days

0

6

Gravely 01184851

Handlebar
(Superseded to 01245351)

$

$

Not available

7

Gravely 06949700

Cable, Engine

$35.99

$

In Stock, Qty 6

0

8

Gravely 05717600

Ring, Retaining External .25 x .01 (094, 394)

Note: (094, 394)

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 05717600

Ring, Retaining External .25 x .01 (095)

Note: (095)

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 02215300

Nut, Push .25 (98, 100)

Note: (98, 100)

$2.49

$

In Stock, Qty 15

0

9

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25 (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$2.99

$

In Stock, only 2 left!

0

9

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25 (095)

Note: (095)

$2.99

$

In Stock, only 2 left!

0

10

Gravely 06529700

Nut, Locking Center .25-20 (094, 098, 100, 394)
(Superseded to 06500812)

Note: (094, 098, 100, 394)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06529700

Nut, Locking Center .25-20 (095)
(Superseded to 06500812)

Note: (095)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

12

Gravely 06950300

Control, Throttle - Honda (094, 095, 394)

Note: (094, 095, 394)

$67.99

$

Usually ships in 4-12 days

0

12

Gravely 06948100

Cable, Lockout Control (100)

Note: (100)

$71.99

$

In Stock, only 2 left!

0

13

Gravely 01141851

Brace, Speed Control (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 01137451

Bracket, Speed Control (094, 098, 100, 394)
(Superseded to 51119700)

Note: (094, 098, 100, 394)

$

$

Not available

15

Gravely 01158651

Handlebar Bracket (094, 095, 394)

Note: (094, 095, 394)

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 01150051

Link, Handlebar Adjustment Left Hand (098, 100)

Note: (098, 100)

$40.99

$

Usually ships in 4-12 days

0

15

Gravely 01150151

Link, Handlebar Adjustment Right Hand (098, 100)

Note: (098, 100)

$27.99

$

Usually ships in 4-12 days

0

16

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06222300

Bolt, Round Head Square Neck .25-20 x 1.38 (094, 098, 100, 394)
(Superseded to 06200331)

Note: (094, 098, 100, 394)

$1.99

$

In Stock, Qty 5

0

18

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5 (094, 098, 100, 394)
(Superseded to 06200306)

Note: (094, 098, 100, 394)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07515900

Knob (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$22.99

$

In Stock, only 2 left!

0

20

Gravely 01140800

Rod, Speed Control (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$43.99

$

Usually ships in 4-12 days

0

21

Gravely 06949600

Traction Cable (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$59.99

$

In Stock, only 2 left!

0

22

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 01305900

Shoulder Spacer

$2.49

$

In Stock, Qty 20+

0

24

Gravely 06437300

Washer, Flat Steel.281 x .62 x .065 (094, 098, 100, 394)
(Superseded to 06401001)

Note: (094, 098, 100, 394)

$0.99

$

In Stock, only 3 left!

0

25

Gravely 06529600

Nut, Locking Center .38-16 (094, 098, 100, 394)
(Superseded to 06500825)

Note: (094, 098, 100, 394)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065 (094, 098, 100, 394)
(Superseded to 06401013)

Note: (094, 098, 100, 394)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06306500

Washer, Lock .375 x .115 Heavy (094, 098, 100, 394)
(Superseded to 06300120)

Note: (094, 098, 100, 394)

$4.99

$

In Stock, Qty 17

0

28

Gravely 01154800

Pressure Flange (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$8.49

$

Usually ships in 4-12 days

0

29

Gravely 05514900

Bushing-Flange .325 x .50 x .513 x .875

$3.99

$

In Stock, Qty 6

0

30

Gravely 06712400

Pin, Cotter .06 x .50 (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 01126100

Shift Link (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$22.99

$

Usually ships in 4-12 days

0

32

Gravely 01123900

Bell Crank, Speed Control (094, 098, 100, 394)
(Superseded to 04756800)

Note: (094, 098, 100, 394)

$22.99

$

Usually ships in 4-12 days

0

33

Gravely 01123800

Friction Washer (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$4.99

$

In Stock, Qty 13

0

34

Gravely 036903

Cap, Rod .375 (094, 098, 100, 394)
(Superseded to 01019800)

Note: (094, 098, 100, 394)

$2.99

$

In Stock, only 2 left!

0

35

Gravely 01139800

Swivel (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$17.99

$

Usually ships in 4-12 days

0

36

Gravely 06222200

Bolt, Round Head Square Neck .38-16 x 1.25 (094, 098, 100, 394)
(Superseded to 06200236)

Note: (094, 098, 100, 394)

$2.99

$

In Stock, Qty 20+

0

37

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18 (094, 098, 100, 394)
(Superseded to 06700222)

Note: (094, 098, 100, 394)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 01173800

Support Pad (094, 098, 100, 394)
(Superseded to 04760400)

Note: (094, 098, 100, 394)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 06815700

Rivet .187 x .575 (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$1.49

$

In Stock, only 2 left!

0

40

Gravely 06442700

Washer, Flat Steel .219 x .50 x .049 (094, 098, 100, 394)
(Superseded to 06401123)

Note: (094, 098, 100, 394)

$1.49

$

Usually ships in 4-12 days

0

41

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

42

Gravely 05961600

Bolt-Hex .25-20 x 2.50 Grade 5 (094, 095, 394)

Note: (094, 095, 394)

$2.99

$

In Stock, only 1 left!

0

43

Gravely 01155751

Cable Anchor, Left Hand (094, 394)
(Superseded to 01245651)

Note: (094, 394)

$13.99

$

Usually ships in 4-12 days

0

43

Gravely 01155751

Cable Anchor, Left Hand (095, 098, 100)
(Superseded to 01245651)

Note: (095, 098, 100)

$13.99

$

Usually ships in 4-12 days

0

44

Gravely 06437300

Washer, Flat Steel .28 x .62 x .065 (094, 098, 100, 394)
(Superseded to 06401001)

Note: (094, 098, 100, 394)

$0.99

$

In Stock, only 3 left!

0

44

Gravely 06437300

Washer, Flat Steel .28 x .62 x .065 (095)
(Superseded to 06401001)

Note: (095)

$0.99

$

In Stock, only 3 left!

0

45

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

46

Gravely 01178700

Washer, Belleville

$2.49

$

In Stock, Qty 6

0
