911098 (PRO 21 S) - Gravely 21" Walk-Behind Mower, 6.75hp Briggs & Stratton (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Walk-Behind Mower, 6.75hp Briggs & Stratton

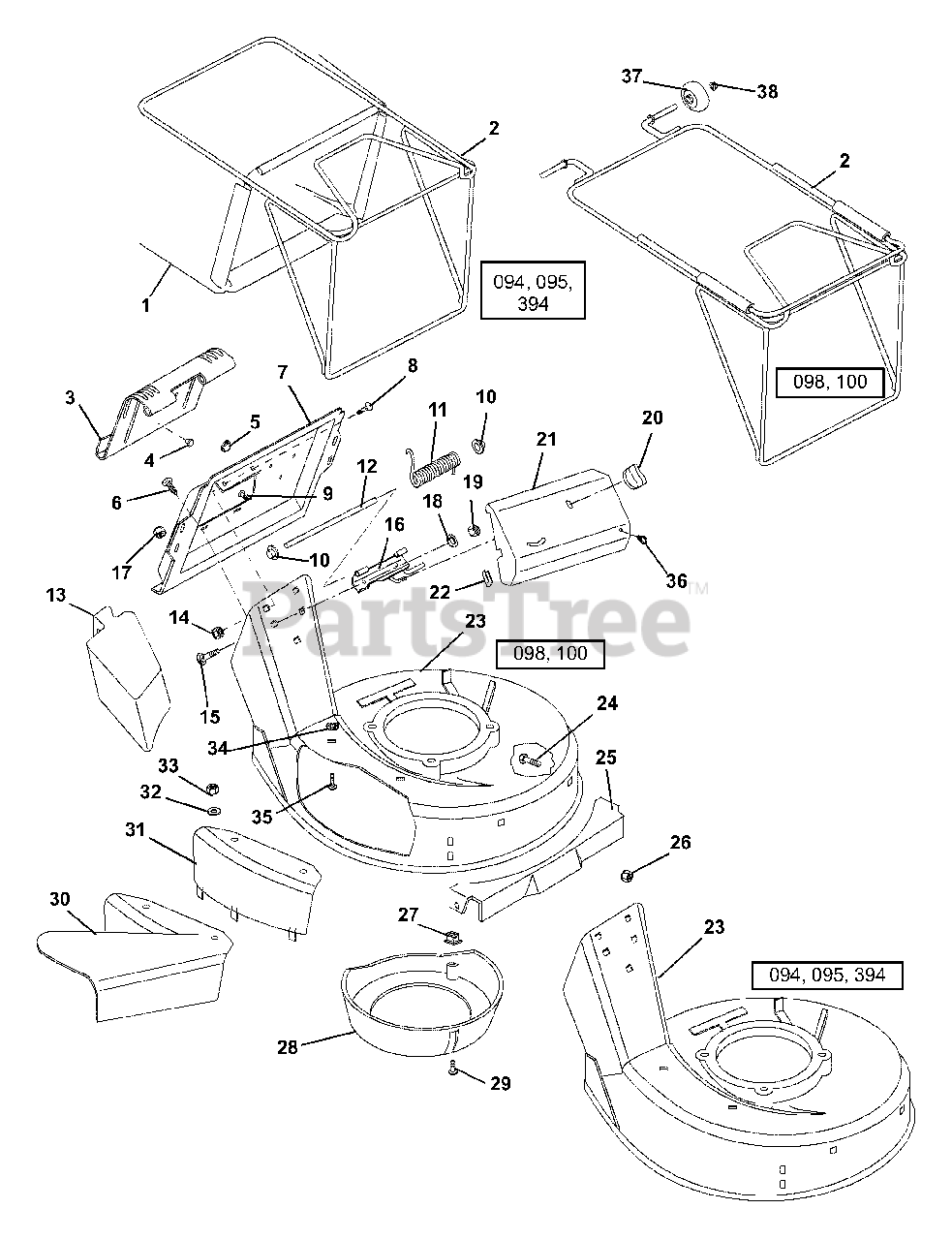

Mower Pan And Bag Parts Diagram

  • Title

1

Gravely 01180500

Bag, Consumer Black (094, 095, 394)

Note: (094, 095, 394)

$116.99

$

In Stock, only 1 left!

0

1

Gravely 01241900

Bag, Bag-N-Drag (98, 100)
(Superseded to 51123000)

Note: (98, 100)

$

$

Not available

2

Gravely 01241800

Frame, Bagger (094, 095, 394)

Note: (094, 095, 394)

$

$

Not available

2

Gravely 01241100

Frame, Bag-N-Drag (098, 100)
(Superseded to 51123000)

Note: (098, 100)

$

$

Not available

3

Gravely 01136553

Door, Catcher Plate

$

$

Not available

4

Gravely 07516000

Button Bumper

$1.99

$

In Stock, Qty 17

0

5

Gravely 07511800

Bumper

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 07414900

Screw, Tapping 10-24 x .38 Pan Head

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 01177753

Plate, Catcher

$

$

Not available

8

Gravely 06203900

Bolt, Round Head Square Neck .25-20 x .38

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 07411900

Screw-Tapping 12-24 x .50 Hex Washer Head (098, 100)
(Superseded to 07400136)

Note: (098, 100)

$2.49

$

In Stock, Qty 12

0

10

Gravely 02215300

Nut, Push

$1.99

$

In Stock, Qty 16

0

11

Gravely 08322400

Spring, Torsion .120 x .68 x 3.09

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 01141000

Pin, Door

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 71102700

Mulch Master Mulcher Accessory

$51.99

$

In Stock, only 4 left!

0

14

Gravely 06530100

Nut, Locking Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

15

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 01155553

Base, Hinge (098, 100)

Note: (098, 100)

$37.99

$

Usually ships in 4-12 days

0

16

Gravely 01138253

Base, Hinge (095)

Note: (095)

$8.99

$

Usually ships in 4-12 days

0

16

Gravely 01139953

Base, Hinge (094, 394)

Note: (094, 394)

$

$

Not available

17

Gravely 06530100

Nut, Locking Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

18

Gravely 06308000

Washer, Locking .25 x .077

$0.99

$

Usually ships in 4-12 days

0

19

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

20

Gravely 01159300

Nut, Wing (098, 100)

Note: (098, 100)

$6.99

$

In Stock, only 2 left!

0

21

Gravely 01158853

Drive Cover (098, 100)

Note: (098, 100)

$41.99

$

Usually ships in 4-12 days

0

22

Gravely 01155400

Trim Bumper (098, 100)
(Superseded to 01177300)

Note: (098, 100)

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 51107100

Mower Pan Head with Decals - Self-Propelled (094, 394)

Note: (094, 394)

$

$

Not available

23

Gravely 51109200

Mower Pan Head with Decals - Push (095)

Note: (095)

$

$

Not available

23

Gravely 51107500

Mower Pan Head with Decals - Self Propelled (098, 100)

Note: (098, 100)

$

$

Not available

24

Gravely 06222000

Bolt, Round Head Square Neck .31-18 x .50 Grade 5
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

25

Gravely 01183553

Front Panel

$79.99

$

Usually ships in 4-12 days

0

26

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

27

Gravely 039149

Grommet, Plastic
(Superseded to 07507600)

$0.99

$

In Stock, Qty 10

0

28

Gravely 01173700

Baffle, Center

$45.99

$

Usually ships in 4-12 days

0

29

Gravely 07415000

Screw, Tapping 10-16 x .62 Hex Washer Head

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 01180200

Side Discharge Assembly (098, 100)

Note: (098, 100)

$35.99

$

In Stock, only 1 left!

0

31

Gravely 01180351

Side Discharge Cover (098, 100)

Note: (098, 100)

$28.99

$

In Stock, only 4 left!

0

32

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065 (098, 100)
(Superseded to 06401013)

Note: (098, 100)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06530200

Nut, Locking Nylon .312-18 (098, 100)
(Superseded to 06500820)

Note: (098, 100)

$0.99

$

Usually ships in 4-12 days

0

34

Gravely 040380

Nut, Push .312 (098, 100)
(Superseded to 06514900)

Note: (098, 100)

$0.99

$

In Stock, Qty 13

0

35

Gravely 06214100

Bolt, Round Head Square Neck .31-18 x .75 Grade 2 (098, 100)
(Superseded to 06200309)

Note: (098, 100)

$2.49

$

In Stock, Qty 9

0

36

Gravely 01166500

Clip, Snap-In (098, 100)

Note: (098, 100)

$

$

Not available

37

Gravely 02745400

Roller

$14.99

$

In Stock, Qty 15

0

38

Gravely 01019800

Cap, .38 Rod

$2.99

$

In Stock, Qty 7

0
