911098 (PRO 21 S) - Gravely 21" Walk-Behind Mower, 6.75hp Briggs & Stratton (SN: 000101 & Above) Wheels And Height Adjusters Parts Diagram

21" Walk-Behind Mower, 6.75hp Briggs & Stratton

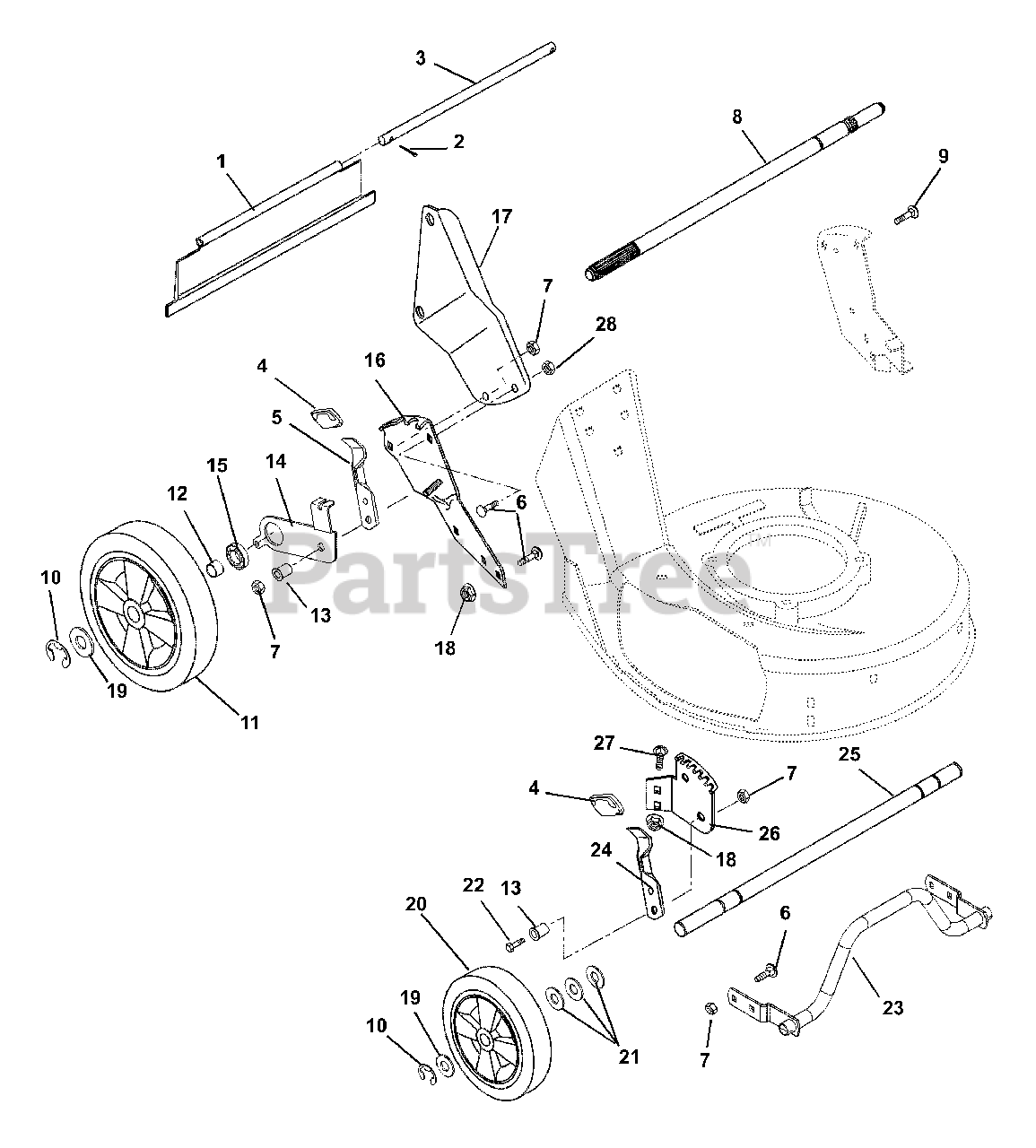

Wheels And Height Adjusters Parts Diagram

  • Title

1

Gravely 07522300

Rear Protective Guard, Self Propelled

Note: (094, 098, 100, 394)

$45.99

$

In Stock, only 2 left!

0

1

Gravely 07522400

Rear Protective Guard, Push

Note: (095)

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 06712400

Pin, Cotter .06 x .50

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 01140000

Rod
(Superseded to 01140067)

$46.99

$

Usually ships in 4-12 days

0

4

Gravely 07513600

Knob

$7.99

$

In Stock, only 2 left!

0

5

Gravely 01130600

Height Adjustment Lever
(Superseded to 01242000)

$25.99

$

In Stock, only 1 left!

0

6

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

Note: (094, 095, 394)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

Note: (098, 100)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01149500

Rear Axle

Note: (094, 098, 100, 394)

$140.99

$

In Stock, only 1 left!

0

8

Gravely 01171900

Rear Axle

Note: (095)

$50.99

$

Usually ships in 4-12 days

0

9

Gravely 06221800

Bolt, Round Head Square Short Neck .31-18 x 1.00
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 05710200

Ring, Retaining External .50 x .042

Note: (094, 095, 098, 394)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05710200

Ring, Retaining External .50 x .042

Note: (100)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07151200

Wheel, Left Hand Rear 10.50
(Superseded to 51115900)

Note: (094, 098, 100, 394)

$102.99

$

In Stock, only 4 left!

0

11

Gravely 07151500

Wheel, Right Hand Rear 10.50
(Superseded to 51115900)

Note: (094, 098, 100, 394)

$102.99

$

In Stock, only 4 left!

0

11

Gravely 07103900

Tire Skin 10.50 x 2.00
(Superseded to 51115900)

Note: (094, 098, 100, 394)

$102.99

$

In Stock, only 4 left!

0

11

Gravely 07152500

Tire, Rear 10 x 1.75 #6 Gray
(Superseded to 51116200)

Note: (095)

$101.99

$

Usually ships in 4-12 days

0

12

Gravely 01149600

Spacer Tube

Note: (094, 098, 100, 394)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 01149700

Spacer Tube Push Left Hand

Note: (095)

$12.99

$

Usually ships in 4-12 days

0

12

Gravely 01149800

Spacer Tube Push Right Hand

Note: (095)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05514800

Bushing, Flange .312 x .50 x .344 x .88

Note: (098, 100)

$3.99

$

In Stock, Qty 14

0

14

Gravely 01130700

Rear Adjustment Bracket Left Hand

Note: (094, 098, 100, 394)

$25.99

$

Usually ships in 4-12 days

0

14

Gravely 01130800

Rear Adjustment Bracket Right Hand

Note: (094, 394)

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 01131200

Rear Bracket and Bearing Assembly Left Hand

Note: (095)

$53.99

$

Usually ships in 4-12 days

0

14

Gravely 01131300

Rear Bracket and Bearing Assembly Right Hand

Note: (095)

$60.99

$

Usually ships in 4-12 days

0

14

Gravely 01150400

REAR BRACKET AND BEARING ASSY RH

Note: (98, 100)

$112.99

$

Usually ships in 4-12 days

0

15

Gravely 05417600

Bearing, Ball .625 x 1.38 x .50
(Superseded to 05417500)

Note: (094, 394)

$17.99

$

In Stock, only 4 left!

0

16

Gravely 01154251

Rear Quadrant, Left Hand

$62.99

$

In Stock, only 1 left!

0

16

Gravely 01154351

Rear Quadrant, Right Hand

$55.99

$

Usually ships in 4-12 days

0

17

Gravely 01177451

Bracket, Handlebar Mounting-Right Hand

Note: (094, 095, 394)

$

$

Not available

17

Gravely 01177551

Bracket, Handlebar Mounting-Left Hand

Note: (094, 095, 394)

$155.99

$

Usually ships in 4-12 days

0

17

Gravely 01137251

Bracket, Handlebar Mounting-Right Hand

Note: (098, 100)

$50.99

$

In Stock, only 1 left!

0

17

Gravely 01137151

Bracket, Handlebar Mounting-Left Hand

Note: (098, 100)

$55.99

$

In Stock, only 3 left!

0

18

Gravely 06530400

Nut, Locking Flange .31-18
(Superseded to 06500815)

Note: (094, 095, 098, 394)

$1.49

$

In Stock, only 4 left!

0

18

Gravely 06530400

Nut, Locking Flange .31-18
(Superseded to 06500815)

Note: (100)

$1.49

$

In Stock, only 4 left!

0

19

Gravely 06436600

Washer, Flat Steel .505 x .88 x .072
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 07149900

Wheel 7.50-.50 Bore, 1.50 Hub

Note: (094, 098, 100, 394)

$25.99

$

In Stock, Qty 11

0

20

Gravely 07152400

Tire, Front 7.00 x 1.50 #6 Gray

Note: (095)

$39.99

$

In Stock, Qty 8

0

21

Gravely 06441100

Washer, Flat Steel .520 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, Qty 16

0

22

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

23

Gravely 01242751

Guard, LM Valve Cover

Note: (094, 095, 394)

$170.99

$

In Stock, only 1 left!

0

24

Gravely 01120000

Lever, Front Height Adjustment

$20.99

$

Usually ships in 4-12 days

0

25

Gravely 01168900

Front Axle

$64.99

$

Usually ships in 4-12 days

0

26

Gravely 01154051

Front Quadrant, Left Hand

$51.99

$

In Stock, only 2 left!

0

26

Gravely 01154151

Front Quadrant, Right Hand

$39.99

$

In Stock, only 1 left!

0

27

Gravely 06222000

Bolt, Round Head Square Neck .31-18 x .50 Grade 5
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

28

Gravely 06530200

Nut, Locking Nylon .31-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0
