911100 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda OHV (SN: 000101 & Above) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda OHV

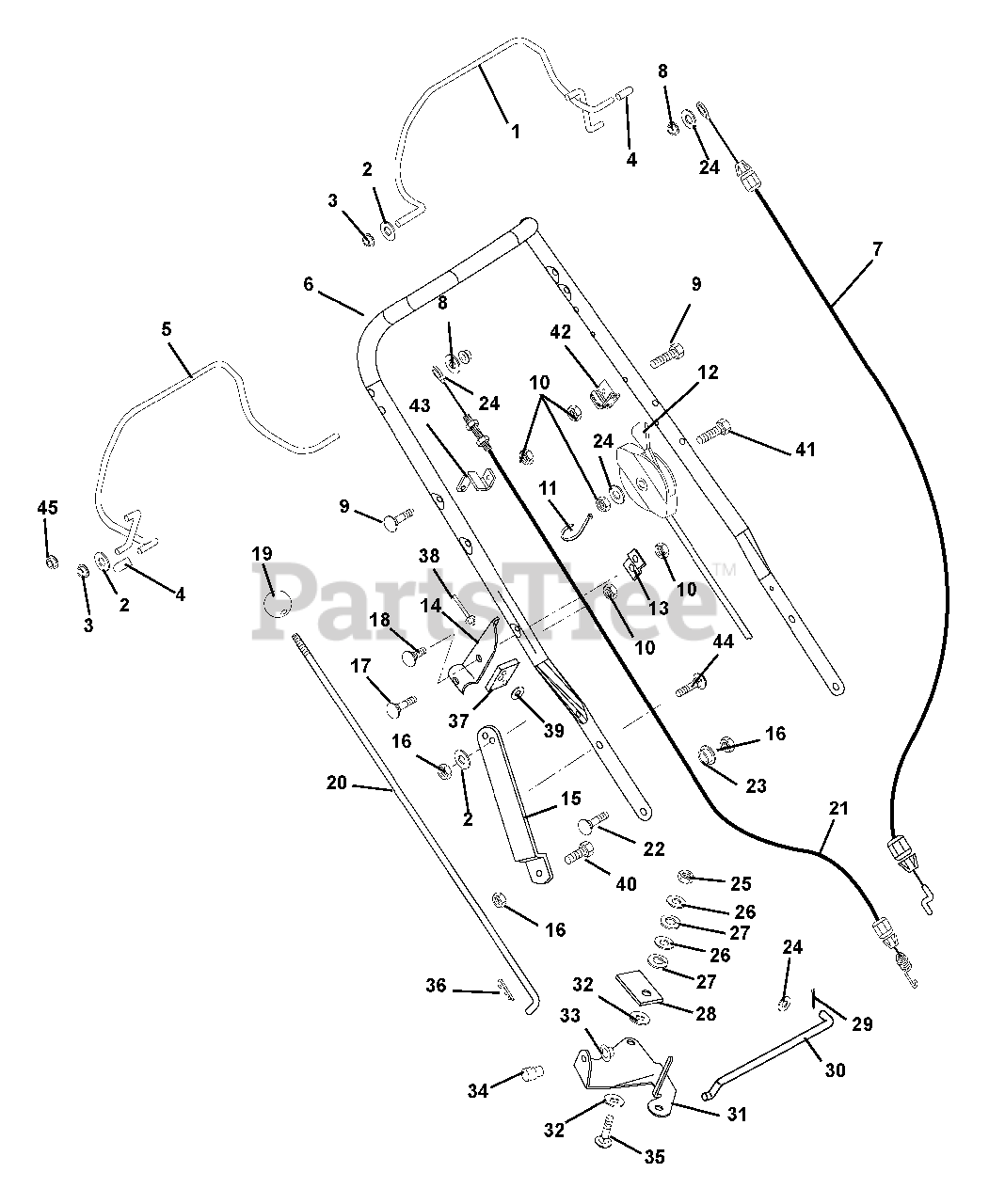

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 01245100

BAIL, ENGINE WELDMENT
(Superseded to 01245151)

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

3

Gravely 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

4

Gravely 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 11

0

5

Gravely 01245200

BAIL, TRACTION (WLDMENT)
(Superseded to 01245251)

$75.99

$

In Stock, only 2 left!

0

6

Gravely 01245300

BAR, WBLM HANDLE
(Superseded to 01245351)

$

$

Not available

7

Gravely 06949700

CABLE, ENGINE

$34.99

$

In Stock, only 1 left!

0

8

Gravely 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

9

Gravely 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5YZ

$2.49

$

In Stock, only 2 left!

0

10

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$

$

Not available

12

Gravely 06950300

CONTROL - THROTTLE - HONDA

$65.99

$

Usually ships in 4-12 days

0

13

Gravely 01141851

BRACE, SPEED CONTROL

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 01137451

BRACKET, SPEED CONTROL
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

15

Gravely 01158651

BRACKET, HANDLEBAR

$20.99

$

Usually ships in 4-12 days

0

16

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06222300

BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 11

0

18

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

19

Gravely 07515900

KNOB, BALL 5/16-18 X 1.5

$21.99

$

In Stock, only 1 left!

0

20

Gravely 01140800

ROD-SPEED CONTROL

$42.99

$

Usually ships in 4-12 days

0

21

Gravely 06900013

CABLE, WBLM TRACTION

$58.99

$

In Stock, only 4 left!

0

22

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

23

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

24

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

25

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$3.49

$

In Stock, Qty 10

0

28

Gravely 01154800

PRESSURE FLANGE

$7.99

$

Usually ships in 4-12 days

0

29

Gravely 06712400

PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 01126100

SHIFT LINK

$21.99

$

Usually ships in 4-12 days

0

31

Gravely 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

$21.99

$

Usually ships in 4-12 days

0

32

Gravely 01123800

FRICTION WASHER

$3.99

$

In Stock, only 3 left!

0

33

Gravely 036903

CAP, 3/8 ROD YWZC
(Superseded to 01019800)

$2.99

$

In Stock, Qty 7

0

34

Gravely 01139800

SWIVEL

$16.99

$

Usually ships in 4-12 days

0

35

Gravely 06222200

BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 10

0

36

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 16

0

37

Gravely 01173800

SUPPORT PAD
(Superseded to 04760400)

$3.49

$

Usually ships in 4-12 days

0

38

Gravely 06815700

RVT .187X.575 DOME AL BLACK

$1.49

$

In Stock, only 2 left!

0

39

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

40

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

41

Gravely 05961600

BLT-HEX .25-20X2.50 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

42

Gravely 01245600

ANCHOR, WBLM ENGINE CABLE
(Superseded to 01245651)

$12.99

$

In Stock, only 1 left!

0

43

Gravely 01245400

ANCHOR, CABLE
(Superseded to 01245451)

$28.99

$

Usually ships in 4-12 days

0

44

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

45

Gravely 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0
