911100 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda OHV (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda OHV

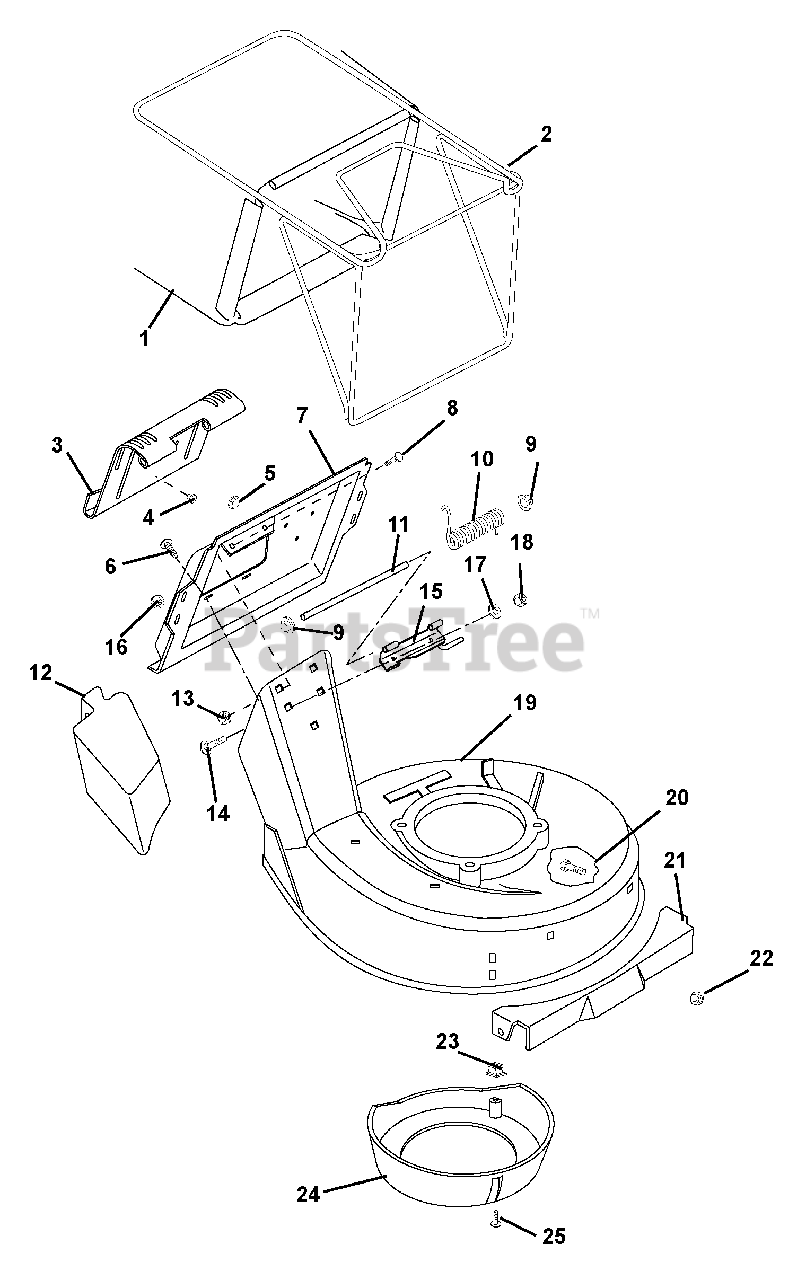

Mower Pan And Bag Parts Diagram

  • Title

1

Gravely 01180500

BAG, CONSUMER BLACK 15 OZ/YD2

$116.99

$

In Stock, only 1 left!

0

2

Gravely 01241800

FRAME, WBLM BAGGER

$

$

Not available

3

Gravely 01136553

CATCHER PLATE DOOR

$

$

Not available

4

Gravely 07516000

BUTTON BUMPER

$1.99

$

In Stock, Qty 17

0

5

Gravely 07511800

BUMPER

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 01177753

PLATE, CATCHER

$

$

Not available

8

Gravely 06203900

BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

10

Gravely 08322400

SG-TORS .120X.68X3.09

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 01141000

DOOR PIN

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 71102700

MULCH MASTER MULCHER ACCESSORY

$51.99

$

In Stock, only 2 left!

0

13

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

14

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 01139953

HINGE PLATE WELDMENT

$

$

Not available

16

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

17

Gravely 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

19

Gravely 51107100

MOWER PAN W/DECALS SP/COM

$

$

Not available

20

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

21

Gravely 01183553

PANEL-FRONT

$79.99

$

Usually ships in 4-12 days

0

22

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

23

Gravely 039149

PLASTIC GROMMET
(Superseded to 07507600)

$0.99

$

In Stock, Qty 10

0

24

Gravely 01173700

CENTER BAFFLE

$45.99

$

Usually ships in 4-12 days

0

25

Gravely 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$1.99

$

Usually ships in 4-12 days

0
