911110 (SP 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton Quantum (SN: 000101 - 001999) Handlebar And Controls Parts Diagram

21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton Quantum

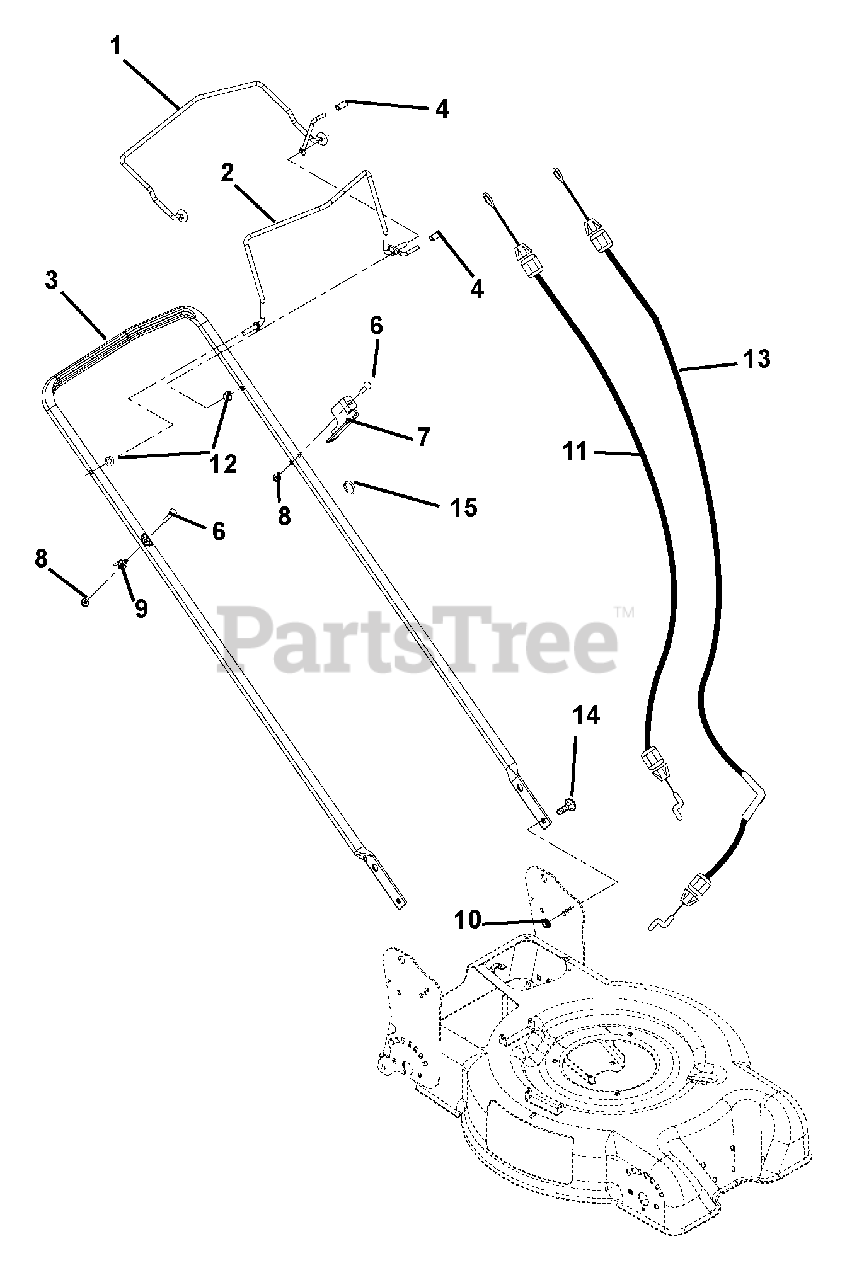

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01263851

BAIL, CLUTCH

Note: (911111)

$

$

Not available

2

Ariens 01263751

BAIL, OPERATOR PRESENCE

$

$

Not available

3

Ariens 01261351

HANDLEBAR, WBLM
(Superseded to 01269051)

$102.99

$

Usually ships in 4-12 days

0

4

Ariens 07517000

CAP, VINYL, .25 ID

Note: (911111)

$3.99

$

In Stock, Qty 10

0

5

Ariens 07517000

CAP, VINYL, .25 ID

Note: (911110)

$3.99

$

In Stock, Qty 10

0

6

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 01256251

ANCHOR, CABLE
(Superseded to 03882351)

$22.99

$

Usually ships in 4-12 days

0

8

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 04642100

GUIDE - PULLCORD

$52.99

$

Usually ships in 4-12 days

0

10

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 01264400

CABLE, OPERATOR PRESENCE

$35.99

$

Usually ships in 4-12 days

0

12

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

Note: (911110)

$3.99

$

In Stock, Qty 9

0

13

Ariens 01264300

CABLE, TRACTION (ENTRY LEVEL)
(Superseded to 71105900)

Note: (911111)

$94.99

$

Usually ships in 4-12 days

0

14

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 07539300

CONDUIT CLIP

$3.99

$

Usually ships in 4-12 days

0
