911110 (SP 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton Quantum (SN: 000101 - 001999) Wheels And Height Of Cut Parts Diagram

21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton Quantum

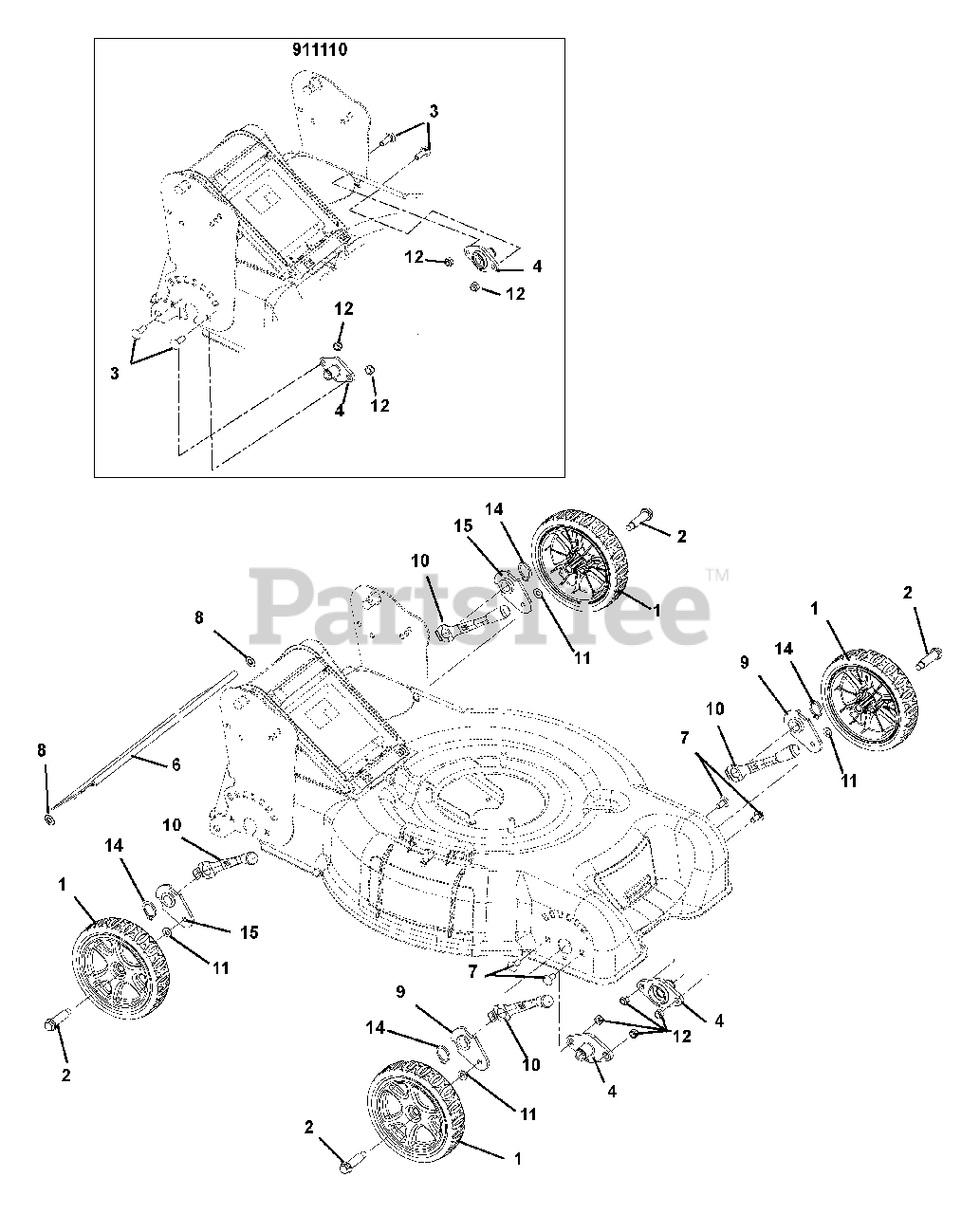

Wheels And Height Of Cut Parts Diagram

  • Title

1

Ariens 01250500

WHEEL, 8.5" WBLM
(Superseded to 01266600)

$

$

Not available

2

Ariens 01265100

BOLT, WHEEL SHOULDER

$11.99

$

In Stock, only 1 left!

0

3

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

Usually ships in 4-12 days

0

4

Ariens 01263000

WHEEL MOUNT HUB

Note: (911110)

$46.99

$

Usually ships in 4-12 days

0

5

Ariens 01263000

WHEEL MOUNT HUB

Note: (911111, 112, 113)

$46.99

$

Usually ships in 4-12 days

0

6

Ariens 01250900

GUARD, WBLM

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (911110)

$2.99

$

In Stock, Qty 20+

0

8

Ariens 00548400

RETAINER, .38 PUSH-ON

$1.99

$

Usually ships in 4-12 days

0

9

Ariens 01263200

WELDM'T, FRONT WHEEL BRACKET
(Superseded to 01268500)

$29.99

$

In Stock, only 2 left!

0

10

Ariens 01266400

HANDLE, HOC

$36.99

$

Usually ships in 4-12 days

0

11

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (911110)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (911111)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 4 left!

0

15

Ariens 01263100

WELDM'T, REAR WHEEL BRACKET
(Superseded to 01268600)

$

$

Not available
