911111 (SP 21) - Ariens 21" Self-Propelled Walk-Behind Mower, Briggs & Stratton Quantum (SN: 000101 - 001999) Transmission & Height Of Cut Parts Diagram

21" Self-Propelled Walk-Behind Mower, Briggs & Stratton Quantum

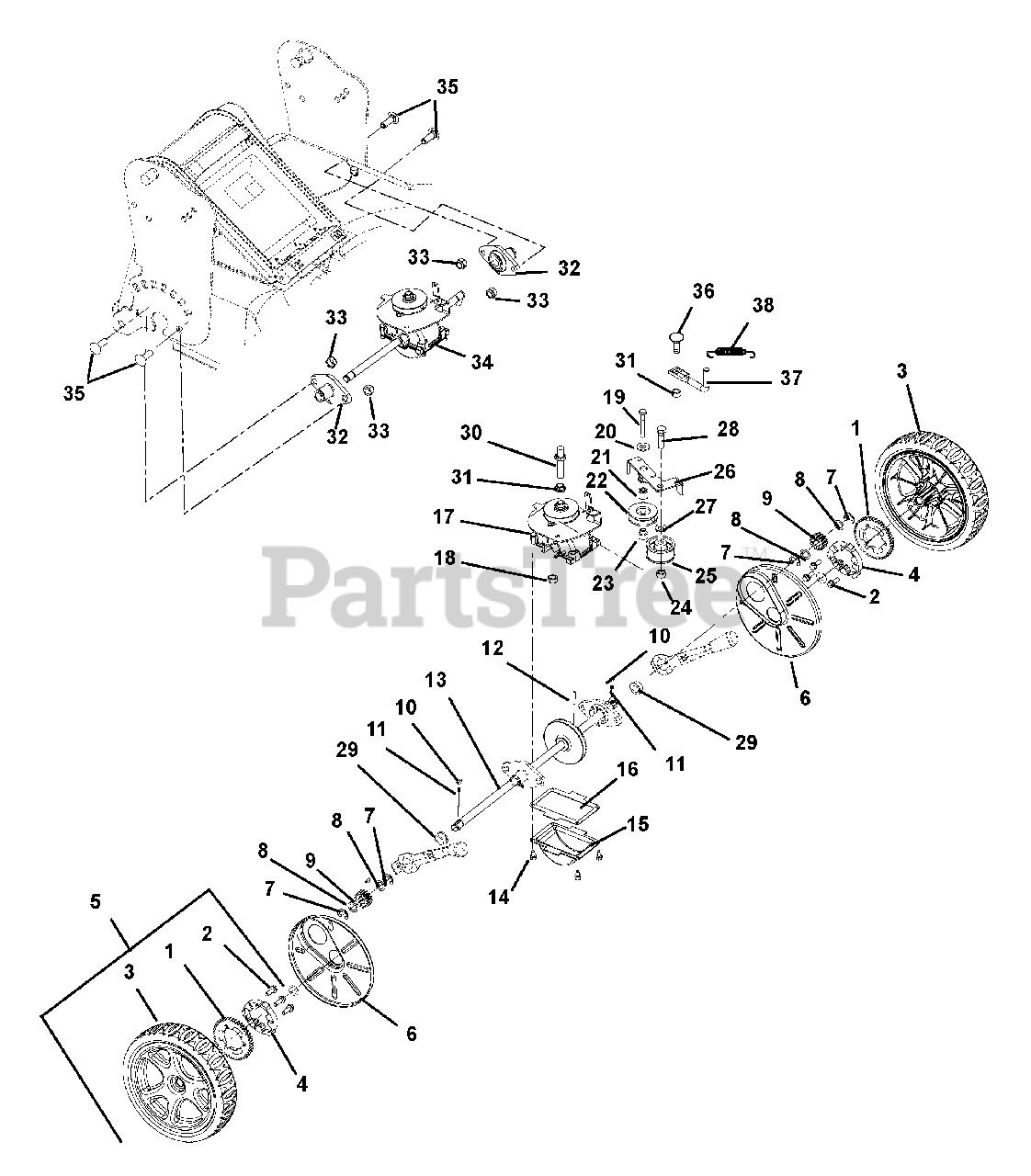

Transmission & Height Of Cut Parts Diagram

  • Title

1

Ariens 01296500

GEAR, WHEEL

Note: (Order as part of kit 5111100. See item 5.)

$

$

Not available

2

Ariens 07400008

SCR-TAP .25-15X.75 HI-LO
(Superseded to 07400106)

Note: (Order as part of kit 5111100. See item 5.)

$2.99

$

In Stock, only 1 left!

0

3

Ariens 01250500

WHEEL, 8.5" WBLM
(Superseded to 01266600)

Note: (Order as part of kit 5111100. See item 5.)

$

$

Not available

4

Ariens 01273900

PLATE, WHEEL GEAR TORQUE

Note: (Order as part of kit 5111100. See item 5.)

$105.99

$

Usually ships in 4-12 days

0

5

Ariens 51111000

ASSY, LM REAR WHEEL

Note: (Contains items 1, 2, 3 and 4)

$

$

Not available

6

Ariens 01263300

WHEEL COVER

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

9

Ariens 01255600

PINION, WBLM DRIVE
(Superseded to 00670700)

$9.99

$

In Stock, Qty 12

0

10

Ariens 06600004

KEY-WDRF .125X.50X.20 (HRDEND)

$2.99

$

In Stock, Qty 15

0

11

Ariens 08300016

SPRING, .134X.180X.144 COMP.

$3.99

$

In Stock, Qty 14

0

12

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 16

0

13

Ariens 01255700

SHAFT, TRANSMISSION OUTPUT

$

$

Not available

14

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 01255251

SUMP, GEARBOX

$40.99

$

Usually ships in 4-12 days

0

16

Ariens 01256400

GASKET, TRANSMISSION

$15.99

$

Usually ships in 4-12 days

0

17

Ariens 51110600

KIT, WBLM TRANS HOUSING

$

$

Not available

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

19

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 01259000

SPACER, IDLER ARM

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 00444400

IDLER, 3L FRONT SIDE .38X1.875

$23.99

$

In Stock, only 1 left!

0

23

Ariens 01258900

SPACER, V-IDLER PULLEY

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07326500

IDLER - FLAT 1.875OD X .75WIDE

$26.99

$

In Stock, Qty 6

0

26

Ariens 01258000

ARM, TRANSMISSION IDLER

$

$

Not available

27

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 05900021

@BLT-HEX .38-16X1.38 GR5 YWZC

$

$

Not available

29

Ariens 01255300

BUSHING, TRANS OUTPUT SHAFT

$6.49

$

Usually ships in 4-12 days

0

30

Ariens 01265600

FINGER, BELT

$7.99

$

Usually ships in 4-12 days

0

31

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 51110700

KIT, WHEEL MOUNT HUB SERVICE

$80.99

$

Usually ships in 4-12 days

0

33

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 51110500

KIT, TRANSMISSION SERVICE

$

$

Not available

35

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

36

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 01265700

FINGER, BELT

$

$

Not available

38

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$6.49

$

In Stock, only 1 left!

0
