911112 (DSP 21) - Ariens 21" Self-Propelled Walk-Behind Mower, 5.5hp Honda (SN: 002000 & Above) Mower Deck And Bagger Parts Diagram

21" Self-Propelled Walk-Behind Mower, 5.5hp Honda

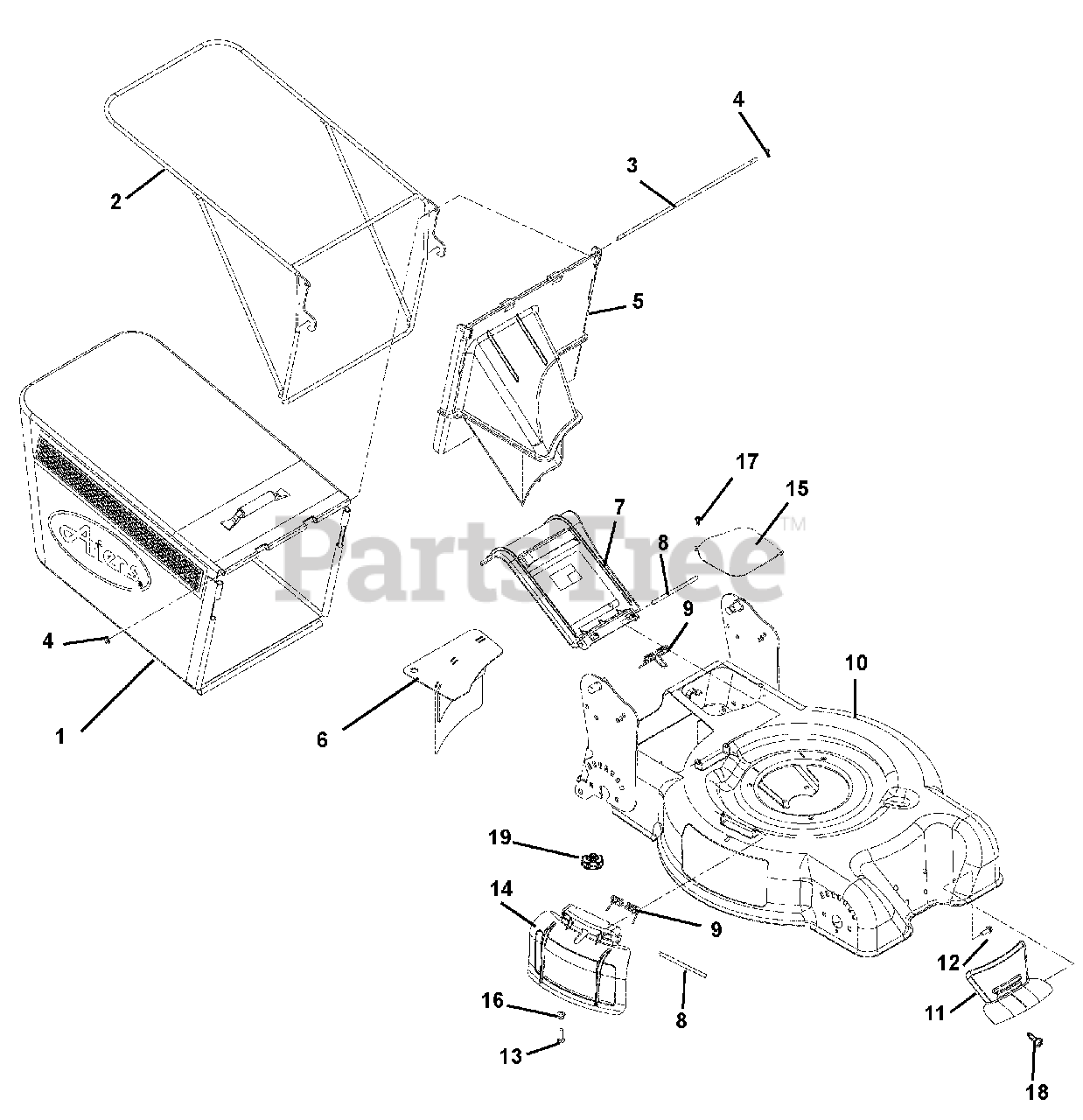

Mower Deck And Bagger Parts Diagram

  • Title
1

Ariens 01250700

WBLM, ARIENS BAGGER
(Superseded to 71105500)

Note: (911111, 112, 113, 115)

$

$

Not available

2

Ariens 01278551

BAGGER FRAME

Note: (911111, 112, 113, 115)

$78.82

$

Usually ships in 4-12 days

0

3

Ariens 01253200

ROD, HINGE

Note: (911111, 112, 113, 115)

$7.32

$

Usually ships in 4-12 days

0

4

Ariens 07027600

NUT-PUSH .25X.50 O.D.

Note: (911111, 112, 113, 115)

$1.96

$

In Stock, Qty 17

0

5

Ariens 01253400

BAGGER DOOR

Note: (911111, 112, 113, 115)

$23.42

$

Usually ships in 4-12 days

0

6

Ariens 01268051

PLUG, MULCH (STEEL)

$71.94

$

Usually ships in 4-12 days

0

7

Ariens 01251400

REAR DISCHARGE COVER

$

$

Not available

8

Ariens 01260900

PIN, HINGE

$9.34

$

Usually ships in 4-12 days

0

9

Ariens 08300035

TORSION SPRING

$14.48

$

Usually ships in 4-12 days

0

10

Ariens 01253059

21" DECK WELDMENT

$

$

Not available

11

Ariens 01264100

GRILL INSERT

$

$

Not available

12

Ariens 07400011

SCR-TAP 12-12X.75 HI-LOW YZ

$

$

Not available

13

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.96

$

In Stock, Qty 19

0

14

Ariens 01260500

MULCH COVER

$35.16

$

Usually ships in 4-12 days

0

14

Ariens 01259200

DISCHARGE CHUTE

Note: (Not Shown)

$51.37

$

In Stock, only 1 left!

0

15

Ariens 01262351

COVER, TRANSMISSION ACCESS

$19.23

$

Usually ships in 4-12 days

0

16

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$1.96

$

In Stock, Qty 17

0

17

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

Note: (911110, 111, 112)

$1.40

$

Usually ships in 4-12 days

0

18

Ariens 07400012

SCREW, SELF DRILL/TAP

$3.30

$

Usually ships in 4-12 days

0

19

Ariens 07500011

KNOB-CLAMPING, .250-20 NYLOC

$

$

Not available
