911121 (SSP 21) - Gravely 21" Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above) Transmission & Height Of Cut Parts Diagram

21" Walk-Behind Mower, 6.5hp Briggs & Stratton

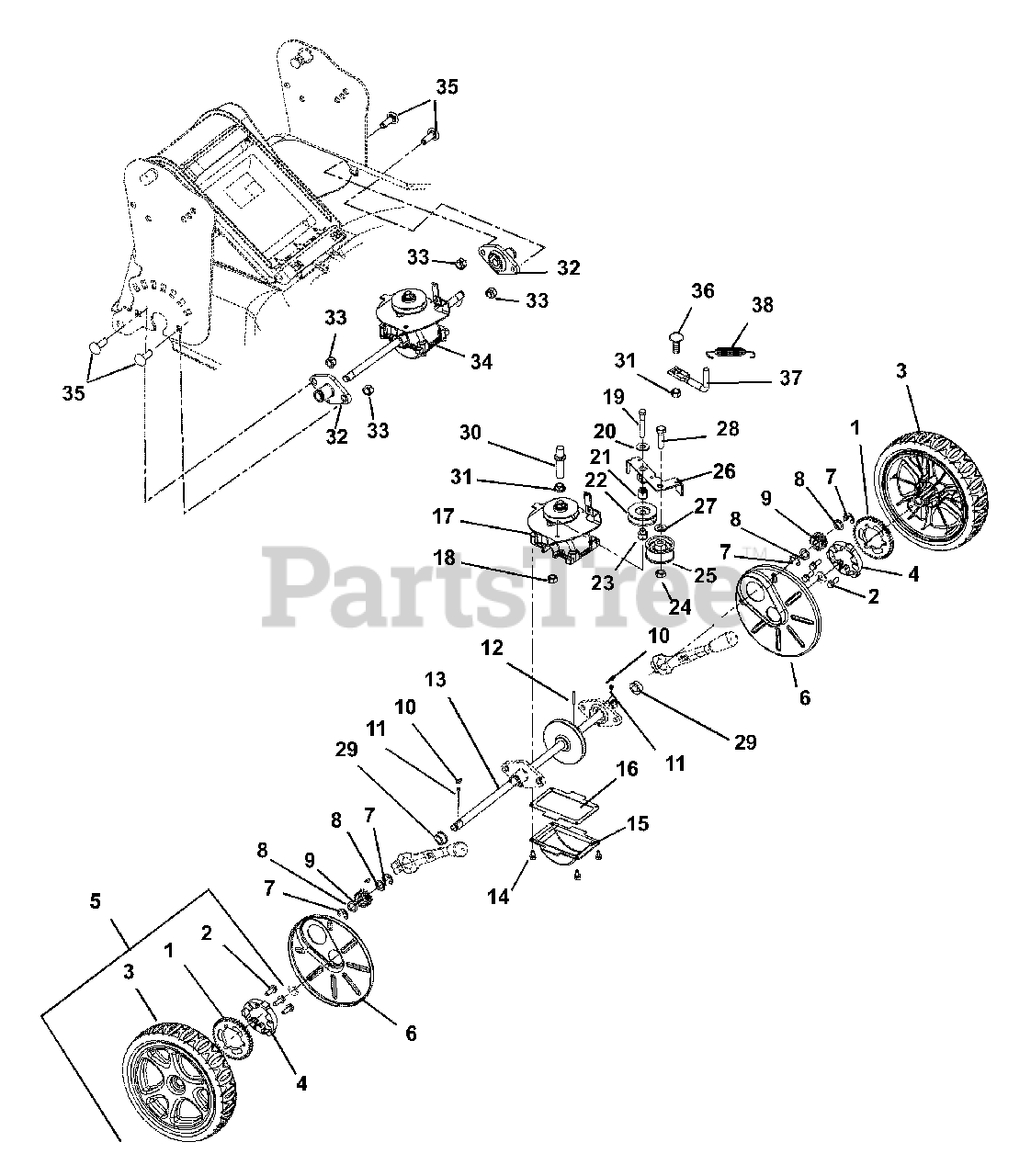

Transmission & Height Of Cut Parts Diagram

  • Title

1

Gravely 01296500

Gear, Wheel

Note: (Order as part of kit 5111100. See item 5.)

$

$

Not available

2

Gravely 07400008

Screw, Tapping .25-15 x .75 Hi-LO Hex Washer Head
(Superseded to 07400106)

Note: (Order as part of kit 5111100. See item 5.)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 01250500

Wheel
(Superseded to 01266600)

Note: (Order as part of kit 5111100. See item 5.)

$

$

Not available

4

Gravely 01273900

Ring, Torque

Note: (Order as part of kit 5111100. See item 5.)

$105.99

$

Usually ships in 4-12 days

0

5

Gravely 51111000

Kit, Assembly, LM Rear Wheel

Note: (Contains items 1, 2, 3 and 4)

$

$

Not available

6

Gravely 01263300

Wheel Cover

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 05710200

Ring, Retaining External .500 x .042

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06400015

Washer, .500 x .750 x .020 Thrust

$1.49

$

In Stock, Qty 20+

0

9

Gravely 01255600

Pinion, WBLM Drive
(Superseded to 00670700)

$9.99

$

In Stock, Qty 12

0

10

Gravely 06600004

Key, Woodruff .125 x .50 x .20

$2.99

$

In Stock, Qty 15

0

11

Gravely 08300016

Spring, .134 x .186 x .144 Compression

$3.99

$

In Stock, Qty 14

0

12

Gravely 05802900

Pin, Roll .156 x 1.00

$0.99

$

In Stock, Qty 16

0

13

Gravely 01255700

Shaft, Transmission Output

$

$

Not available

14

Gravely 07412100

Screw, Tapping 10-24 x .375 Hex Washer Head

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 01255251

Sump, Gearbox

$40.99

$

Usually ships in 4-12 days

0

16

Gravely 01256400

Gasket, Transmission

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 51110600

Kit, WBLM Transmission Housing

$

$

Not available

18

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 6

0

19

Gravely 05967100

Bolt, Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 06435800

Washer, Flat Steel .328 x 1.0 x .094
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 01259000

Spacer, .390 x .75 x .189

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 00444400

Idler, 3L Front Side .38 x 1.875

$23.99

$

In Stock, only 1 left!

0

23

Gravely 01258900

Spacer, Idler Pulley

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07326500

Idler, Flat 1.875OD x .75WIDE

$26.99

$

In Stock, only 4 left!

0

26

Gravely 01258000

Arm, Transmission Idler

$

$

Not available

27

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05900021

Bolt, Hex .38-16 x 1.38 Grade 5

$

$

Not available

29

Gravely 01255300

Bushing, Transmission Output Shaft

$6.49

$

Usually ships in 4-12 days

0

30

Gravely 01265600

Belt, Finger

$7.99

$

Usually ships in 4-12 days

0

31

Gravely 06530100

Nut, Locking Flange .250-20
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 51110700

Kit, Wheel Mount Hub Service

$80.99

$

Usually ships in 4-12 days

0

33

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 51110500

Kit, Transmission Service

$

$

Not available

35

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 01265700

Belt, Finger

$

$

Not available

38

Gravely 08325200

Spring, Tension .051X.60X2.25

$6.49

$

In Stock, only 2 left!

0
