911123 (DESP 21) - Gravely 21" Walk-Behind Mower, 5.5hp Honda, Elect. Start (SN: 000101 & Above) Electrical Harness & Battery Parts Diagram
21" Walk-Behind Mower, 5.5hp Honda, Elect. Start

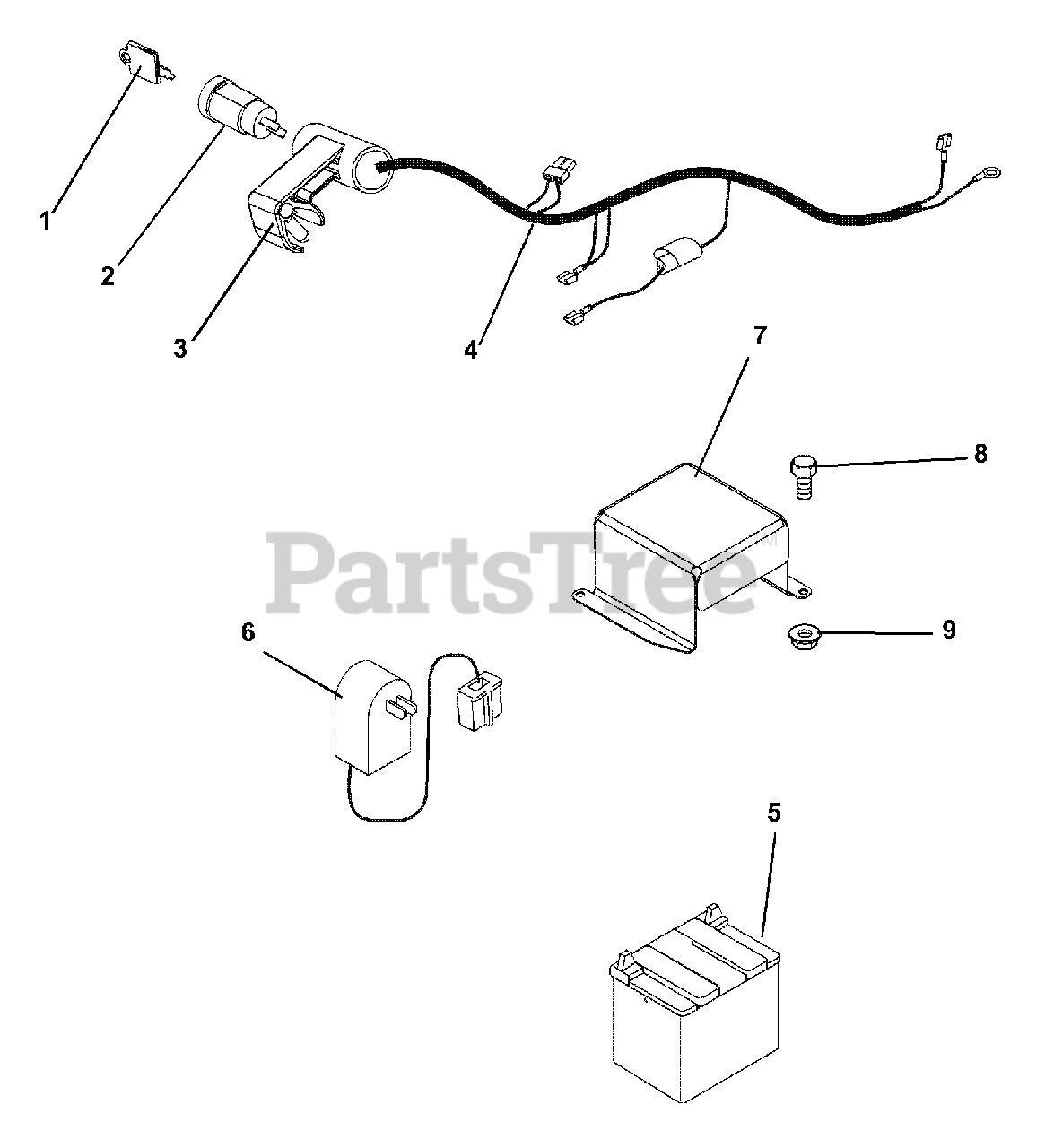

Electrical Harness & Battery Parts Diagram
Gravely 02460700
KEY -W/CAP
$10.99
$
In Stock, Qty 20+
Gravely 01269400
KEYSWITCH
$
$
Not available
Gravely 01269200
SNAP-ON E-START HOUSING
$
$
Not available
Gravely 01268800
HARNESS, WIRE (WBLM)
$
$
Not available
Gravely 01269300
BATTERY - 12V
$54.99
$
Usually ships in 4-12 days
$
$
Not available
Gravely 01269151
COVER, BATTERY
$
$
Not available
Gravely 06200013
BLT-HEX 8-32 X .5 YWZC
$
$
Not available
Gravely 06531300
NUT-LK-NYL 8-32 W/INSTR YWZC
$0.99
$
Usually ships in 4-12 days
