911133 (LM 21 S) - Ariens 21 " Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 000101 - 004999)

21 " Self-Propelled Walk-Behind Mower, 6hp Kawasaki

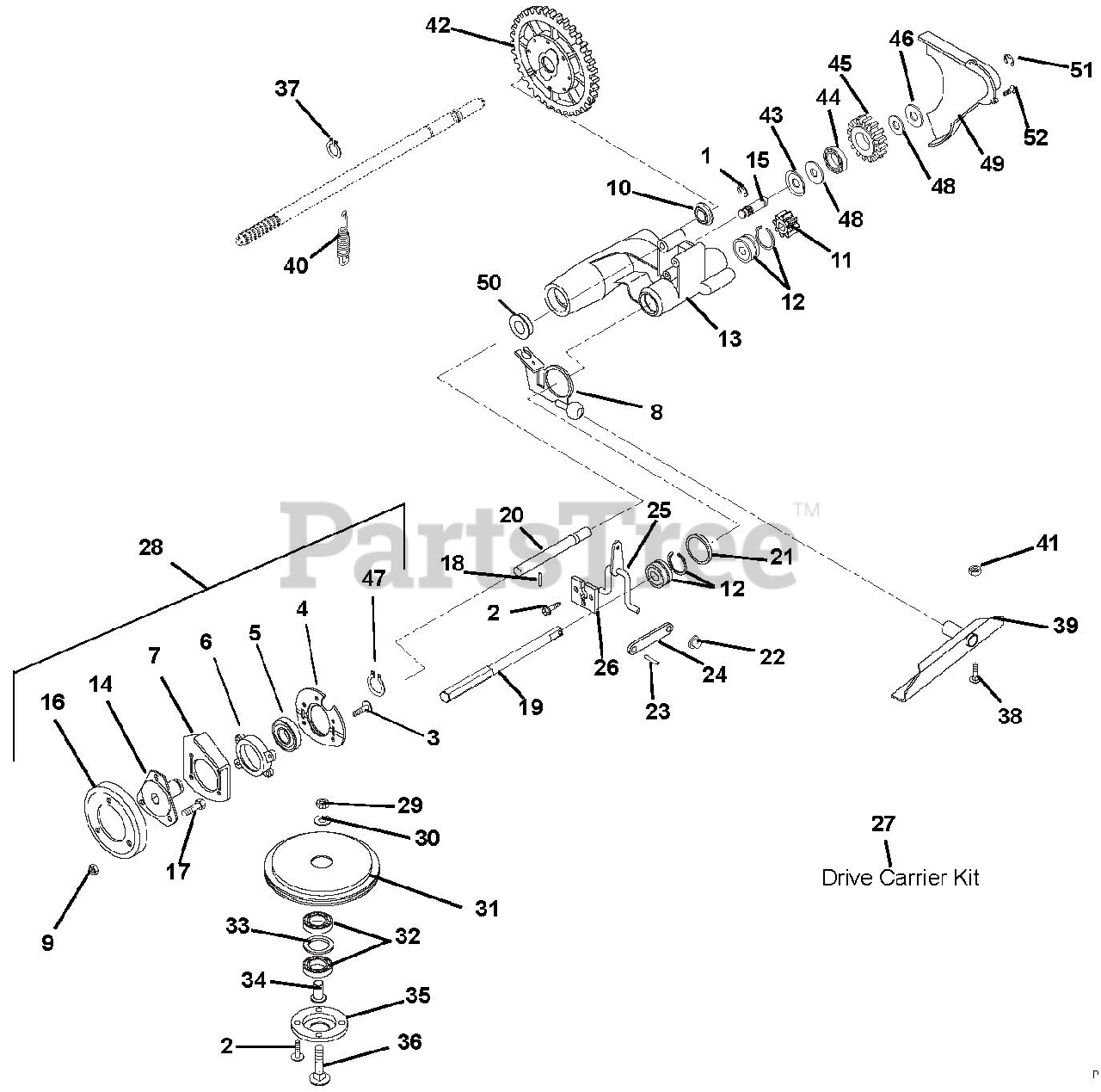

911133 (LM 21 S) - Ariens 21 " Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 000101 - 004999) > Parts Diagrams (6) > Friction Wheel And Drive

  • Title
05705900

1

RG-RTNG-EXT .438X.035

Part# 05705900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07411900

2

@SCR-TAP 12-24X.50 HWH TR YWZC

Part# 07411900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

07415100

3

SCR-TAP 5HX-0.8X16MM H-FL-YWZC

Part# 07415100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01119200

4

BEARING RETAINER

Part# 01119200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.32

05416000

5

BRG-BALL 1.0X2.0X.56 (1641)

Part# 05416000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

01131800

6

BEARING RETAINER

Part# 01131800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00174500

7

PLATE, BEARING

Part# 00174500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

01245700

8

ACTUATOR, WBLM DRIVE

Part# 01245700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.76

06529700

9

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

05417500

10

BRG-BALL .625X1.378X.44

Part# 05417500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

02201101

11

PINION, D-SHAFT

Part# 02201101

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

05480000

12

BRG-BALL .50X1.38X.438 SEALED

Part# 05480000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

01158700

13

DRIVE CARRIER

Part# 01158700 (Superseded to 01140600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $96.15

01133500

14

FRICTION WHEEL HUB

Part# 01133500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

01139700

15

IDLER SHAFT

Part# 01139700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

03248300

16

DISC, FRICTION - 730 MAT'L

Part# 03248300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.84

05947900

17

@BLT-HEX .25-20X.50 GR5 YWZC

Part# 05947900

OEM Warranty Repair Part for Ariens

Not available

05800500

18

PIN-ROLL .188X.88

Part# 05800500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

01281700

19

SHAFT, FRICTION DISK

Part# 01281700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

01125100

20

ROD - GUIDE

Part# 01125100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $23.37

06421600

21

WSHR-FL-STL 1.390X2.00X.020 PL

Part# 06421600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

02215300

22

PUSH NUT, .25

Part# 02215300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05803500

23

PIN-ROLL .125X.50

Part# 05803500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01124200

24

SHIFT LINK

Part# 01124200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.38

01123600

25

SHIFT ARM WELDMENT

Part# 01123600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.39

01125000

26

RETAINER PLATE

Part# 01125000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.32

51108900

27

KIT, LM DRIVE CARRIER

Part# 51108900

Note: (Includes Items 1 - 26)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

51109700

28

KIT, COM. DRIVE CONVERSION

Part# 51109700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $100.56

06529800

29

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06439100

30

WSHR-FL-STL .328X.87X.179 YWZC

Part# 06439100

OEM Warranty Repair Part for Ariens

Not available

01127300

31

FRICTION SHEAVE

Part# 01127300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

05435100

32

BRG-BALL .625X1.375X.43

Part# 05435100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

06420200

33

WSHR-FL-STL 1.062X1.344X.032PL

Part# 06420200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

01127400

34

SPINDLE - BEARING

Part# 01127400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

01127500

35

RETAINER - BEARING

Part# 01127500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.81

06220200

36

@BLT-RDHDSQNK .31-18X1.75 G5YZ

Part# 06220200

OEM Warranty Repair Part for Ariens

Not available

05711900

37

RG-RTNG-EXT .579X.035

Part# 05711900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06212200

38

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

01161951

39

PIVOT, CHANNEL WELDMENT

Part# 01161951

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $48.63

08325200

40

SG-TENS .051X.60X2.25 WLD 7.0

Part# 08325200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06543100

41

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

51102400

42

DIFFERENTIAL ASSEMBLY

Part# 51102400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $167.64

01135100

43

RETAINER

Part# 01135100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $12.24

05408000

44

BRG-BALL .500X1.38X.437

Part# 05408000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

01131700

45

IDLER GEAR

Part# 01131700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

06425300

46

WSHR-FL-STL.531X1.00X.063 YWZC

Part# 06425300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05706200

47

RG-RTNG-EXT 1.00X.042

Part# 05706200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06441100

48

WSHR-FL-STL .52X.827X.062 YWZC

Part# 06441100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01121051

49

COVER, GEAR

Part# 01121051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $37.12

05417600

50

BRG-BALL .625X1.383X.50

Part# 05417600 (Superseded to 05417500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

05705900

51

RG-RTNG-EXT .438X.035

Part# 05705900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07411900

52

@SCR-TAP 12-24X.50 HWH TR YWZC

Part# 07411900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40
