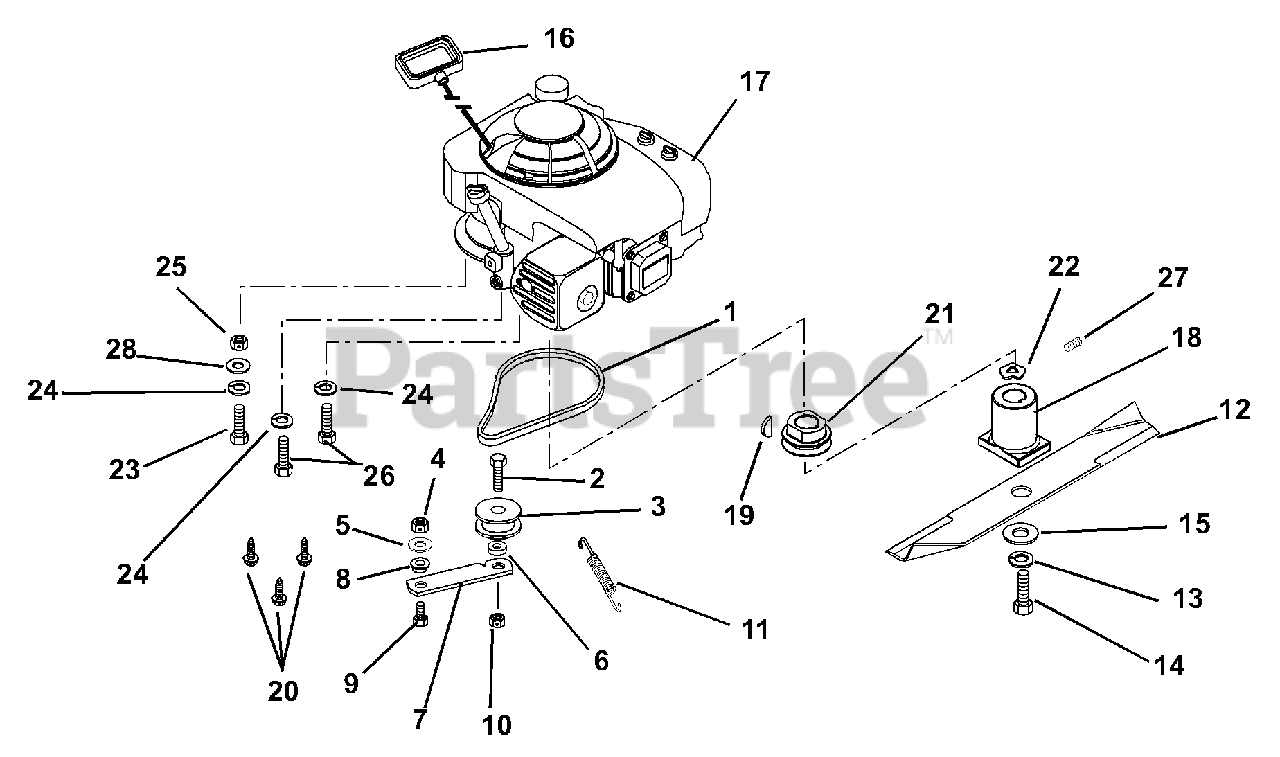

911135 (LM 21) - Gravely 21" Push Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Push Walk-Behind Mower, 6hp Kawasaki

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07217100

V-BELT, 3L-COGGED

$35.99

$

In Stock, Qty 20+

0

2

Gravely 05962800

@BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

3

Gravely 07313300

IDLER-FLAT 1.75 X .47

$36.99

$

In Stock, Qty 17

0

4

Gravely 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05533300

BSHG-SLV .469 X .750 X .430

$3.99

$

In Stock, Qty 10

0

7

Gravely 01141200

IDLER ARM

$23.99

$

In Stock, only 2 left!

0

8

Gravely 05515400

BSHG-FLG .325X.501X.250X1.120

$3.99

$

In Stock, Qty 10

0

9

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$3.49

$

In Stock, Qty 10

0

11

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 20+

0

12

Gravely 01137000

21" MOWER BLADE

Note: (911094, 135, 136, 137, 138, 140)

$25.99

$

In Stock, Qty 20+

0

12

Gravely 01182400

BLADE, 21" MOWER TUNGSTEN
(Superseded to 01137000)

$25.99

$

In Stock, Qty 20+

0

13

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

14

Gravely 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 4 left!

0

15

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

16

Gravely 01157100

HANDLE, RECOIL START

$8.49

$

In Stock, only 2 left!

0

17

Gravely 08268700

ENGINE, B&S QUANTUM 6.5HP

Note: (911138)

$

$

Not available

17

Gravely 08270500

ENGINE - HONDA 5.5 HP OHV

Note: (911094, 140)

$

$

Not available

17

Gravely 08200026

ENGINE, KAWASAKI 6.0 CONSUMER

$

$

Not available

17

Gravely 08200048

6.0 HP KAWI U.S. COMMERICIAL

Note: (911040)

$

$

Not available

18

Gravely 09733200

ADAPTER-SINTERED IRON LM
(Superseded to 09735100)

$46.99

$

Usually ships in 4-12 days

0

18

Gravely 09733300

ADAPTER - BLADE HUB

Note: (911094. 140)

$40.99

$

Usually ships in 4-12 days

0

19

Gravely 06600900

KEY-WDRF .156X.625X.25 SAE 6

Note: (911136, 137, 138)

$2.49

$

In Stock, Qty 11

0

20

Gravely 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (911135, 136, 137, 138)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

Note: (911136, 137, 138)

$17.99

$

Usually ships in 4-12 days

0

21

Gravely 09733400

PULLEY - UNV DRIVE - STEEL

Note: (911094, 140)

$105.99

$

Usually ships in 4-12 days

0

22

Gravely 01192900

WASHER-WAVE .885X1.311X.125

Note: (911135, 136, 137, 138)

$5.49

$

In Stock, Qty 6

0

23

Gravely 05963500

BLT-HEX .31-24X1.50 GR5 YWZC

Note: (911094, 140)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (911094, 140)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

Note: (911094, 140)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 05963600

BLT-HEX .31-24X1.00 GR5 YWZC

Note: (911094, 140)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 06005500

SCR-SET .31-18X.38 SKHCUPDL

Note: (911094, 140)

$3.49

$

In Stock, only 2 left!

0

28

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (911094, 140)

$0.99

$

In Stock, Qty 20+

0
