911142 (LM 21) - Ariens 21" Push Walk-Behind Mower, Briggs & Stratton Quantum, CARB (SN: 005000 & Above) Handlebar And Controls Parts Diagram

21" Push Walk-Behind Mower, Briggs & Stratton Quantum, CARB

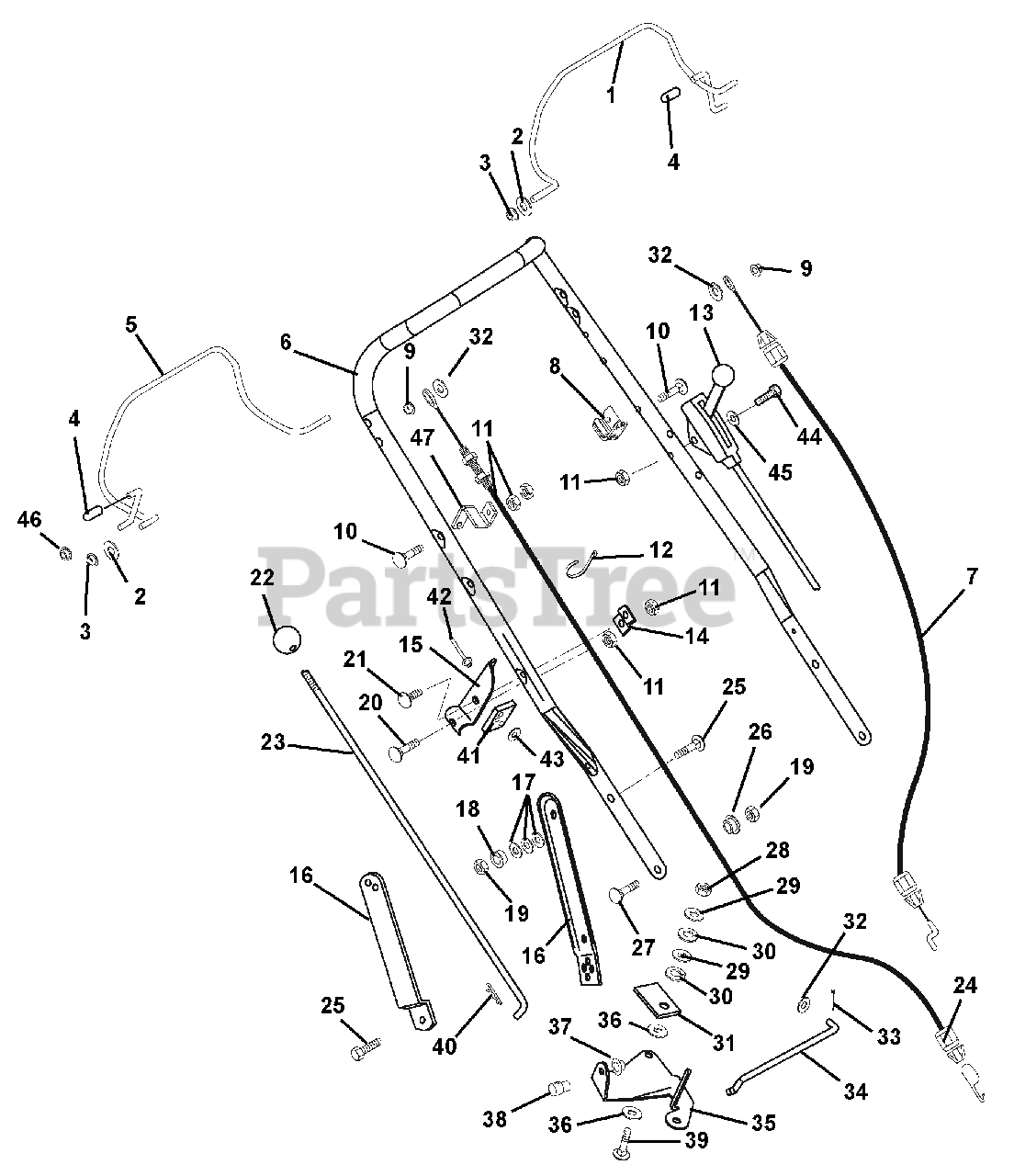

Handlebar And Controls Parts Diagram

  • Title
1

Ariens 01245100

BAIL, ENGINE WELDMENT
(Superseded to 01245151)

$55.29

$

Usually ships in 4-12 days

0

2

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (911133, 134, 143, 144)

$2.52

$

In Stock, Qty 20+

0

2

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (911086, 142)

$2.52

$

In Stock, Qty 20+

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

Note: (911133, 134, 143, 144)

$3.63

$

In Stock, Qty 20+

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

Note: (911086, 142)

$3.63

$

In Stock, Qty 20+

0

4

Ariens 07517000

CAP, VINYL, .25 ID

Note: (911133, 134, 143, 144)

$3.30

$

In Stock, Qty 8

0

4

Ariens 07517000

CAP, VINYL, .25 ID

Note: (911086, 142)

$3.30

$

In Stock, Qty 8

0

5

Ariens 01245200

BAIL, TRACTION (WLDMENT)
(Superseded to 01245251)

Note: (911133, 134, 143, 144)

$73.73

$

In Stock, only 4 left!

0

6

Ariens 01245300

BAR, WBLM HANDLE
(Superseded to 01245351)

$155.51

$

Usually ships in 4-12 days

0

7

Ariens 06900015

CABLE, ENGINE (BRIGGS/GXV)

Note: (911086, 142)

$20.07

$

In Stock, only 1 left!

0

7

Ariens 06900014

CABLE, WBLM ENGINE

Note: (911133, 143)

$22.30

$

Usually ships in 4-12 days

0

7

Ariens 01292500

CABLE, ENGINE - ADJUSTABLE

Note: (911134, 144)

$33.48

$

In Stock, Qty 5

0

8

Ariens 01245600

ANCHOR, WBLM ENGINE CABLE
(Superseded to 01245651)

$17.55

$

Usually ships in 4-12 days

0

9

Ariens 02215300

PUSH NUT, .25

Note: (911133, 134, 143, 144)

$1.68

$

In Stock, Qty 20+

0

9

Ariens 02215300

PUSH NUT, .25

Note: (911086, 142)

$1.68

$

In Stock, Qty 20+

0

10

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (911133, 134, 143, 144)

$2.80

$

Usually ships in 4-12 days

0

10

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (911086, 142)

$2.80

$

Usually ships in 4-12 days

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911133, 134, 143, 144)

$2.24

$

In Stock, Qty 20+

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911086, 142)

$2.24

$

In Stock, Qty 20+

0

12

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

13

Ariens 06948100

CABLE, LOCKOUT CONTROL

Note: (911134, 144)

$67.02

$

In Stock, only 1 left!

0

14

Ariens 01141851

BRACE, SPEED CONTROL

Note: (911133, 134, 143, 144)

$18.67

$

Usually ships in 4-12 days

0

15

Ariens 01137451

BRACKET, SPEED CONTROL
(Superseded to 51119700)

Note: (911133, 134, 143, 144)

$20.24

$

Usually ships in 4-12 days

0

16

Ariens 01150051

LINK, HANDLEBAR ADJUSTMENT LH

$28.40

$

Usually ships in 4-12 days

0

16

Ariens 01150151

LINK, HANDLEBAR ADJUSTMENT RH

$23.37

$

In Stock, only 1 left!

0

17

Ariens 01178700

WASHER, BELLEVILLE YWZC

$1.96

$

Usually ships in 4-12 days

0

18

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

$3.52

$

In Stock, Qty 11

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.52

$

In Stock, Qty 20+

0

20

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$2.80

$

In Stock, Qty 20+

0

21

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.96

$

In Stock, Qty 20+

0

22

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

Note: (911133, 134, 143, 144)

$21.07

$

Usually ships in 4-12 days

0

23

Ariens 01140800

ROD-SPEED CONTROL

Note: (911133, 134, 143, 144)

$32.42

$

Usually ships in 4-12 days

0

24

Ariens 06900013

CABLE, WBLM TRACTION

Note: (911133, 134, 143, 144)

$49.14

$

In Stock, Qty 10

0

25

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.80

$

In Stock, Qty 16

0

26

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$3.52

$

In Stock, only 2 left!

0

27

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.24

$

In Stock, Qty 10

0

28

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (911133, 134, 143, 144)

$2.24

$

In Stock, Qty 20+

0

29

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (911133, 134, 143, 144)

$2.52

$

In Stock, Qty 20+

0

30

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

Note: (911133, 134, 143, 144)

$2.24

$

Usually ships in 4-12 days

0

31

Ariens 01154800

PRESSURE FLANGE

Note: (911133, 134, 143, 144)

$6.71

$

Usually ships in 4-12 days

0

32

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (911133, 134, 143, 144)

$1.96

$

In Stock, Qty 20+

0

33

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

Note: (911133, 134, 143, 144)

$3.58

$

Usually ships in 4-12 days

0

34

Ariens 01126100

SHIFT LINK

Note: (911133, 134, 143, 144)

$21.07

$

Usually ships in 4-12 days

0

35

Ariens 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

Note: (911133, 134, 143, 144)

$20.24

$

Usually ships in 4-12 days

0

36

Ariens 01123800

FRICTION WASHER

Note: (911133, 134, 143, 144)

$3.63

$

In Stock, Qty 20+

0

37

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: (911133, 134, 143, 144)

$2.52

$

In Stock, Qty 20+

0

38

Ariens 01139800

SWIVEL

Note: (911133, 134, 143, 144)

$19.23

$

Usually ships in 4-12 days

0

39

Ariens 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

Note: (911133, 134, 143, 144)

$3.63

$

In Stock, Qty 12

0

40

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

Note: (911133, 134, 143, 144)

$1.96

$

In Stock, Qty 20+

0

41

Ariens 01173800

SUPPORT PAD
(Superseded to 04760400)

$3.30

$

In Stock, only 1 left!

0

42

Ariens 06815700

RVT .187X.575 DOME AL BLACK

$1.68

$

In Stock, only 2 left!

0

43

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$2.52

$

Usually ships in 4-12 days

0

44

Ariens 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

Note: (911134, 144)

$1.99

$

Usually ships in 4-12 days

0

45

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

Note: (911134, 144)

$1.73

$

In Stock, only 2 left!

0

46

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.24

$

In Stock, Qty 20+

0

47

Ariens 01245400

ANCHOR, CABLE
(Superseded to 01245451)

Note: (911133, 134, 143, 144)

$24.54

$

Usually ships in 4-12 days

0
