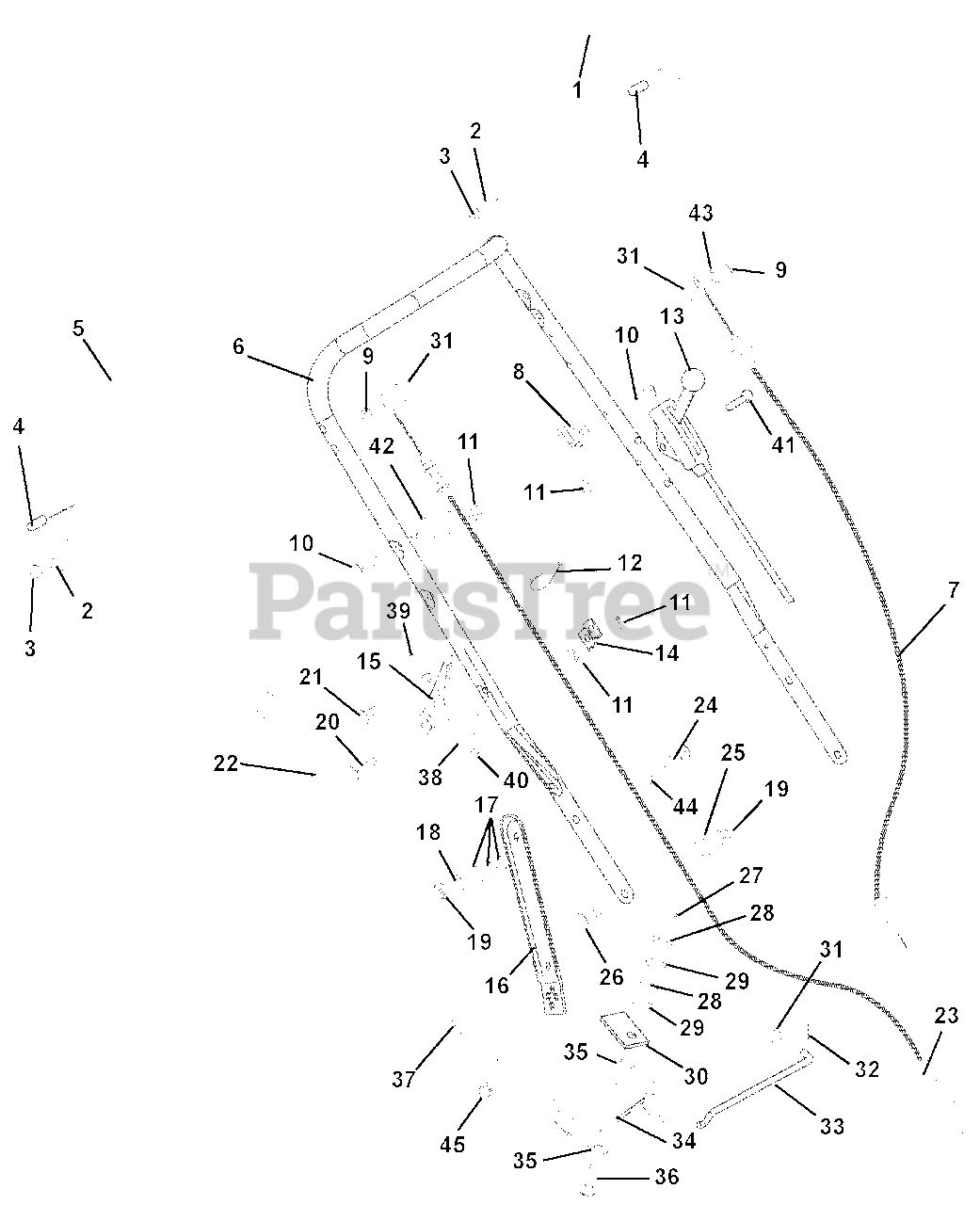

911171 (LM 21) - Gravely 21" Push Walk-Behind Mower, Kohler XT-7 (SN: 022000 & Above) Handlebar And Controls Parts Diagram

21" Push Walk-Behind Mower, Kohler XT-7

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 01245151

BAIL, WBLM ENGINE

$57.99

$

Usually ships in 4-12 days

0

2

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (911196, 197)

$0.99

$

In Stock, Qty 20+

0

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (911171)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05514500

BSHG-FLG .325X.444X.440X.560

Note: (911196, 197)

$3.99

$

In Stock, Qty 20+

0

Gravely 05514500

BSHG-FLG .325X.444X.440X.560

Note: (911171)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 07517000

CAP, VINYL, .25 ID

Note: (911196, 197)

$3.99

$

In Stock, Qty 5

0

Gravely 07517000

CAP, VINYL, .25 ID

Note: (911171)

$3.99

$

In Stock, Qty 5

0

5

Gravely 01245251

BAIL, WBLM TRACTION

Note: (911196, 197)

$76.99

$

In Stock, only 1 left!

0

6

Gravely 01330051

HANDLE BAR, CLASSIC LM21

$310.99

$

In Stock, only 1 left!

0

7

Gravely 06900014

CABLE, WBLM ENGINE

Note: (911196, 171)

$26.99

$

In Stock, Qty 5

0

Gravely 01292500

CABLE, ENGINE - ADJUSTABLE

Note: (911197)

$44.99

$

In Stock, Qty 5

0

8

Gravely 01245651

BRKT, ENGINE CABLE ANCHOR

$13.99

$

Usually ships in 4-12 days

0

9

Gravely 02215300

PUSH NUT, .25

Note: (911196, 197)

$2.49

$

In Stock, Qty 11

0

10

Gravely 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5YZ

Note: (911196, 197)

$2.99

$

In Stock, Qty 9

0

Gravely 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5YZ

Note: (911171)

$2.99

$

In Stock, Qty 9

0

11

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911196)

$0.99

$

In Stock, Qty 20+

0

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911171)

$0.99

$

In Stock, Qty 20+

0

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911197)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07517300

CABLE TIE LG 5-1/2

Note: (911197)

$1.49

$

Usually ships in 4-12 days

0

Gravely 07517300

CABLE TIE LG 5-1/2

Note: (911196, 171)

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 06948100

CABLE, LOCKOUT CONTROL

Note: (911197)

$71.99

$

In Stock, only 2 left!

0

14

Gravely 01141851

BRACE, SPEED CONTROL

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 04761851

BRKT, SPD CONTROL SLOTTED
(Superseded to 51119700)

$

$

Not available

16

Gravely 01150051

LINK, HANDLEBAR ADJUSTMENT LH

$40.99

$

Usually ships in 4-12 days

0

Gravely 01150151

LINK, HANDLEBAR ADJUSTMENT RH

$27.99

$

Usually ships in 4-12 days

0

17

Gravely 01178700

WASHER, BELLEVILLE YWZC

$2.49

$

In Stock, Qty 13

0

18

Gravely 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, only 2 left!

0

19

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06200010

BLT-RDHDSQNK .25-20X1.38 GR5YZ
(Superseded to 06200331)

$1.99

$

In Stock, Qty 5

0

21

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

22

Gravely 04732100

SPEED CONTROL ROD

Note: (911196, 197)

$34.99

$

Usually ships in 4-12 days

0

23

Gravely 06900013

CABLE, WBLM TRACTION

Note: (911196, 197)

$65.99

$

In Stock, Qty 10

0

24

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

26

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (911196, 197)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (911196, 197)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

Note: (911196, 197)

$4.99

$

In Stock, Qty 17

0

30

Gravely 01154800

PRESSURE FLANGE

Note: (911196, 197)

$8.49

$

Usually ships in 4-12 days

0

31

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (911196, 197)

$0.99

$

In Stock, Qty 20+

0

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (911171)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06712400

PIN-CTR .06X.50 EXTPRSQCT YWZ

Note: (911196, 197)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 01126100

SHIFT LINK

Note: (911196, 197)

$22.99

$

Usually ships in 4-12 days

0

34

Gravely 04756800

CRANK, SPEED CONTROL BELL

Note: (911196, 197)

$22.99

$

Usually ships in 4-12 days

0

35

Gravely 01123800

FRICTION WASHER

Note: (911196, 197)

$4.99

$

In Stock, only 2 left!

0

36

Gravely 06222200

BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

Note: (911196, 197)

$2.99

$

In Stock, Qty 20+

0

37

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

Note: (911196, 197)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 04760400

PAD, RUBBER SUPPORT

Note: (911196, 197)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 06815700

RVT .187X.575 DOME AL BLACK

Note: (911196, 197)

$1.49

$

Usually ships in 4-12 days

0

40

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

Note: (911196, 197)

$1.49

$

Usually ships in 4-12 days

0

41

Gravely 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

Note: (911197)

$2.99

$

Usually ships in 4-12 days

0

42

Gravely 01245451

BRKT, TRACTION CABLE ANCHOR

Note: (911196, 197)

$29.99

$

Usually ships in 4-12 days

0

43

Gravely 05717600

RG-RTNG-EXT .250X.010

Note: (911171)

$0.99

$

In Stock, Qty 8

0

44

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 9

0

45

Gravely 08300432

SPRING, EXTENSION

Note: (911196, 197)

$3.99

$

In Stock, only 2 left!

0
