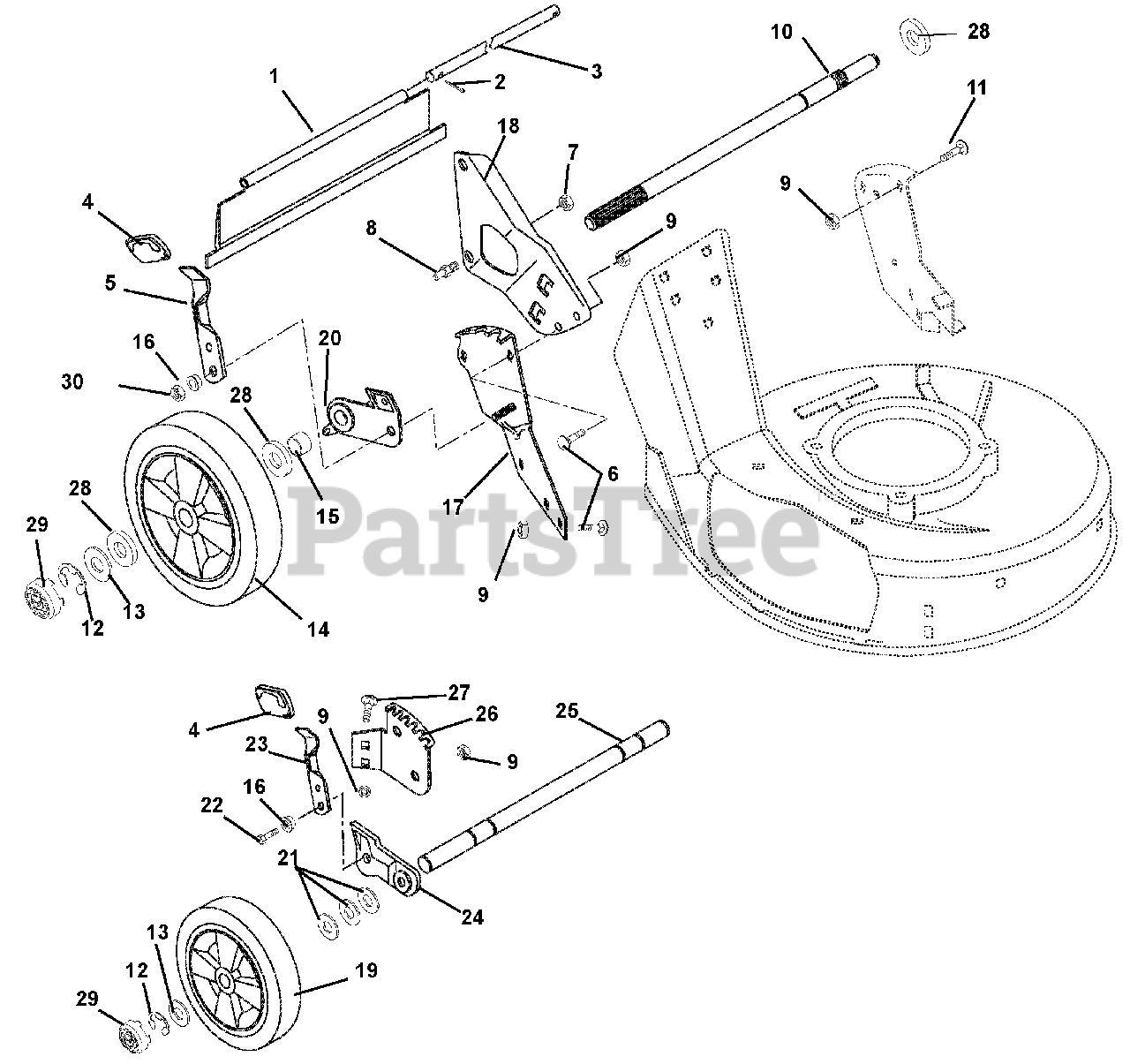

911171 (LM 21) - Gravely 21" Push Walk-Behind Mower, Kohler XT-7 (SN: 022000 & Above) Wheels And Adjusters Parts Diagram

21" Push Walk-Behind Mower, Kohler XT-7

Wheels And Adjusters Parts Diagram

  • Title

1

Gravely 07522300

REAR PROTECTIVE GUARD, S.P.

Note: (911196, 197)

$46.99

$

Usually ships in 4-12 days

0

1

Gravely 07522400

REAR PROTECTIVE GUARD, PUSH

Note: (911171)

$36.99

$

Usually ships in 4-12 days

0

2

Gravely 06712400

PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 01140067

ROD

$47.99

$

Usually ships in 4-12 days

0

4

Gravely 07513600

KNOB

Note: (911171, 196)

$8.49

$

In Stock, only 1 left!

0

4

Gravely 07513600

KNOB

Note: (911197)

$8.49

$

In Stock, only 1 left!

0

5

Gravely 01242000

LEVER, HEIGHT ADJUSTMENT

$25.99

$

In Stock, only 2 left!

0

6

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01167100

HANDLEBAR STUD

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (911171)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (911196)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (911197)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 01149500

REAR AXLE,5/8 DIA

Note: (911196, 197)

$144.99

$

Usually ships in 4-12 days

0

10

Gravely 01171900

REAR AXLE-PUSH MOWER MM

Note: (911171)

$52.99

$

Usually ships in 4-12 days

0

11

Gravely 06200007

BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

Note: (911171)

$2.99

$

In Stock, only 2 left!

0

12

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (911197)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (911196, 171)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

Note: (911171)

$3.99

$

In Stock, Qty 9

0

13

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

Note: (911197)

$3.99

$

In Stock, Qty 9

0

14

Gravely 07100936

WHEEL, 10.3" OD X 2" WIDE LHS
(Superseded to 07101035)

Note: (911196, 197)

$50.99

$

In Stock, Qty 7

0

14

Gravely 51116200

KIT, REAR WHEEL REPLCMNT-PUSH

Note: (911171)

$112.99

$

In Stock, only 1 left!

0

14

Gravely 07100937

WHEEL, 10.3" OD X 2" WIDE RHS
(Superseded to 07101038)

Note: (991196, 197)

$50.99

$

In Stock, Qty 6

0

15

Gravely 01149600

SPACER TUBE, SELF PROPEL

Note: (911196, 197)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 01149800

SPACER TUBE PUSH RH

Note: (Left hand side only.) (911171)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

Note: (911196, 171)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

Note: (911197)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 01154251

QUADRANT, REAR LH

$63.99

$

Usually ships in 4-12 days

0

17

Gravely 01154351

QUADRANT, REAR RH

$56.99

$

Usually ships in 4-12 days

0

18

Gravely 01137251

RH HANDLEBAR MTG. BRKT

$52.99

$

In Stock, only 3 left!

0

18

Gravely 01137151

LH HANDLEBAR MTG. BRKT

$56.99

$

In Stock, only 1 left!

0

19

Gravely 07100935

WHEEL, 7.5" OD X 1.75" WIDE

$27.99

$

In Stock, Qty 9

0

20

Gravely 04089400

REAR BRACKET & BEARING ASSY LH

Note: (911196, 197)

$50.99

$

Usually ships in 4-12 days

0

20

Gravely 01150400

REAR BRACKET & BEARING ASSY RH

Note: (911196, 197)

$124.99

$

Usually ships in 4-12 days

0

20

Gravely 01131200

REAR BRACKET & BEARING ASSEMBL

Note: (911171)

$54.99

$

Usually ships in 4-12 days

0

20

Gravely 01131300

REAR BRACKET & BEARING ASSEMBL

Note: (911171)

$62.99

$

Usually ships in 4-12 days

0

21

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

Note: (911196, 171)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (911196, 171)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 01120000

FRONT HEIGHT ADJUSTMENT LEVER

Note: (911196, 171)

$20.99

$

Usually ships in 4-12 days

0

24

Gravely 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

Note: (911196, 171)

$85.99

$

Usually ships in 4-12 days

0

24

Gravely 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

Note: (911196, 171)

$65.99

$

In Stock, only 1 left!

0

25

Gravely 01168900

FRONT AXLE

Note: (911196, 171)

$65.99

$

Usually ships in 4-12 days

0

26

Gravely 01154051

FRONT QUADRANT, LH

Note: (911196, 171)

$52.99

$

In Stock, only 1 left!

0

26

Gravely 01154151

FRONT QUADRANT, RH

Note: (911196, 171)

$

$

Not available

27

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: (911196, 171)

$3.49

$

In Stock, only 4 left!

0

28

Gravely 05532400

SPACER .531 X 1.00 X .225

Note: (911171)

$3.99

$

In Stock, only 1 left!

0

29

Gravely 07100939

HUB CAP, LM WHEEL

Note: (911196, 197)

$5.49

$

Usually ships in 4-12 days

0

29

Gravely 07100939

HUB CAP, LM WHEEL

Note: (911171)

$5.49

$

Usually ships in 4-12 days

0

30

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (911171)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

Note: (911196)

$3.99

$

In Stock, Qty 9
