911172 (XD3 LM P) - Gravely 21" Push Walk-Behind Mower, Subaru (SN: 000101 - 020192) Engine_Kit Parts Diagram

21" Push Walk-Behind Mower, Subaru

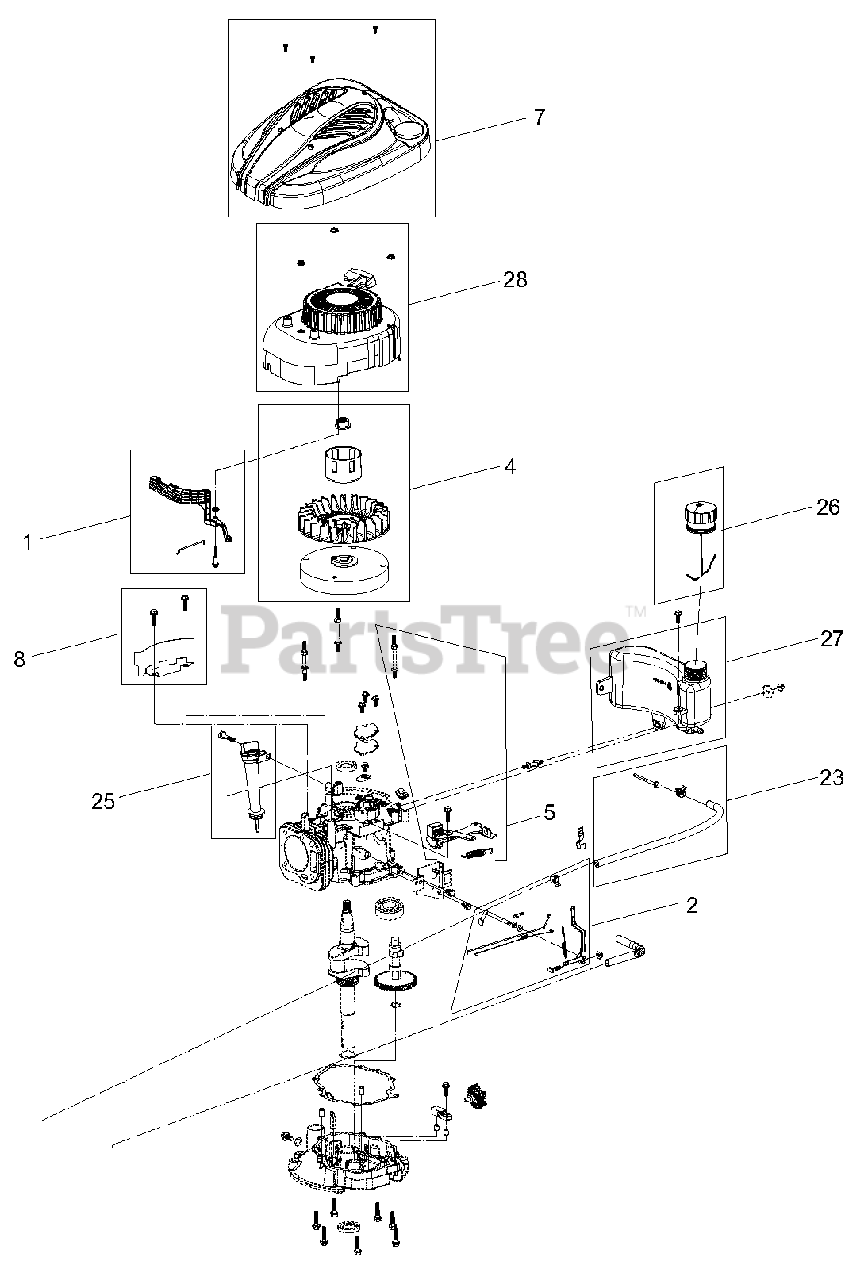

Engine_Kit Parts Diagram

  • Title

1

Gravely 21110201

AIR VANE CHOKE KIT

$11.99

$

In Stock, only 1 left!

0

2

Gravely 21110202

GOVERNOR ARM KIT

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 21110203

MUFFLER AND SHIELD KIT

$

$

Not available

4

Gravely 21110204

FLYWHEEL AND FAN KIT – RECOIL START

$71.99

$

In Stock, only 1 left!

0

5

Gravely 21110205

KIT BRAKE ASSEMBLY RECOIL

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 21110207

KIT ARIENS STYLE

$36.99

$

Usually ships in 4-12 days

0

8

Gravely 21110208

KIT FLYWHEEL SHIELD

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 21110209

THERMAL CHOKE CONTROL KIT

$20.99

$

In Stock, only 1 left!

0

10

Gravely 21110210

KIT-AIR CLEANER ASM, 2 HINGE

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 21110211

CARBURETOR COMPLETE KIT

$57.99

$

In Stock, only 1 left!

0

12

Gravely 21110212

IGNITION COIL KIT

$25.99

$

Usually ships in 4-12 days

0

13

Gravely 21110213

SEAL AND GASKET KIT (NOT SHOWN)

Note: (NOT SHOWN)

$37.99

$

Usually ships in 4-12 days

0

18

Gravely 21110218

KIT-VALVE COVER (1P65FA)

Note: (1P65FA)

$26.99

$

Usually ships in 4-12 days

0

19

Gravely 21110219

LOCK-THROTTLE

$4.49

$

Usually ships in 4-12 days

0

20

Gravely 21110220

STUD-INTAKE

$4.49

$

Usually ships in 4-12 days

0

21

Gravely 21100220

AIR FILTER, FOAM PRE-FILTER

$3.99

$

In Stock, Qty 8

0

22

Gravely 21100121

AIR FILTER ELEMENT

$9.49

$

In Stock, Qty 13

0

23

Gravely 21110225

FUEL LINE WITH STRAINER

$17.99

$

Usually ships in 4-12 days

0

24

Gravely 21100123

SPARK PLUG

$5.99

$

In Stock, Qty 11

0

25

Gravely 21110221

OIL FILTER TUBE/CAP
(Superseded to 21110223)

$7.49

$

In Stock, only 2 left!

0

26

Gravely 21110222

GAS CAP WITH CANISTER

$26.99

$

Usually ships in 4-12 days

0

27

Gravely 21110234

FUEL TANK

$79.99

$

Usually ships in 4-12 days

0

28

Gravely 21110224

RECOIL ASSEMBLY

$25.99

$

In Stock, only 4 left!

0

29

Gravely 21110001

ENGINE, SERVICE, AC SERIES (NOT SHOWN)

Note: (NOT SHOWN)

$409.99

$

Usually ships in 4-12 days

0
