911172 (XD3 LM P) - Gravely 21" Push Walk-Behind Mower, Subaru (SN: 020517 - 020692) Axles And Height Of Cut Parts Diagram

21" Push Walk-Behind Mower, Subaru

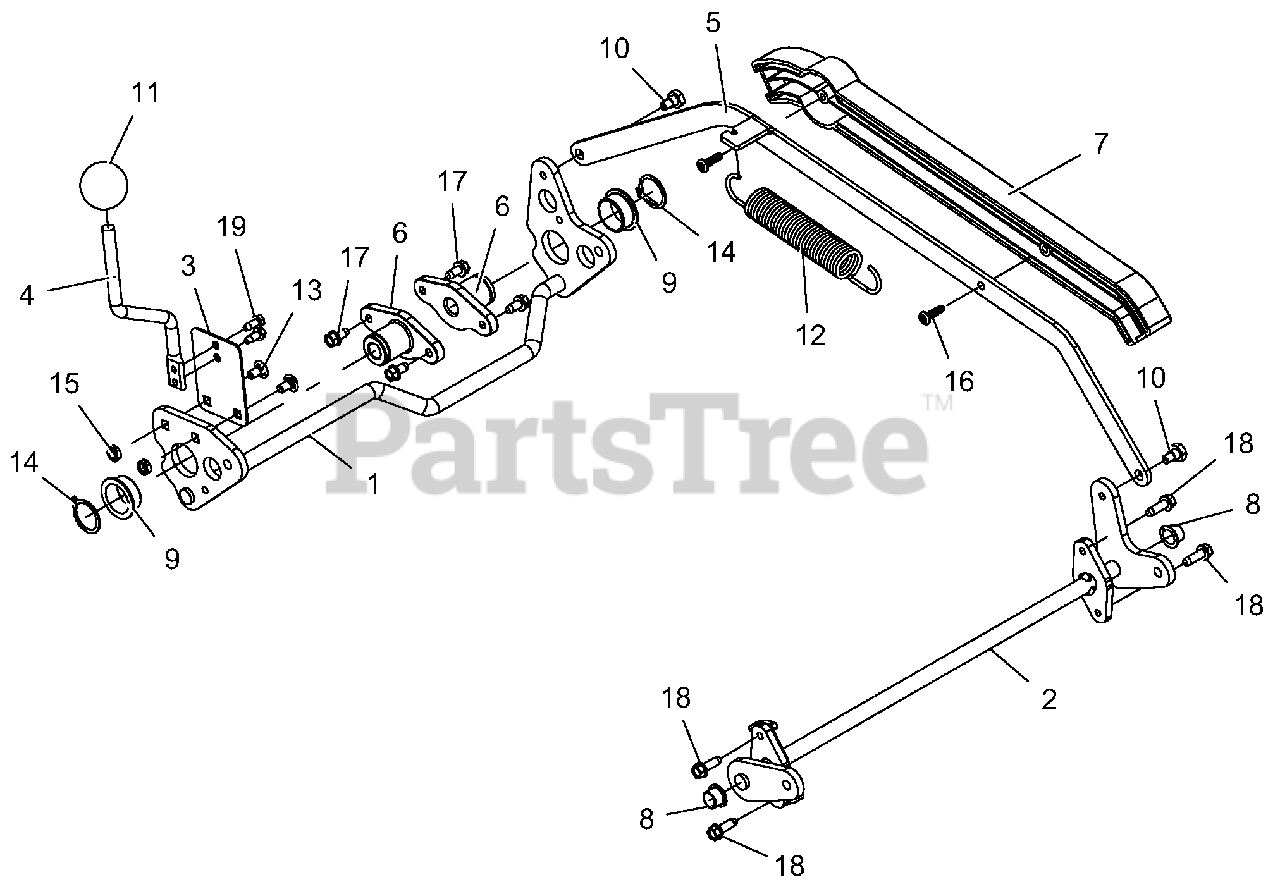

Axles And Height Of Cut Parts Diagram

  • Title

1

Gravely 04515967

WLDMT, LM REAR AXLE

$

$

Not available

2

Gravely 04516067

WLDMT, LM FRONT AXLE

$105.99

$

In Stock, only 1 left!

0

3

Gravely 04513751

PLATE, HOC SPRING

$34.99

$

In Stock, only 1 left!

0

4

Gravely 04516167

LEVER, HOC ADJUST

$149.99

$

Usually ships in 4-12 days

0

5

Gravely 04516253

LINK, HOC CONNECT

$56.99

$

Usually ships in 4-12 days

0

6

Gravely 04516900

HUB, LM REAR AXLE

$27.99

$

In Stock, Qty 15

0

7

Gravely 04534200

COVER, LINK ROD

$10.99

$

Usually ships in 4-12 days

0

8

Gravely 05500026

BUSHING, POLYLINER - .50 SPLIT

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 05501124

BSHG, FLANGE 1.0 x 1.125 x .50 x 1.375

$3.99

$

In Stock, Qty 20+

0

10

Gravely 07001708

BOLT, SHLDR .320 x .210 x .25-20 SELF-TAPPING

$2.99

$

In Stock, only 2 left!

0

11

Gravely 07533500

KNOB, BALL - BLACK 1.47" .375-16

$10.99

$

In Stock, only 1 left!

0

12

Gravely 08316800

SPRG, EXTENSION

$35.99

$

In Stock, only 1 left!

0

13

Gravely 06220600

BLT-RDHDSQNK .25-20 x .50 G5 Y
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05706200

RG-RTNG-EXT 1.00 x .042

$2.99

$

In Stock, Qty 18

0

15

Gravely 06500635

@NUT-LK-CTR-JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 07400101

SCR-TAP #12-14 x .75 PLASTITE BLZC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07400034

SCR-TAP .25-20 x .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07400111

SCR-TAP .25-20 x .75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, only 2 left!

0

19

Gravely 07411900

SCR-TAP 12-24 x .50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 5

0
