911174 (XD3 LM SP) - Gravely 21" Walk-Behind Mower, Subaru (SN: 000101 - 021283) Engine_Blade Parts Diagram

21" Walk-Behind Mower, Subaru

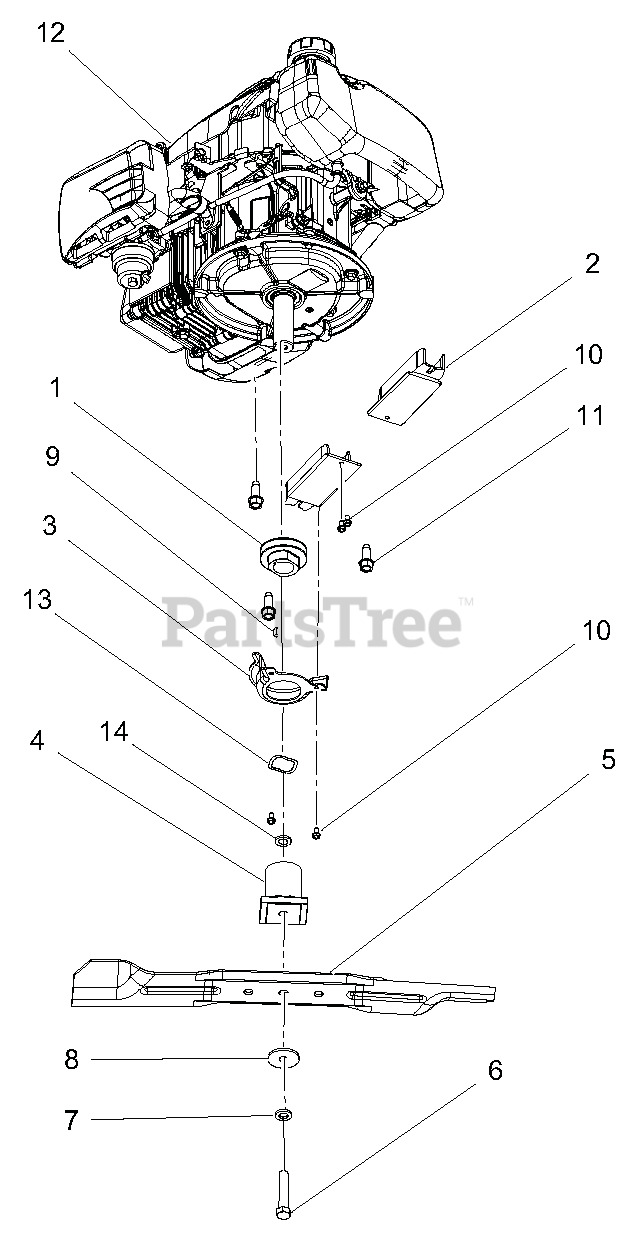

Engine_Blade Parts Diagram

  • Title

1

Gravely 04527000

PULLEY, GROUND DRIVE, LM

Note: (911174, 178)

$29.99

$

Usually ships in 4-12 days

0

2

Gravely 04533700

GUIDE, BELT INNER
(Superseded to 04733800)

$10.99

$

In Stock, Qty 11

0

3

Gravely 04533851

GUIDE, BELT CRANK

Note: (911174, 178)

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 04539400

ADAPTER, BLADE

$19.99

$

Usually ships in 4-12 days

0

5

Gravely 04544400

BLADE, MOWER 21" HIGH LIFT

$25.99

$

In Stock, Qty 20+

0

6

Gravely 05901515

BLT-HEX .4375-20X2.25 GR8 YWZ

$4.99

$

In Stock, only 3 left!

0

7

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06400925

WSHR-FL-STL .4375X1.50X.125 YZ

$

$

Not available

9

Gravely 06600219

KEY-SQ .188X.188X.625

Note: (911174, 178)

$2.49

$

In Stock, only 2 left!

0

10

Gravely 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

Note: (911174, 178)

$3.99

$

In Stock, Qty 12

0

10

Gravely 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

Note: (911172)

$3.99

$

In Stock, Qty 12

0

11

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 08200825

ENGINE, SUBARU 175CC VERT

Note: (911174)

$

$

Not available

12

Gravely 08200827

ENGINE, SUBARU 175CC VERT. ES

Note: (911178) N/S

$

$

Not available

12

Gravely 21110001

ENGINE,SERVICE,AC SERIES

Note: (911172) N/S

$450.99

$

Usually ships in 4-12 days

0

13

Gravely 09250700

WASHER - WAVE 1.09X1.37X.016

Note: (911174, 178)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06400926

WSHR-FL-STL .459X.750X.105 YZC

Note: (ENGINE S/N 0-1014400), 911178 (ENGINE S/N 0-1014670)

$5.49

$

Usually ships in 4-12 days

0
