911177 (LMSP) - Ariens Razor 21" Self-Propelled Walk-Behind Mower, BBC (SN: 055000 & Above) Engine Kit Components Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, BBC

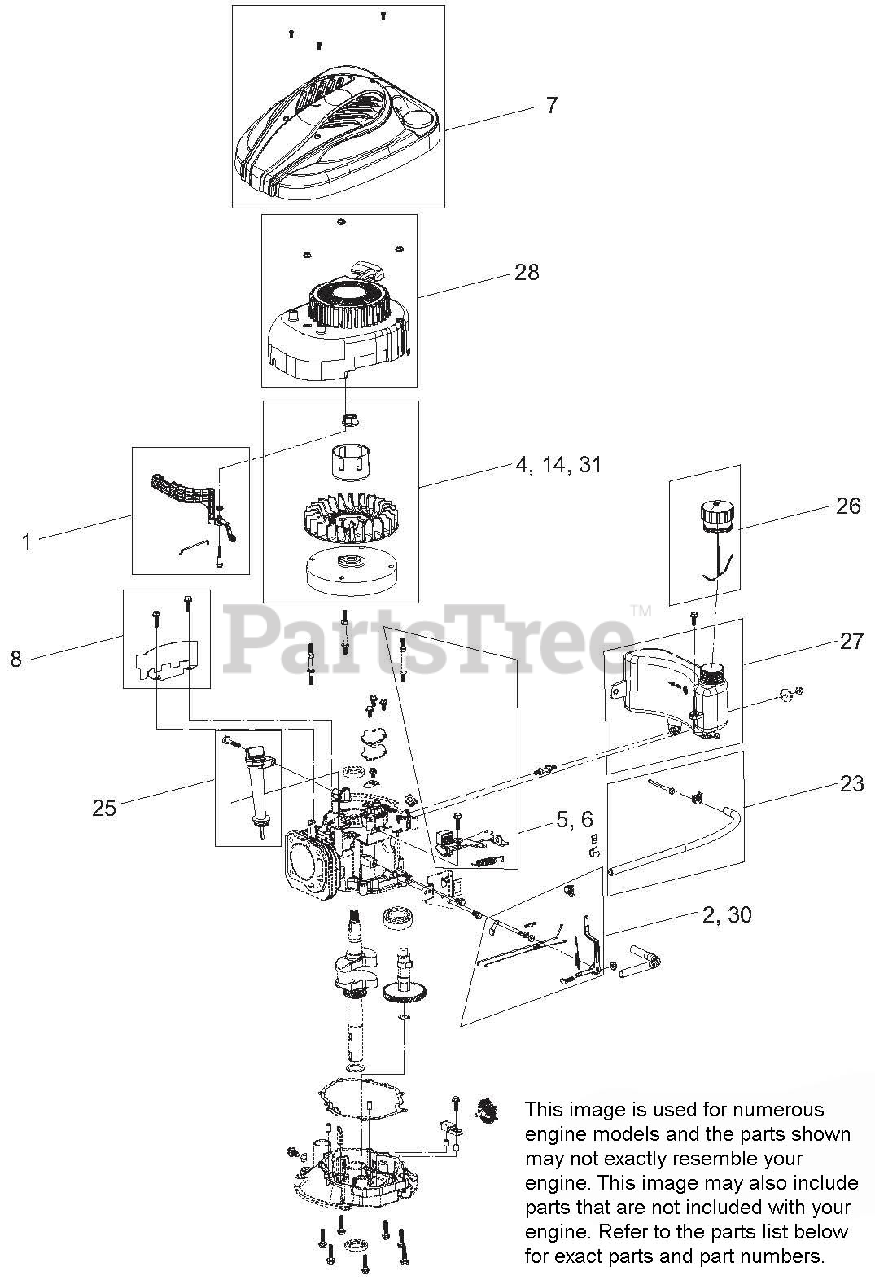

Engine Kit Components Parts Diagram

  • Title
1

Ariens Part# 21110201

KIT, AIR VANE CHOKE - SVC
Usually ships in 5 to 11 days

$

$9.78

0

7

Ariens Part# 21110207

KIT, ARIENS STYLE - SVC
Usually ships in 5 to 11 days

$

$30.69

0

8

Ariens Part# 21110208

KIT, FLYWHEEL SHIELD - SVC
Usually ships in 5 to 11 days

$

$6.09

0

23

Ariens Part# 21110225

KIT, FUEL LINE W/FILTER - SVC
Usually ships in 5 to 11 days

$

$9.78

0

25

Ariens Part# 21110221

DIPSTICK, OIL - SVC
(Superseded to 21110223)
Usually ships in 5 to 11 days

$

$6.09

0

26

Ariens Part# 21110223

TUBE, OIL DIPSTICK - SVC
Usually ships in 5 to 11 days

$

$6.09

0

27

Ariens Part# 21110234

ASM, FUEL TANK W/HARDWARE
Usually ships in 5 to 11 days

$

$67.64

0

28

Ariens Part# 21110224

KIT, RECOIL - SVC
Usually ships in 1 day

$

$18.95

0

30

Ariens Part# 21100301

KIT, GOVERNOR ARM (BBC)
Usually ships in 5 to 11 days

$

$35.16

0

30

Ariens Part# 21110235

KILL SWITCH, ENGINE, BBC
Usually ships in 5 to 11 days

$

$10.29

0

31

Ariens Part# 21100302

KIT, FLYWHEEL AND FAN (BBC)
Usually ships in 5 to 11 days

$

$62.16

0
