911178 (XD3 LM SPE) - Gravely 21" Walk-Behind Mower, Electric Start (SN: 020805 - 021132) Handlebar and Controls Parts Diagram

21" Walk-Behind Mower, Electric Start

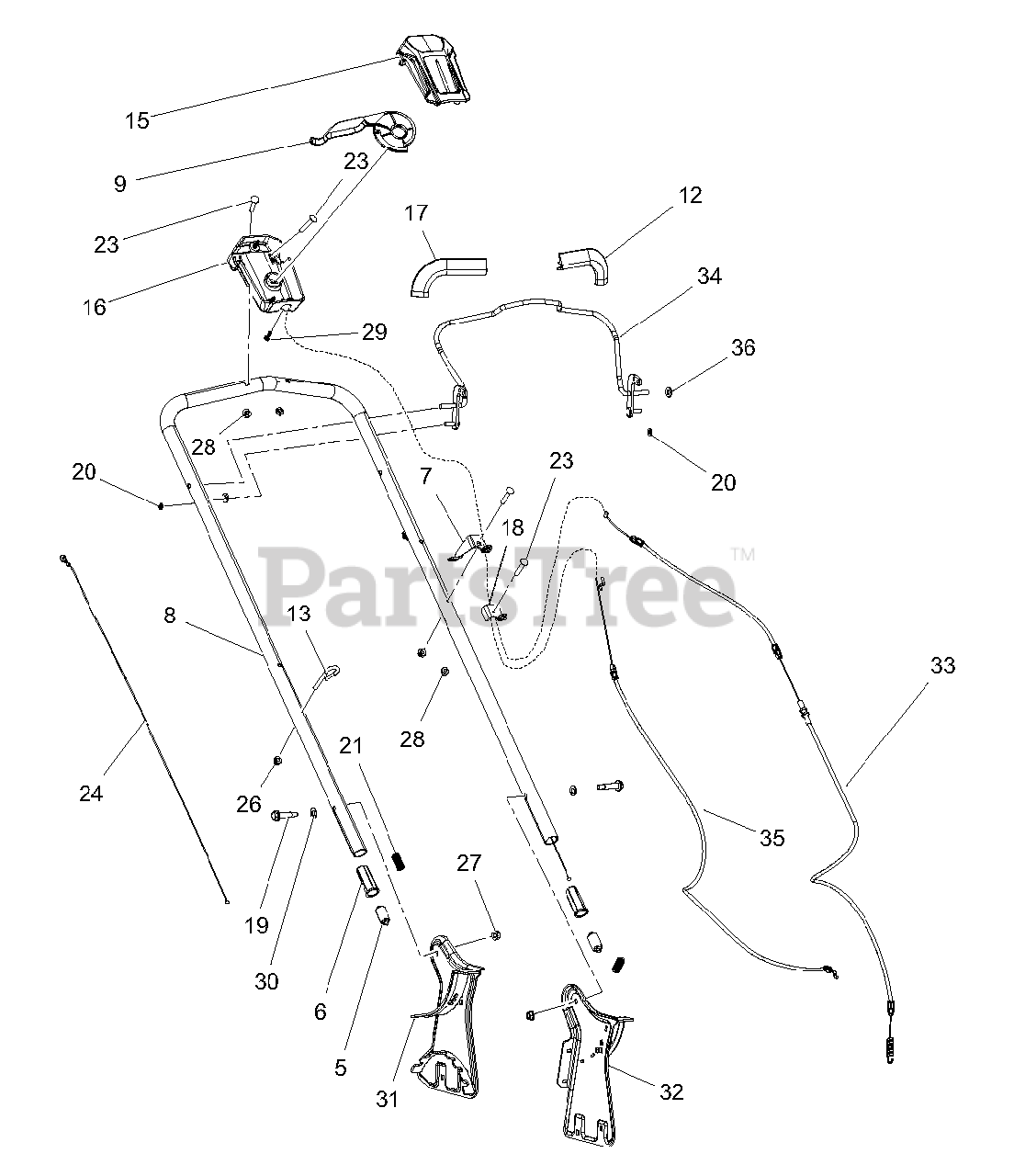

Handlebar and Controls Parts Diagram

  • Title

5

Gravely 04521400

PIN, LM HANDLEBAR LOCKING

$7.99

$

In Stock, Qty 12

0

6

Gravely 04528600

HANDLEBAR ADJUSTMENT INSERT

$3.99

$

In Stock, Qty 15

0

7

Gravely 04533651

BRKT, CABLE ANCHOR

$45.99

$

Usually ships in 4-12 days

0

8

Gravely 04535351

HANDLEBAR,

$

$

Not available

9

Gravely 04535400

HANDLE, DRIVE CONTROL

$5.99

$

In Stock, Qty 20+

0

12

Gravely 04535600

GUARD, FINGER - LH

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 04535767

GUIDE, RECOIL ROPE

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 04549000

HOUSING, UPPER DRIVE CONTROL

$6.99

$

In Stock, Qty 8

0

16

Gravely 04549100

FRONT SQUEEZE BOX

$11.99

$

In Stock, Qty 12

0

17

Gravely 04551100

GUARD, FINGER - RH

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 04575351

BRKT, CABLE - DRIVE

$23.99

$

Usually ships in 4-12 days

0

19

Gravely 07001709

BLT, SHLDR .50 X 1.30 X .38-16

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 07027600

PUSH-NUT 1/4

$2.49

$

In Stock, Qty 11

0

21

Gravely 08300028

SPRG, COMPRESSION

$4.99

$

In Stock, Qty 8

0

23

Gravely 06222300

BLT-RDHDSQNK-GR5-Y
(Superseded to 06200331)

$1.49

$

In Stock, Qty 11

0

24

Gravely 06900528

ADJUSTABLE HANDLEBAR CABLE

$6.99

$

In Stock, only 1 left!

0

26

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

27

Gravely 06543000

NUT,LK-TOP-FLG

$

$

Not available

28

Gravely 06543500

Nut-Hex Top Lock Flange
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

29

Gravely 07400101

SCR-TAP #12-14X.75 PLASTITE BLZC

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06400840

WSHR-FL-STL .385x.745x.030 YWZC
(Superseded to 06401107)

$2.49

$

In Stock, only 1 left!

0

31

Gravely 04516351

WLDMT, RH SIDE PLATE

$190.99

$

Usually ships in 4-12 days

0

32

Gravely 04516451

WLDMT, LH SIDE PLATE

$51.99

$

Usually ships in 4-12 days

0

33

Gravely 06900535

CABLE, DRIVE CONTROL

$36.99

$

In Stock, Qty 7

0

34

Gravely 04535553

BAIL, OPC

$90.99

$

Usually ships in 4-12 days

0

35

Gravely 06900529

CABLE, OPC

$12.99

$

In Stock, Qty 5

0

36

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0
