911179 (LMSPE) - Ariens Razor 21" Self-Propelled Walk-Behind Mower (SN: 026090 - 026505) Electrical Components Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower

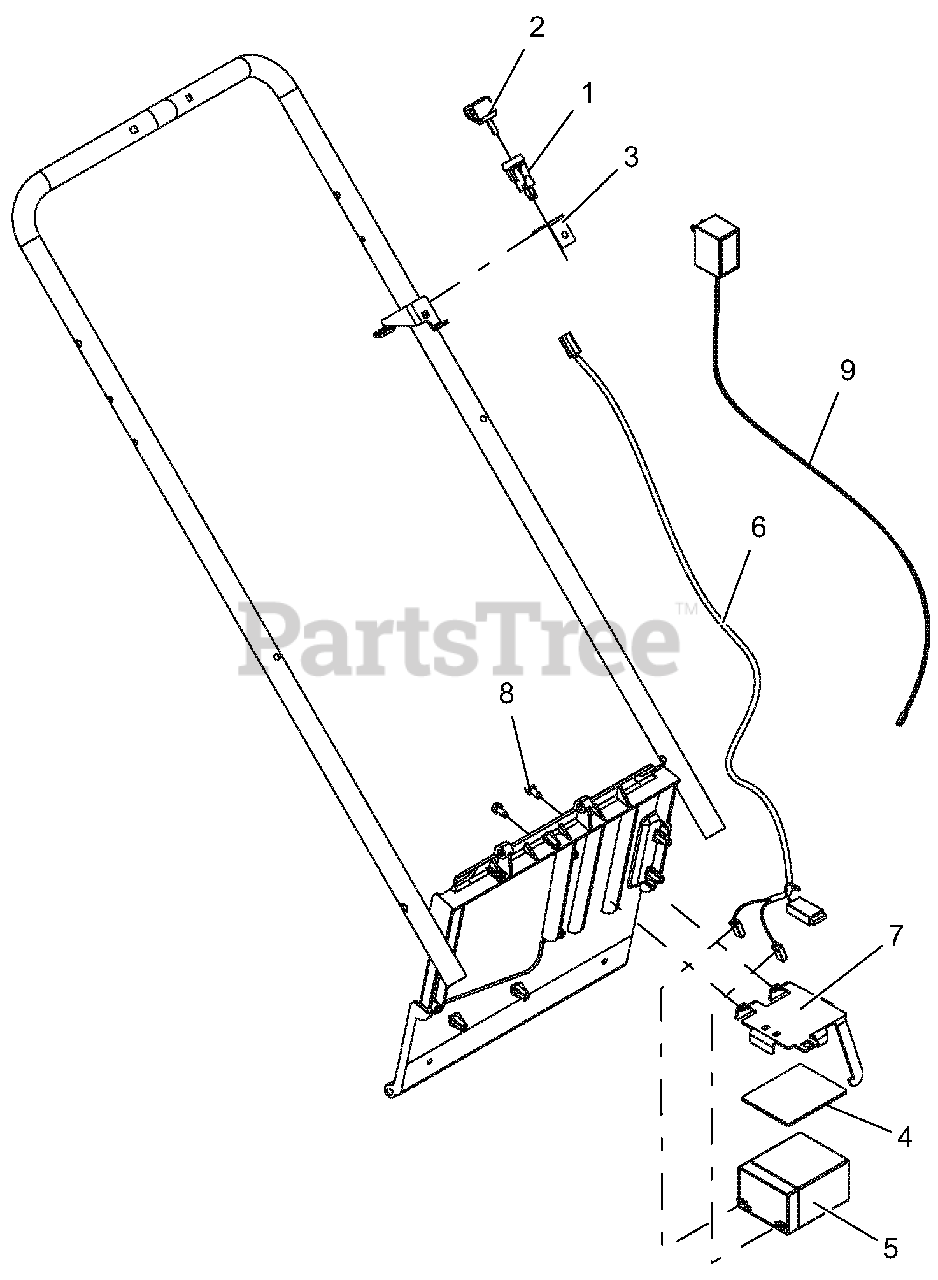

Electrical Components Parts Diagram

  • Title

1

Ariens 04536900

SWITCH, KEY

$10.99

$

Usually ships in 4-12 days

0

2

Ariens 04556300

KEYS, IGNITION

$6.99

$

In Stock, only 3 left!

0

3

Ariens 04573351

BRKT, KEY SWITCH

$79.99

$

Usually ships in 4-12 days

0

4

Ariens 04762500

PAD, BATTERY, LM

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 04765800

BATTERY, AGM, 2.9AH, GNRL PRPS

$49.99

$

In Stock, only 2 left!

0

6

Ariens 04770500

HARNESS, ELEC START
(Superseded to 04825800)

$35.99

$

Usually ships in 4-12 days

0

7

Ariens 04772951

BRKT, BATTERY HOLD DOWN

Note: (BLACK)

$58.99

$

Usually ships in 4-12 days

0

8

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 04537000

CHARGER, BATTERY

$31.99

$

In Stock, only 2 left!

0
