911181 (LMSP) - Ariens Razor 21" Self-Propelled Walk-Behind Mower (SN: 000101 - 020742) Transmission (911175, 179, 181) and Height of Cut Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower

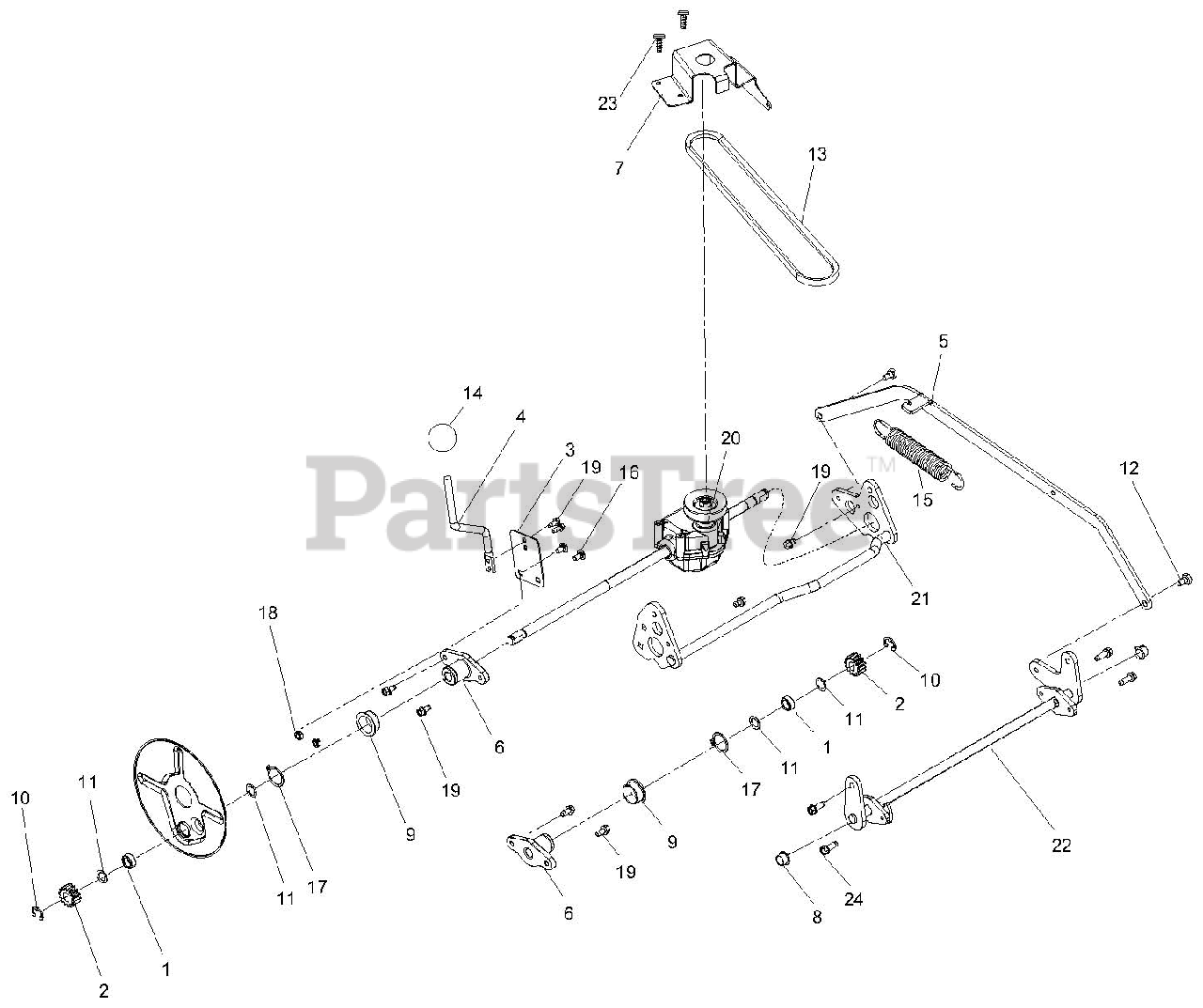

Transmission (911175, 179, 181) and Height of Cut Parts Diagram

  • Title

1

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

Note: (911175, 179, 181)

$3.99

$

In Stock, Qty 18

0

2

Ariens 04507500

GEAR, PINION, LM WHEEL DRIVE

Note: (911175, 179, 181)

$7.49

$

In Stock, Qty 20+

0

3

Ariens 04513751

PLATE, HOC SPRING

$34.99

$

In Stock, only 1 left!

0

4

Ariens 04516167

LEVER, HOC ADJUSTMENT

$149.99

$

Usually ships in 4-12 days

0

5

Ariens 04516259

LINK, HOC CONNECT

$63.99

$

Usually ships in 4-12 days

0

6

Ariens 04516900

HUB, LM REAR AXLE

$27.99

$

In Stock, Qty 20+

0

7

Ariens 04534951

BRKT, BELT GUIDE

Note: (911175, 179, 181)

$

$

Not available

8

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

9

Ariens 05501124

BSHG-FLG 1.0X1.125X.50X1.375 R

$3.99

$

In Stock, Qty 20+

0

10

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (911175, 179, 181)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06400015

WASHER, .500X.750X.020 THRUST

Note: (911175, 179, 181)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 07001708

BOLT, SHLDR .320X.210X.25-20

$2.99

$

In Stock, only 2 left!

0

13

Ariens 07200633

V-BELT, 3L-WRAPPED

Note: (911175, 179, 181)

$18.99

$

In Stock, Qty 12

0

14

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$10.99

$

In Stock, only 2 left!

0

15

Ariens 08316800

SG-TENS .121X1.00X6.5 WLD 12

$35.99

$

In Stock, only 1 left!

0

16

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 04509200

TRANSAXLE, AUTOMATIC, LM, 9:1

Note: (911175, 179, 181)

$83.99

$

In Stock, Qty 10

0

21

Ariens 04515967

WMT,RR AXL(SEE BULLETIN B2119)

$

$

Not available

22

Ariens 04516067

WMT, LM FRONT AXLE

$105.99

$

In Stock, only 1 left!

0

23

Ariens 07400112

SCR-TAP 10-14X.75PLSTITE BLKOX

Note: (911175, 179, 181)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0
