911187 (LM 21 SW) - Gravely 21" Walk-Behind Mower with Front Swivel Wheels (SN: 000101 & Above) Swivel Wheels And Brackets Parts Diagram

21" Walk-Behind Mower with Front Swivel Wheels

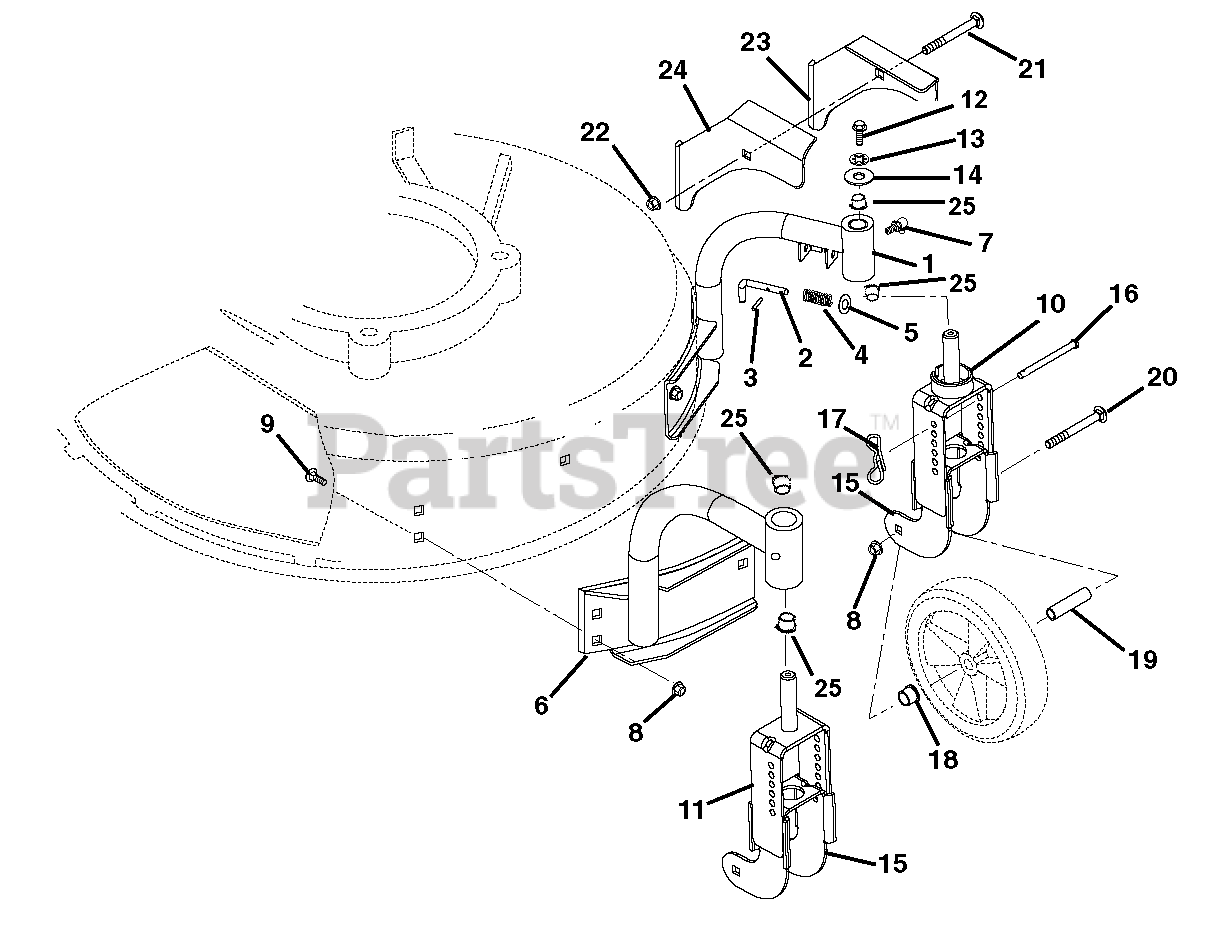

Swivel Wheels And Brackets Parts Diagram

  • Title

1

Gravely 01197053

Weldment, Left Hand Mount

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 01196900

Pin, Lockout

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 05801000

Pin, Roll .094 x .50

$0.99

$

In Stock, only 1 left!

0

4

Gravely 08337300

Spring, Compression - Swivel Lockout

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

6

Gravely 01197653

Weldment, Right Hand Mount

$168.99

$

Usually ships in 4-12 days

0

7

Gravely 07012600

Fitting, Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

8

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

9

Gravely 06222000

Bolt, Round Head Square Neck .31-18 x .50 Grade 5
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

10

Gravely 01196753

Yoke, Left Hand Outer

$100.99

$

Usually ships in 4-12 days

0

11

Gravely 01197453

Yoke, Right Hand Outer

$56.99

$

Usually ships in 4-12 days

0

12

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

13

Gravely 06308000

Washer, Locking .25 x .062 Regular

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 06426600

Washer, Flat Steel .28 x 1.00 x .063
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

15

Gravely 01196600

Yoke, Inner

$22.99

$

In Stock, only 1 left!

0

16

Gravely 06817100

Pin, Height Adjustment

$3.99

$

In Stock, Qty 20+

0

17

Gravely 06700001

Pin, Bow Tie Locking Cotter

$2.99

$

In Stock, Qty 20+

0

18

Gravely 05502100

Bushing, Flange .50 x .625 x .50 x .75

$3.99

$

In Stock, Qty 9

0

19

Gravely 05533500

Spacer, Wheel

$9.49

$

In Stock, only 2 left!

0

20

Gravely 06212300

Bolt, Round Head Square Neck .31-18 x 2.75

$2.99

$

In Stock, Qty 8

0

21

Gravely 06222300

Bolt, Round Head Square Neck .25-20 x 1.50 Grade 5
(Superseded to 06200331)

$1.49

$

In Stock, Qty 11

0

22

Gravely 06530100

Nut, Locking Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

23

Gravely 01197353

Bracket, Hood Cable Left Hand

$15.99

$

Usually ships in 4-12 days

0

24

Gravely 01198153

Bracket, Hood Cable Right Hand

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 05504700

Bushing, SLeeve .625 x .750 x .500 BR

$11.99

$

In Stock, only 1 left!

0
