911188 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower (SN: 000101 - 000880)

21" Self-Propelled Walk-Behind Mower

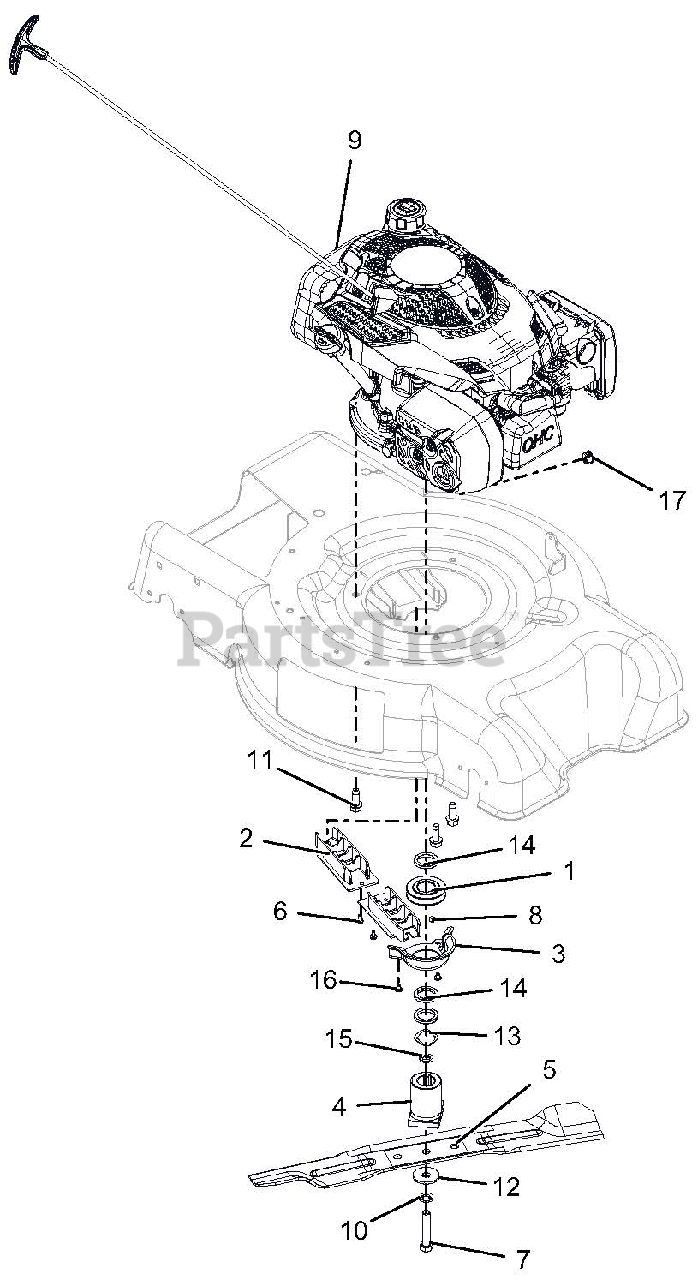

911188 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower (SN: 000101 - 000880) > Parts Diagrams (6) > Engine And Blade

  • Title
04849400

1

PULLEY,MACHINED POWDER METAL

Part# 04849400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.55

04733800

2

GUIDE, BELT INNER

Part# 04733800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

04533851

3

GUIDE, BELT CRANK

Part# 04533851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.32

04539400

4

ADAPTER, BLADE

Part# 04539400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

04544400

5

BLADE, MOWER 21" HIGH LIFT

Part# 04544400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

07400033

6

SCR-TAP 10-24X.375 PRE-COAT 80

Part# 07400033

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05901515

7

@BLT-HEX .4375-20X2.25 GR8 YWZ

Part# 05901515

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06600221

8

KEY-SQ .188X.188X.250

Part# 06600221

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

08200825

9

ENGINE, SUBARU 175CC VERT

Part# 08200825

OEM Warranty Repair Part for Ariens

Not available

06309300

10

@WSHR-LK .44X.109 REG YWZC

Part# 06309300

OEM Warranty Repair Part for Ariens

Not available

07414100

11

@SCR-TAP .38-16X1.00 HWH TR YZ

Part# 07414100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06400925

12

WSHR-FL-STL .4375X1.50X.125 YZ

Part# 06400925

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

09250700

13

WASHER - WAVE 1.09X1.37X.016

Part# 09250700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05501224

14

SPCR, 1.00 X 1.375 X .179

Part# 05501224

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06400926

15

WSHR-FL-STL .459X.750X.105 YZC

Part# 06400926

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07415500

16

SCR-TAP 10-24X.25 CRSLPH TR YZ

Part# 07415500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07500339

17

PLUG, DOME-BLACK, .625 DIA

Part# 07500339

OEM Warranty Repair Part for Ariens

Not available
