911188 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower (SN: 000885 - 034999) Engine And Blade Parts Diagram

21" Self-Propelled Walk-Behind Mower

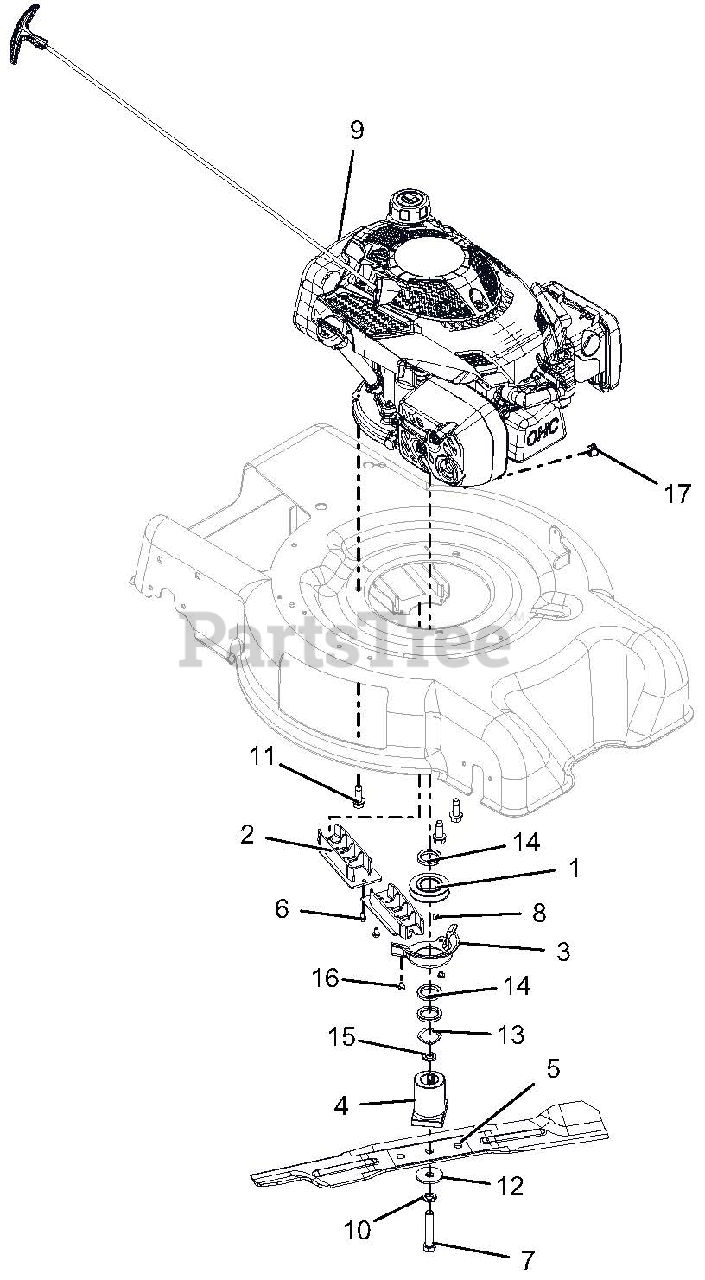

Engine And Blade Parts Diagram

  • Title

1

Ariens 04849400

PULLEY,MACHINED POWDER METAL

$23.99

$

Usually ships in 4-12 days

0

2

Ariens 04733800

GUIDE, BELT INNER

$10.99

$

Usually ships in 4-12 days

0

3

Ariens 04533851

GUIDE, BELT CRANK

$40.99

$

Usually ships in 4-12 days

0

4

Ariens 04539400

ADAPTER, BLADE

$19.99

$

Usually ships in 4-12 days

0

5

Ariens 04544400

BLADE, MOWER 21" HIGH LIFT

$25.99

$

In Stock, Qty 10

0

6

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.99

$

In Stock, Qty 16

0

7

Ariens 05901515

@BLT-HEX .4375-20X2.25 GR8 YWZ

$4.99

$

In Stock, Qty 5

0

8

Ariens 06600221

KEY-SQ .188X.188X.250

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 08200825

ENGINE, SUBARU 175CC VERT

$

$

Not available

10

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

11

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 14

0

12

Ariens 06400925

WSHR-FL-STL .4375X1.50X.125 YZ

$

$

Not available

13

Ariens 09250700

WASHER - WAVE 1.09X1.37X.016

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 05501224

SPCR, 1.00 X 1.375 X .179

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 06400926

WSHR-FL-STL .459X.750X.105 YZC

$5.49

$

Usually ships in 4-12 days

0

16

Ariens 07415500

SCR-TAP 10-24X.25 CRSLPH TR YZ

$1.49

$

Usually ships in 4-12 days

0

17

Ariens 07500339

PLUG, DOME-BLACK, .625 DIA

$

$

Not available
