911188 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower (SN: 035000 - 036999)

21" Self-Propelled Walk-Behind Mower

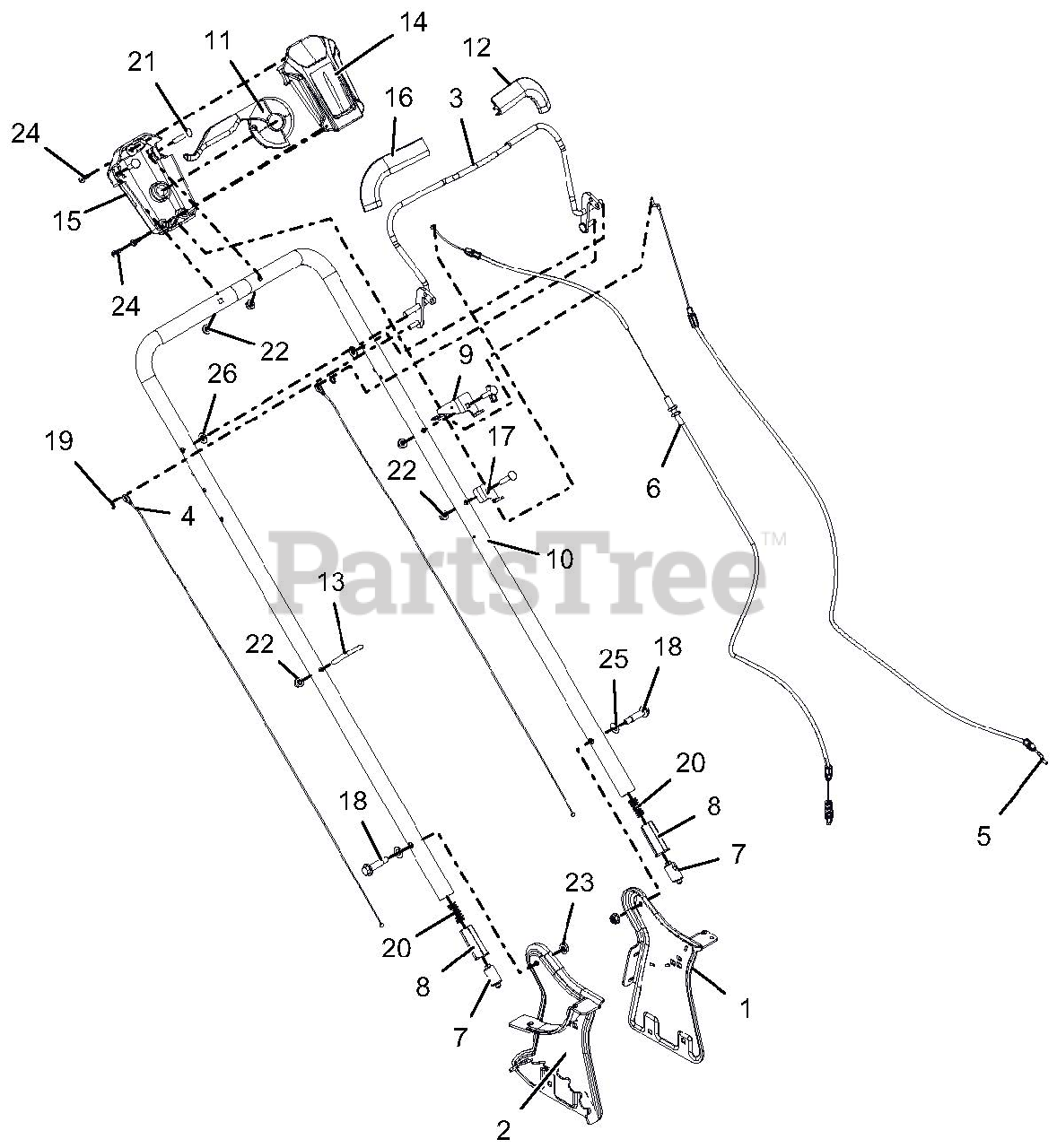

911188 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower (SN: 035000 - 036999) > Parts Diagrams (6) > Handlebar And Controls

  • Title
04516451

1

SUPPORT, LH HANDLEBAR

Part# 04516451

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

04516351

2

SUPPORT, RH HANDLEBAR

Part# 04516351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.47

04535559

3

WLDMT, OPC BAIL

Part# 04535559

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $71.38

06900528

4

CABLE, LM HANDLE ADJUST

Part# 06900528

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06900622

5

CABLE, OPC, RAZOR LM

Part# 06900622

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

06900535

6

CABLE, DRIVE CONTROL

Part# 06900535

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

04521400

7

PLUNGER, HANDLEBAR LOCKING

Part# 04521400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.09

04528600

8

INSERT, HANDLEBAR ADJUST

Part# 04528600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

04533651

9

BRKT, CABLE ANCHOR

Part# 04533651

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $32.37

04535351

10

HANDLEBAR, LM

Part# 04535351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.06

04535400

11

HANDLE, DRIVE CONTROL

Part# 04535400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.81

04535600

12

GUARD, FINGER - LH

Part# 04535600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

04535767

13

HOLDER, RECOIL CORD

Part# 04535767

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.55

04549000

14

HOUSING, UPPER DRIVE CONTROL

Part# 04549000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.81

04549100

15

HOUSING, LOWER DRIVE CONTROL

Part# 04549100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

51117000

16

HAND GRIP W/ DECAL

Part# 51117000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $55.68

04575351

17

BRKT, CABLE - DRIVE

Part# 04575351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.24

07001709

18

BLT-SHLDR, .50X1.15X.312-18GR5

Part# 07001709

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05717600

19

RG-RTNG-EXT .250X.010

Part# 05717600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

08300028

20

SPRING, COMPRESSION

Part# 08300028

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06222300

21

@BLT-RDHDSQNK .25-20X1.50 G5YZ

Part# 06222300

OEM Warranty Repair Part for Ariens

Not available

06543500

22

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06543100

23

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

07400101

24

SCR-TAP 12-14X.75PLSTITE @BLZC

Part# 07400101

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06400840

25

WSHR,.385X.745X.030 STL YWZC

Part# 06400840

OEM Warranty Repair Part for Ariens

Not available

06437200

26

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85
