911189 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower, BBC (SN: 035000 - 036999) Engine And Blade Parts Diagram

21" Self-Propelled Walk-Behind Mower, BBC

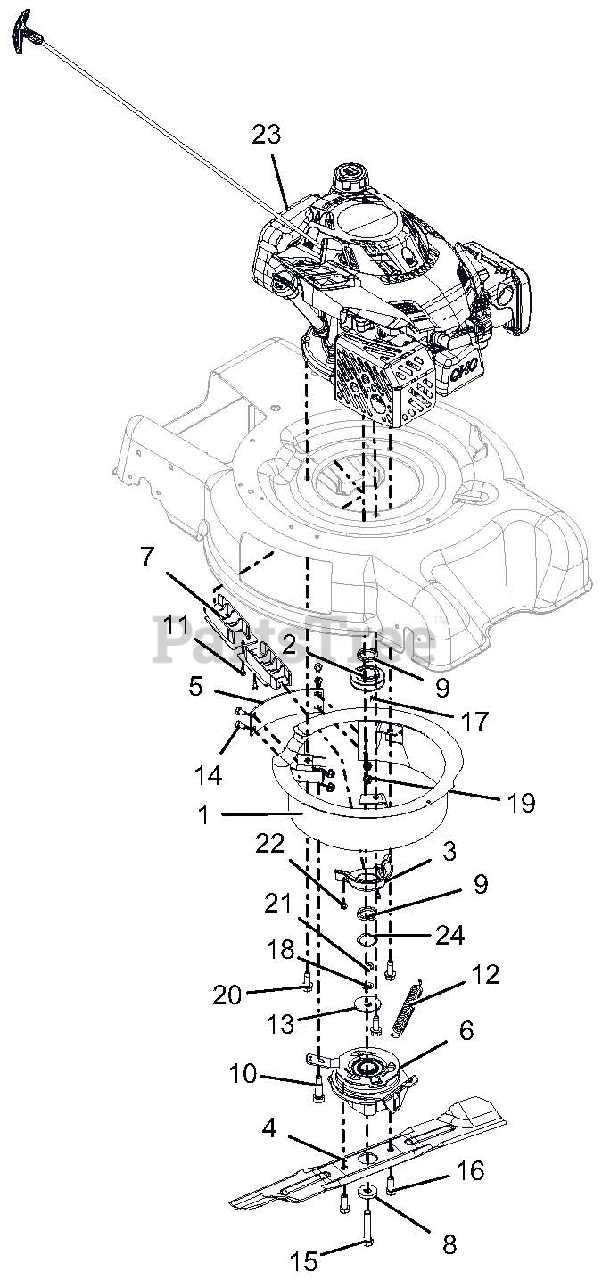

Engine And Blade Parts Diagram

  • Title
1

Ariens 04716451

WLDMT, ENCLOSURE - BBC

$126.89

$

Usually ships in 4-12 days

0

2

Ariens 07343700

PULLEY, GROUND DRIVE, LM

$22.30

$

In Stock, only 1 left!

0

3

Ariens 04533851

GUIDE, BELT CRANK

$17.94

$

Usually ships in 4-12 days

0

4

Ariens 04692700

BLADE, MOWER 21" HIGH LIFT-BBC

$22.30

$

In Stock, Qty 5

0

5

Ariens 04720451

BAFFLE, BBC

$56.96

$

Usually ships in 4-12 days

0

6

Ariens 04728100

CLUTCH, RAZOR/XD3, 25MM

$223.73

$

Usually ships in 4-12 days

0

7

Ariens 04733800

GUIDE, BELT INNER

$9.34

$

In Stock, Qty 5

0

8

Ariens 06400934

WSHR-FL-STL .44X1.25X.25 YWZC

$7.32

$

Usually ships in 4-12 days

0

9

Ariens 05501224

SPCR, 1.00 X 1.375 X .179

$3.47

$

In Stock, only 1 left!

0

10

Ariens 07001724

BLT,SHLDR 12MM X 25 W/ M10 THD

$5.53

$

Usually ships in 4-12 days

0

11

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80

$2.24

$

In Stock, Qty 9

0

12

Ariens 08300608

SPRING, EXTENSION BBC

$20.07

$

Usually ships in 4-12 days

0

13

Ariens 06400933

WSHR-FL-STL .469X1.75X.10 YWZC

$3.58

$

Usually ships in 4-12 days

0

14

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$1.96

$

In Stock, Qty 20+

0

15

Ariens 05901515

@BLT-HEX .4375-20X2.25 GR8 YWZ

$4.03

$

In Stock, Qty 5

0

16

Ariens 05943000

BLT-HEX M10 X 1.5X25 YWZC

$2.46

$

Usually ships in 4-12 days

0

17

Ariens 06600215

KEY-SQ .188X.188X.375

$2.12

$

Usually ships in 4-12 days

0

18

Ariens 06400935

WSHR-FL-STL .45X.75X.033

$3.58

$

Usually ships in 4-12 days

0

19

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.96

$

In Stock, Qty 20+

0

20

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.63

$

In Stock, Qty 11

0

21

Ariens 06400926

WSHR-FL-STL .459X.750X.105 YZC

$3.58

$

Usually ships in 4-12 days

0

22

Ariens 07415500

SCR-TAP 10-24X.25 CRSLPH TR YZ

$3.30

$

Usually ships in 4-12 days

0

23

Ariens 08200826

ENGINE, SUBARU 175CC VERT. BBC

$

$

Not available

24

Ariens 09250700

WASHER - WAVE 1.09X1.37X.016

$3.30

$

Usually ships in 4-12 days

0
