911189 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower, BBC (SN: 055000 & Above)

21" Self-Propelled Walk-Behind Mower, BBC

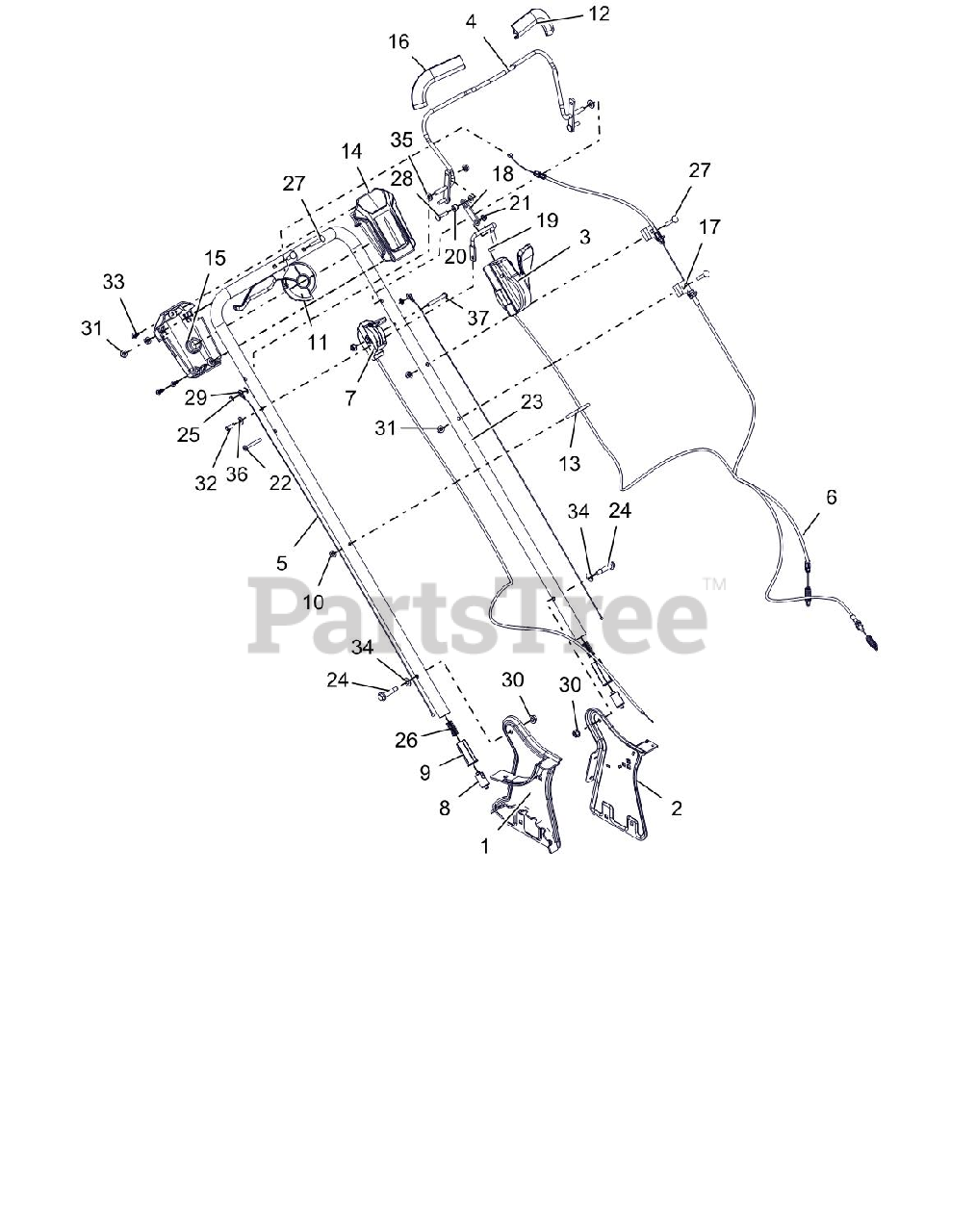

911189 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower, BBC (SN: 055000 & Above) > Parts Diagrams (6) > Handlebar And Controls

  • Title
04516351

1

SUPPORT, RH HANDLEBAR

Part# 04516351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.47

04516451

2

SUPPORT, LH HANDLEBAR

Part# 04516451

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

04668900

3

ASSY, BBC CONTROL

Part# 04668900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $61.94

04716159

4

WLDMT, OPC BAIL, BBC

Part# 04716159

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.37

06900528

5

CABLE, LM HANDLE ADJUST

Part# 06900528

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06900535

6

CABLE, DRIVE CONTROL

Part# 06900535

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

06900538

7

CONTROL, THROTTLE

Part# 06900538

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

04521400

8

PLUNGER, HANDLEBAR LOCKING

Part# 04521400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.09

04528600

9

INSERT, HANDLEBAR ADJUST

Part# 04528600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

06500012

10

@NUT-LK-NYL-FLG .25-20 YWZC

Part# 06500012

OEM Warranty Repair Part for Ariens

Not available

04535400

11

HANDLE, DRIVE CONTROL

Part# 04535400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.81

04535600

12

GUARD, FINGER - LH

Part# 04535600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

04535767

13

HOLDER, RECOIL CORD

Part# 04535767

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.55

04549000

14

HOUSING, UPPER DRIVE CONTROL

Part# 04549000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

04549100

15

HOUSING, LOWER DRIVE CONTROL

Part# 04549100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

04551100

16

GUARD, FINGER - RH

Part# 04551100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

04575351

17

BRKT, CABLE - DRIVE

Part# 04575351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.24

04716251

18

COUPLER, BBC CONTROL

Part# 04716251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

04716351

19

WIREFORM, BBC CONTROL

Part# 04716351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $45.39

05501132

20

BSHG, BBC LATCH

Part# 05501132

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

05501208

21

BUSHING, NYLON, .31, SPLIT

Part# 05501208

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.55

06100219

22

SCR M6-1.0X45 DIN7985A PH YWZC

Part# 06100219

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

04735051

23

HANDLEBAR, LM

Part# 04735051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.06

07001709

24

BLT-SHLDR, .50X1.15X.312-18GR5

Part# 07001709

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07027600

25

NUT-PUSH .25X.50 O.D.

Part# 07027600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

08300028

26

SPRING, COMPRESSION

Part# 08300028

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06222300

27

@BLT-RDHDSQNK .25-20X1.50 G5YZ

Part# 06222300

OEM Warranty Repair Part for Ariens

Not available

05947700

28

@BLT-HEX .25-20X1.00 GR5 YWZC

Part# 05947700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05717600

29

RG-RTNG-EXT .250X.010

Part# 05717600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06543100

30

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

06543500

31

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06800122

32

PIN, .25 X .75

Part# 06800122

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

07400101

33

SCR-TAP 12-14X.75PLSTITE @BLZC

Part# 07400101

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06400840

34

WSHR,.385X.745X.030 STL YWZC

Part# 06400840

OEM Warranty Repair Part for Ariens

Not available

06437200

35

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06437300

36

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $0.84

06100221

37

SCR, .25-20X2.00 PH PAN YWZC

Part# 06100221

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30
