911189 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower, BBC (SN: 055000 & Above)

21" Self-Propelled Walk-Behind Mower, BBC

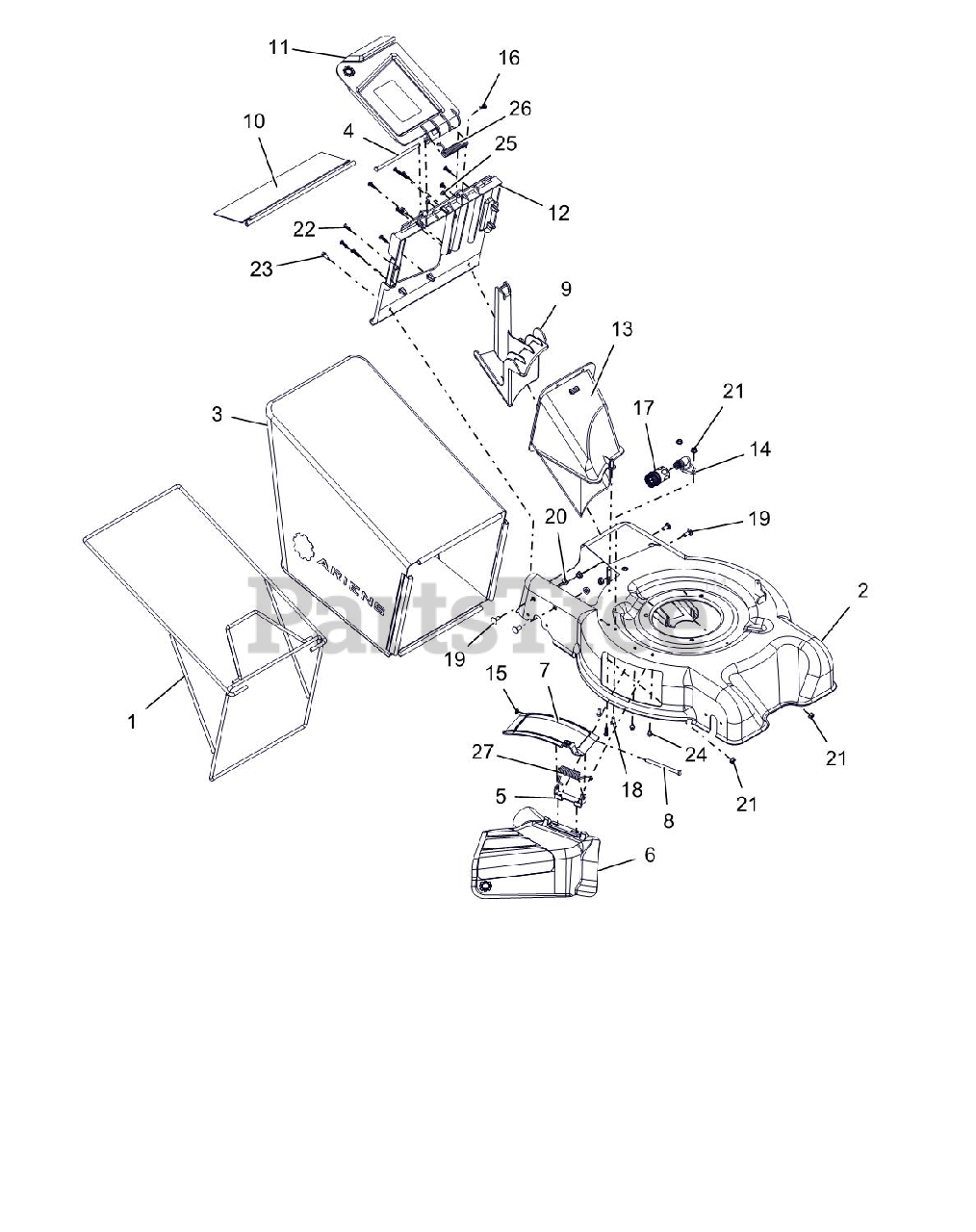

911189 (LMSP) - Ariens 21" Self-Propelled Walk-Behind Mower, BBC (SN: 055000 & Above) > Parts Diagrams (6) > Mower Deck And Bagger

  • Title
04718959

1

FRAME, BAGGER

Part# 04718959

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $137.69

04830459

2

WLDMT, ARIENS WP DECK

Part# 04830459

OEM Warranty Repair Part for Ariens

Not available

05088500

3

BAGGER-GRASS-ARIENS

Part# 05088500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

00475800

4

PIN, 5/16 X 5.80"

Part# 00475800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

04514651

5

BRKT, HINGE LM

Part# 04514651

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.08

04514800

6

CHUTE, SIDE DISCHARGE - LM

Part# 04514800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $21.07

04514900

7

COVER, SIDE DISCHARGE - LM

Part# 04514900 (Superseded to 51122400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

04534000

8

PIN, HINGE

Part# 04534000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.78

04534300

9

PLUG, MULCH

Part# 04534300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.55

04835600

10

GUARD, REAR DECK

Part# 04835600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $9.34

51116800

11

REAR DOOR W/ SAFETY DECAL

Part# 51116800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.84

04835700

12

HANGER, REAR BAG

Part# 04835700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

04547900

13

CHUTE, REAR DISCHARGE LM

Part# 04547900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

04428900

14

ASSY, WASHOUT PORT W/ O-RING

Part# 04428900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

06514900

15

NUT-PUSH .312

Part# 06514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06713500

16

PIN-HAIR INT .08X.18X1.18 YWZC

Part# 06713500

OEM Warranty Repair Part for Ariens

Not available

04396500

17

COUPLING, QUICK DISCONNECT

Part# 04396500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $21.07

05900338

18

BLT-HEX .25-20X.63 GR5 YWZC

Part# 05900338

OEM Warranty Repair Part for Ariens

Not available

06215700

19

@BLT-RDHDSQNK .31-18X.75 G5YZ

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06543100

20

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

06543500

21

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07400101

22

SCR-TAP 12-14X.75PLSTITE @BLZC

Part# 07400101

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07400103

23

@SCR-TAP .25-20X.62 HWH TR YWZ

Part# 07400103

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

07411600

24

@SCR-TAP .25-20X.37 HWH YWZ TR

Part# 07411600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07500301

25

PLUG,5/16 HOLE,.125 MATL PLSTC

Part# 07500301

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08322400

26

SG-TORS .120X.68X3.09

Part# 08322400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.76

08300614

27

SPRING, SIDE DISCHARGE DOOR

Part# 08300614

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89
