911196 (LM 21 S) - Gravely 21" Walk-Behind Mower, 6hp Kawasaki (SN: 022000 & Above) Mower Pan And Bag Parts Diagram

21" Walk-Behind Mower, 6hp Kawasaki

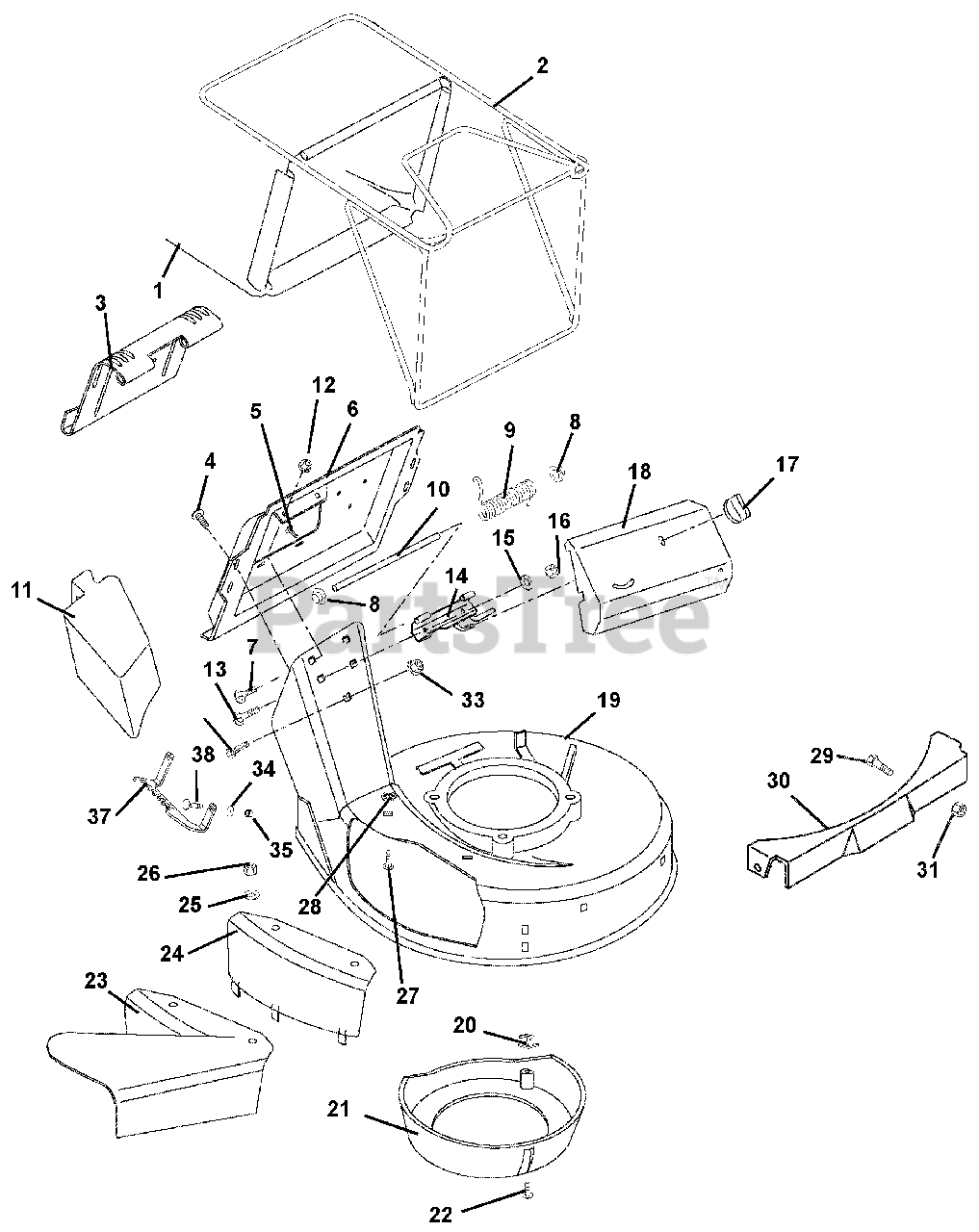

Mower Pan And Bag Parts Diagram

  • Title

1

Gravely 01180500

Bag, Consumer Black

$118.99

$

In Stock, Qty 5

0

2

Gravely 01241851

Frame, Bagger

$145.99

$

Usually ships in 4-12 days

0

3

Gravely 01136553

Door, Catcher Plate

$

$

Not available

4

Gravely 07411900

Screw, Tapping Hex Washer 12-24 x .50
(Superseded to 07400136)

$2.49

$

In Stock, Qty 5

0

5

Gravely 07414900

Screw, Tapping 10-24 x .38 Pan Head

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 01159753

Plate, Catcher

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 06203900

Bolt, Round Head Square Neck .25-20 x .50 Grade 5

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 02215300

Nut, Push

$2.49

$

In Stock, Qty 15

0

9

Gravely 08322400

Spring, Torsion .120 x .68 x 3.09

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 01141000

Pin, Door

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 01163500

Mulch Master Plug
(Superseded to 71102700)

$52.99

$

In Stock, only 2 left!

0

12

Gravely 06530100

Nut, Locking Flange .25-20 (911171)
(Superseded to 06500824)

Note: (911171)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 01155553

Hinge Base Weldment (911196, 197)

Note: (911196, 197)

$38.99

$

Usually ships in 4-12 days

0

Gravely 01138253

Hinge Base (911171)

Note: (911171)

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 06308000

Washer, Locking .25 x .077

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

17

Gravely 01159300

Nut, Wing (911196, 197)

Note: (911196, 197)

$

$

Not available

18

Gravely 04042453

Drive Cover (911196, 197)

Note: (911196, 197)

$52.99

$

Usually ships in 4-12 days

0

19

Gravely 51116300

Mower Pan Head with Decals (911196, 197)

Note: (911196, 197)

$

$

Not available

Gravely 51116400

Mower Pan Head with Decals (911171)

Note: (911171)

$394.99

$

Usually ships in 4-12 days

0

20

Gravely 07507600

Grommet, Plastic

$0.99

$

In Stock, Qty 10

0

21

Gravely 01173700

Baffle, Center

$46.99

$

Usually ships in 4-12 days

0

22

Gravely 07415000

Screw, Tapping 10-16 x .62 Hex Washer Head

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 01180200

Side Discharge Assembly

$36.99

$

In Stock, Qty 5

0

24

Gravely 01180351

Side Discharge Cover

$46.99

$

In Stock, only 2 left!

0

25

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06530200

Nut, Locking Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 2 (911196, 197)
(Superseded to 06200232)

Note: (911196, 197)

$2.99

$

In Stock, Qty 20+

0

Gravely 06220800

Bolt, Round Head Square Neck .31-18 x .75 Grade 2 (911171)
(Superseded to 06200309)

Note: (911171)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06222000

Bolt, Round Head Square Neck .31-18 x .50 Grade 5 (911196, 171)
(Superseded to 06200406)

Note: (911196, 171)

$3.49

$

In Stock, Qty 15

0

30

Gravely 01183553

Front Panel (911196, 171)

Note: (911196, 171)

$81.99

$

Usually ships in 4-12 days

0

31

Gravely 06543100

Nut, Locking-Top-Flange .31-18 (911196)
(Superseded to 06500904)

Note: (911196)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543100

Nut, Locking-Top-Flange .31-18 (911197)
(Superseded to 06500904)

Note: (911197)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05967000

Bolt, Hex .38-16 x .50 Grade 5 (911171)

Note: (911171)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06534900

Nut, Locking Flange Nut, .375-16 (911171)
(Superseded to 06500735)

Note: (911171)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083 (911171)
(Superseded to 06401023)

Note: (911171)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5 (911171)
(Superseded to 05901705)

Note: (911171)

$0.99

$

In Stock, only 3 left!

0

37

Gravely 04731600

Bracket, Speed Slection (911196, 197)

Note: (911196, 197)

$26.99

$

Usually ships in 4-12 days

0

38

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0
