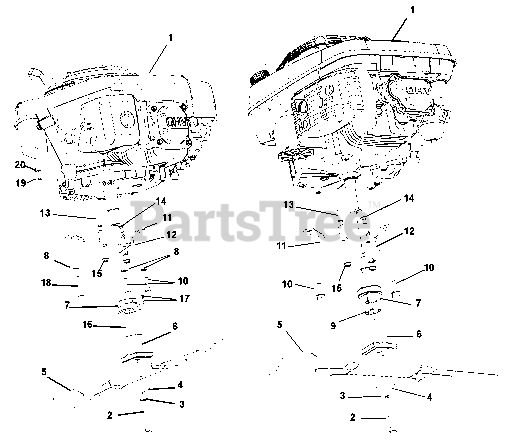

911208 (PRO 21 XD) - Gravely 21" Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Engine, Blade and Belt Parts Diagram

21" Walk-Behind Mower, 6hp Kawasaki

Engine, Blade and Belt Parts Diagram

  • Title

1

Gravely 08200048

Engine, 6.0 HP KAWI U.S. COMMERICIAL (Kawasaki Engine Model # - FJ180V-CS00) (911208)

Note: (Kawasaki Engine Model # - FJ180V-CS00) (911208)

$

$

Not available

Gravely 08200053

Engine, 6.0 HP KAWI U.S. COMMERICIAL 2006 (Kawasaki Engine Model # - FJ180V-CS00) (911216)

Note: (Kawasaki Engine Model # - FJ180V-CS00) (911216)

$

$

Not available

Gravely 08270500

Engine- Honda 5.5 HP OHV (Honda Engine Model # - GXV160KA12) (911206)

Note: (Honda Engine Model # - GXV160KA12) (911206)

$

$

Not available

2

Gravely 05976600

Bolt, Hex .38-24 x 2.00 Grade 8

$2.99

$

In Stock, only 4 left!

0

3

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

4

Gravely 06441700

Washer, Flat-Steel .39 x 1.5 x .125

$3.99

$

In Stock, Qty 12

0

5

Gravely 01137000

21" Mower Blade

$25.99

$

In Stock, Qty 20+

0

6

Gravely 09735100

Adapter, CE Blade (911208, 911216)

Note: (911208, 911216)

$46.99

$

Usually ships in 4-12 days

0

Gravely 09733300

Adapter- Blade Hub (911206)

Note: (911206)

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 09733100

Pulley-Sintered Iron LM (911208, 911216)
(Superseded to 04851300)

Note: (911208, 911216)

$17.99

$

Usually ships in 4-12 days

0

Gravely 09733400

Pulley-UNI Drive External Flange (911206)

Note: (911206)

$105.99

$

Usually ships in 4-12 days

0

8

Gravely 06308600

Washer, Locking .31 x .078 Regular (911206)
(Superseded to 06300119)

Note: (911206)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 01192900

Washer, Wave .885 x 1.311 x .125 (911208, 911216)

Note: (911208, 911216)

$5.49

$

In Stock, Qty 6

0

10

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head Thread (911208, 911216)
(Superseded to 07417500)

Note: (911208, 911216)

$3.99

$

In Stock, Qty 16

0

Gravely 05963600

Bolt Hex .31-24X1.00 Grade 5 (911206)

Note: (911206)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 00656451

Channel, XD21 Front Belt

$

$

Not available

12

Gravely 01265700

Finger, Belt

$

$

Not available

13

Gravely 01265600

Finger, Belt

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06530100

Nut, Locking-Flange .250-20
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06600900

Key, Woodruff .156 x .625 x .25 (911206)

Note: (911206)

$2.49

$

In Stock, Qty 11

0

17

Gravely 06005500

Screw, Set .31-18 x .38 Socket Head (911206)

Note: (911206)

$3.49

$

In Stock, only 2 left!

0

18

Gravely 05963500

Bolt, Hex .31-24 x 1.50 Grade 5 (911206)

Note: (911206)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065 (911206)
(Superseded to 06401017)

Note: (911206)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06529500

Nut, Hex .312-24 (911206)
(Superseded to 06500939)

Note: (911206)

$2.49

$

Usually ships in 4-12 days

0
