911208 (PRO 21 XD) - Gravely 21" Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Mower Deck and Bagger Parts Diagram

21" Walk-Behind Mower, 6hp Kawasaki

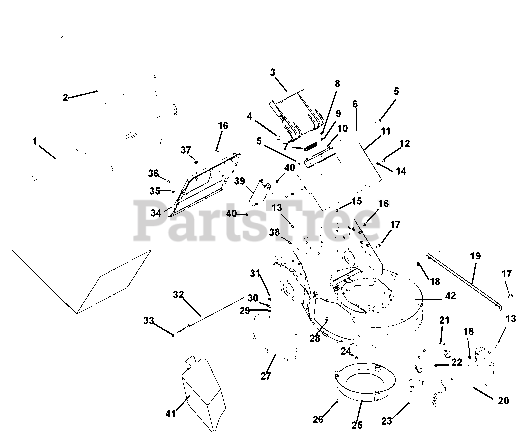

Mower Deck and Bagger Parts Diagram

  • Title

1

Gravely 01180500

Bag, Consumer Black 15 OZ/YD2

$116.99

$

In Stock, only 1 left!

0

2

Gravely 01241800

Frame, WBLM Bagger

$

$

Not available

3

Gravely 01136553

Catcher Plate Door

$

$

Not available

4

Gravely 07516000

Button Bumper

$1.99

$

In Stock, Qty 17

0

5

Gravely 02215300

Push Nut, .25

$1.99

$

In Stock, Qty 16

0

6

Gravely 01141000

Door Pin

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 08322400

Spring, Torsion .120 x .68 x 3.09

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

9

Gravely 06308000

Washer, Locking .250 x .077 Heavy

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 01138253

Hinge Base

$8.99

$

Usually ships in 4-12 days

0

11

Gravely 00615653

Grill Insert
(Superseded to 51112000)

$

$

Not available

12

Gravely 07411600

Screw, Tapping .250-20 x .37 Hex Washer Head
(Superseded to 07400125)

$0.99

$

In Stock, Qty 6

0

13

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07507600

Plastic Grommet

$0.99

$

In Stock, Qty 10

0

16

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

17

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

18

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00663853

Angle, Support

$

$

Not available

20

Gravely 00618653

Bumper, Pro 21"

$

$

Not available

21

Gravely 00670651

Guard, Front

$

$

Not available

22

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

23

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 11

0

24

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

25

Gravely 01173700

Center Baffle

$45.99

$

Usually ships in 4-12 days

0

26

Gravely 07415000

Screw, Tapping 10-16 x .62 SLPH AB

$1.99

$

Usually ships in 4-12 days

0

27

Gravely 01180351

Cover, Side Discharge

$28.99

$

In Stock, only 4 left!

0

28

Gravely 06214100

Bolt, Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

29

Gravely 06514900

Nut-Push .312

$0.99

$

In Stock, Qty 13

0

30

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06530200

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

32

Gravely 00677800

Trailing Shield

$35.99

$

Usually ships in 4-12 days

0

33

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 13

0

34

Gravely 01159753

Catcher Plate

$93.99

$

Usually ships in 4-12 days

0

35

Gravely 07511800

Bumper

$3.49

$

Usually ships in 4-12 days

0

36

Gravely 07414900

Screw, Tapping 10-24 x .375 TORX Pan Head

$3.49

$

Usually ships in 4-12 days

0

37

Gravely 06530100

Nut, Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

38

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

39

Gravely 00612453

Bracket, Bagger Support

$

$

Not available

40

Gravely 06530100

Nut, Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

41

Gravely 71102700

Plug, Mulchmaster Mulcher

$51.99

$

In Stock, only 4 left!

0

42

Gravely 00654053

Chassis, Pro 21 XD

$

$

Not available
