911214 (PRO 21 XD) - Ariens 21 " Self-Propelled Walk-Behind Mower, CARB (SN: 000101 & Above)

21 " Self-Propelled Walk-Behind Mower, CARB

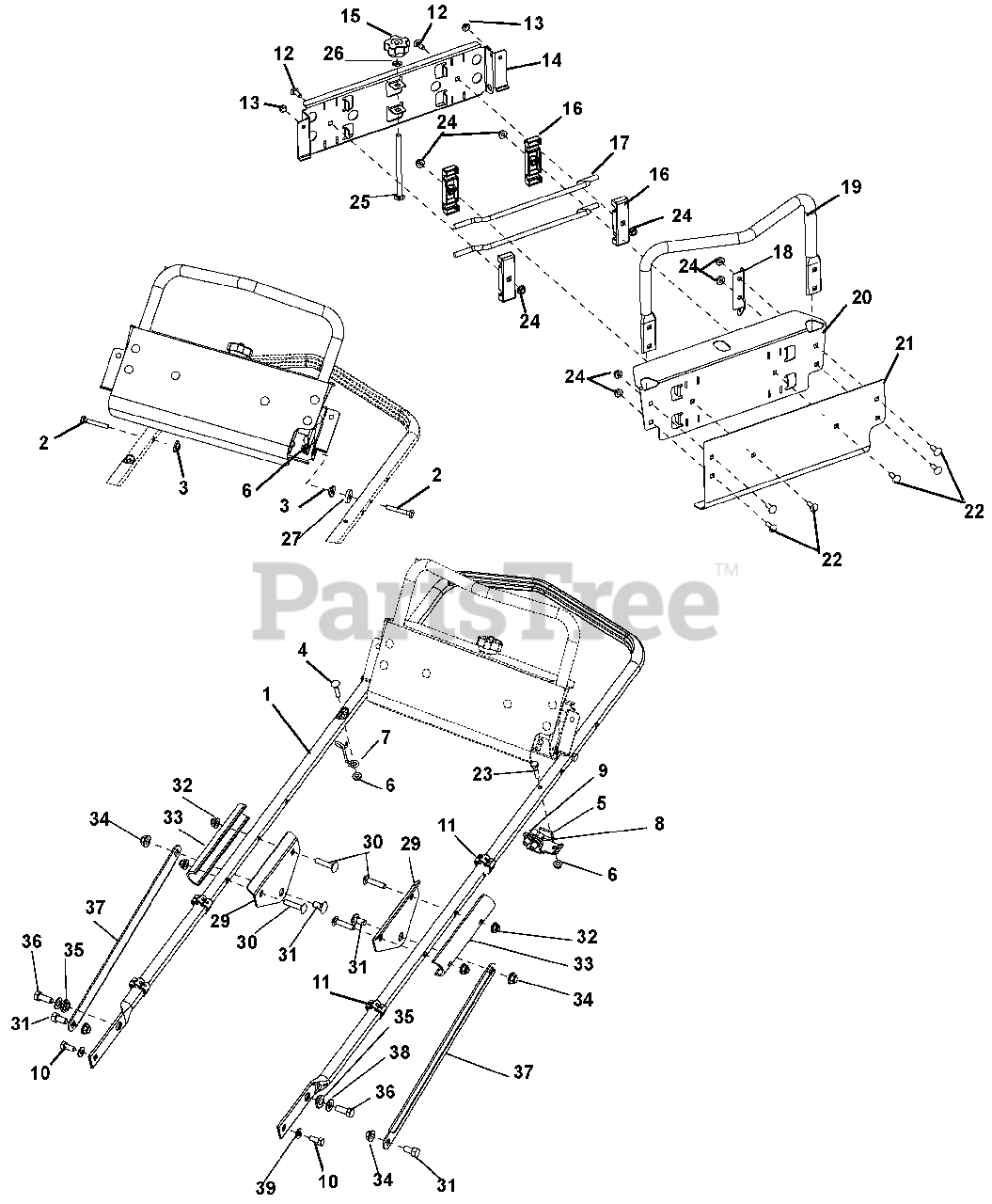

911214 (PRO 21 XD) - Ariens 21 " Self-Propelled Walk-Behind Mower, CARB (SN: 000101 & Above) > Parts Diagrams (6) > Handlebar And Controls

  • Title
00612551

1

HANDLEBAR,PRO 21

Part# 00612551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $141.37

05964700

2

@BLT-HEX .25-20X1.75 GR5 YWZC

Part# 05964700

OEM Warranty Repair Part for Ariens

Not available

05513400

3

BSHG-FLG .265X.437X.250X.750

Part# 05513400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

06220100

4

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Part# 06220100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

00589051

5

BKT,CABLE ANCHOR

Part# 00589051

OEM Warranty Repair Part for Ariens

Not available

06543500

6

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

04642100

7

GUIDE - PULLCORD

Part# 04642100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.61

00616200

8

CABLE,OPC (DLX) KAWASAKI

Part# 00616200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

00674600

9

CABLE-DRIVE

Part# 00674600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

05947000

10

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07539300

11

CONDUIT CLIP

Part# 07539300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06219800

12

@BLT-RDHDSQNK .25-20X1.00 G5YZ

Part# 06219800

OEM Warranty Repair Part for Ariens

Not available

07511800

13

BUMPER

Part# 07511800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00581051

14

PLATE,HINGE

Part# 00581051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

07534800

15

KNOB-CLAMPING, .312-18 NYLOC

Part# 07534800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.89

00587100

16

CLAMP,4-BAR

Part# 00587100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

00581200

17

ROD,4-BAR

Part# 00581200

OEM Warranty Repair Part for Ariens

Not available

00582251

18

CABLE ANCHOR

Part# 00582251

OEM Warranty Repair Part for Ariens

Not available

00584651

19

BAIL .750 TUBE

Part# 00584651

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

00581351

20

COVER,OP CONTROL

Part# 00581351 (Superseded to 51112100)

OEM Warranty Repair Part for Ariens

Not available

00598651

21

COVER,SHEETMETAL

Part# 00598651

OEM Warranty Repair Part for Ariens

Not available

06219800

22

@BLT-RDHDSQNK .25-20X1.00 G5YZ

Part# 06219800

OEM Warranty Repair Part for Ariens

Not available

05947400

23

@BLT-HEX .25-20X1.25 GR5 YWZC

Part# 05947400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06530100

24

@NUT-SPNLK-FLG .25-20 YWZC

Part# 06530100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06226200

25

BLT-RDHDSQNKFTH.31-18X5 GR5YZC

Part# 06226200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06514900

26

NUT-PUSH .312

Part# 06514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06439100

27

WSHR-FL-STL .328X.87X.179 YWZC

Part# 06439100

OEM Warranty Repair Part for Ariens

Not available

06529700

28

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

00612651

29

PLATE,HANDLEBAR

Part# 00612651

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.85

06212100

30

@BLT-RDHDSQNK .31-18X1.50 G5YZ

Part# 06212100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05959400

31

@BLT-HEX .38-16X.75 GR5 YWZC

Part# 05959400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06545400

32

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02722751

33

SERVICE BAR BRACE

Part# 02722751

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

06545500

34

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05515800

35

BSHG-FLG .406X.88X.270X.140

Part# 05515800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05948700

36

@BLT-HEX .38-16X1.00 GR5 YWZC

Part# 05948700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00612751

37

STRAP,HANDLEBAR

Part# 00612751

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.94

06436200

38

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06437200

39

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85
