911214 (PRO 21 XD) - Ariens 21 " Self-Propelled Walk-Behind Mower, CARB (SN: 000101 & Above)

21 " Self-Propelled Walk-Behind Mower, CARB

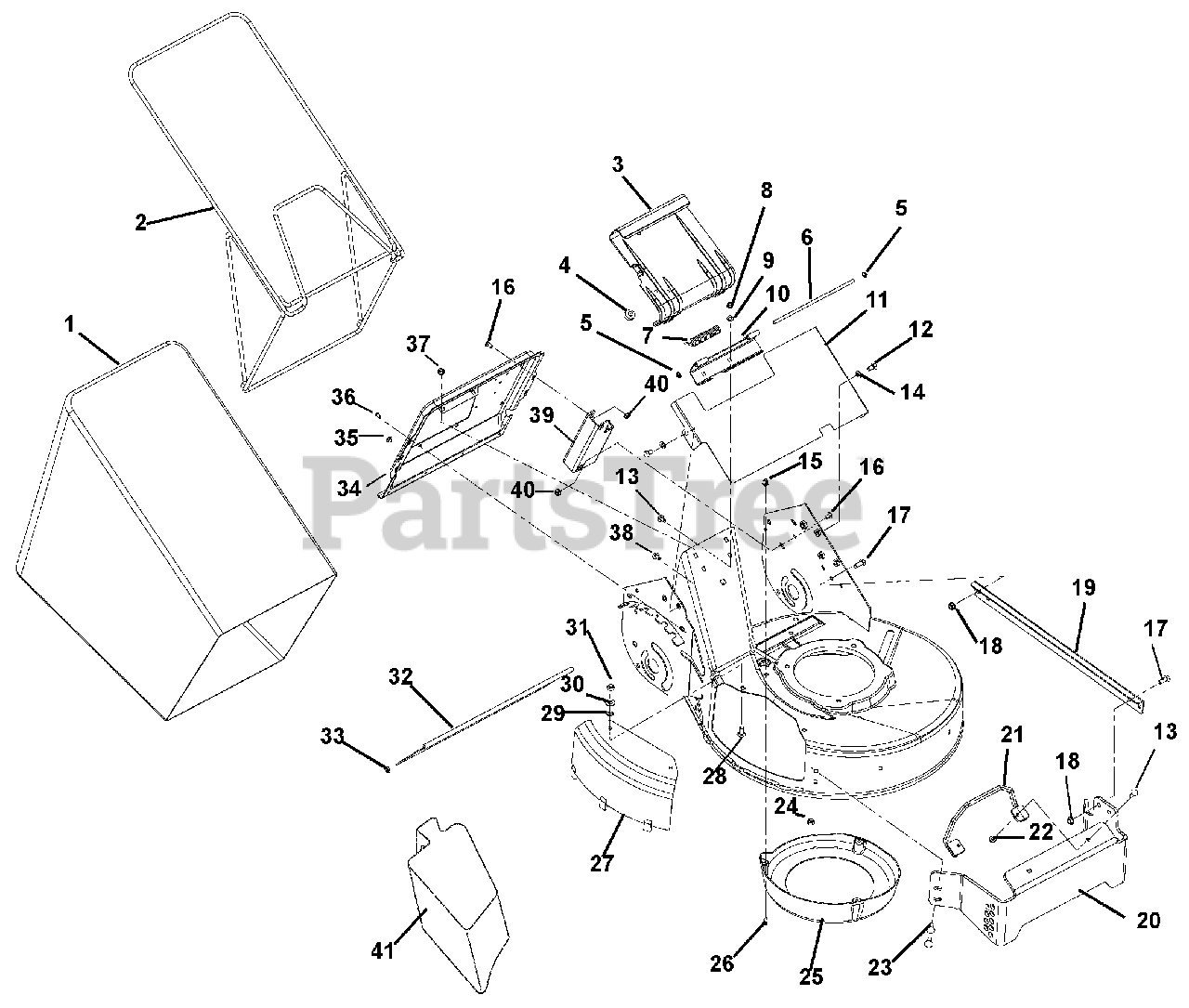

911214 (PRO 21 XD) - Ariens 21 " Self-Propelled Walk-Behind Mower, CARB (SN: 000101 & Above) > Parts Diagrams (6) > Mower Deck And Bagger

  • Title
01180500

1

BAG, CONSUMER BLACK 15 OZ/YD2

Part# 01180500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $72.52

01241800

2

FRAME, WBLM BAGGER

Part# 01241800

OEM Warranty Repair Part for Ariens

Not available

01136559

3

CATCHER PLATE DOOR

Part# 01136559

OEM Warranty Repair Part for Ariens

Not available

07516000

4

BUTTON BUMPER

Part# 07516000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02215300

5

PUSH NUT, .25

Part# 02215300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01141000

6

DOOR PIN

Part# 01141000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

08322400

7

SG-TORS .120X.68X3.09

Part# 08322400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.76

06533200

8

@NUT-HEX .25-20 YWZC

Part# 06533200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06308000

9

WSHR-LK .250X.077 HVY YWZC

Part# 06308000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01138259

10

HINGE BASE

Part# 01138259

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

00615659

11

COVER

Part# 00615659 (Superseded to 51111900)

OEM Warranty Repair Part for Ariens

Not available

07411600

12

@SCR-TAP .25-20X.37 HWH YWZ TR

Part# 07411600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06219900

13

@BLT-RDHDSQNK .25-20X.75 G5YZ

Part# 06219900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06308600

14

@WSHR-LK .31X.078 REG YWZC

Part# 06308600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07507600

15

PLASTIC GROMMET

Part# 07507600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06220600

16

@BLT-RDHDSQNK .25-20X.50 G5YZ

Part# 06220600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05947000

17

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06543100

18

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

00663859

19

ANGLE-SUPPORT

Part# 00663859

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

00618659

20

BUMPER,PRO 21"

Part# 00618659

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.58

00663853

21

ANGLE-SUPPORT

Part# 00663853

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

06543500

22

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06215700

23

@BLT-RDHDSQNK .31-18X.75 G5YZ

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06530400

24

@NUT-SPNLK-FLG .312-18 YWZC

Part# 06530400

OEM Warranty Repair Part for Ariens

Not available

01173700

25

CENTER BAFFLE

Part# 01173700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.72

07415000

26

SCR-TAP 10-16X.62 SLPH AB YWZC

Part# 07415000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01180351

27

COVER, SIDE DISCHARGE

Part# 01180351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.16

06214100

28

BLT-RDHDSQSHK.31-18X.75 GR2 YW

Part# 06214100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06514900

29

NUT-PUSH .312

Part# 06514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06436200

30

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06530200

31

@NUT-LK-NYL .312-18 YWZC

Part# 06530200

OEM Warranty Repair Part for Ariens

Not available

00677800

32

TRAILING SHIELD

Part# 00677800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

06514900

33

NUT-PUSH .312

Part# 06514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01159759

34

CATCHER PLATE

Part# 01159759

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $81.11

07511800

35

BUMPER

Part# 07511800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07414900

36

SCR-TAP 10-24X.375 TORX PHD YZ

Part# 07414900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06530100

37

@NUT-SPNLK-FLG .25-20 YWZC

Part# 06530100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06220600

38

@BLT-RDHDSQNK .25-20X.50 G5YZ

Part# 06220600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00612459

39

BKT,BAGGER SUPPORT

Part# 00612459

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.05

06530100

40

@NUT-SPNLK-FLG .25-20 YWZC

Part# 06530100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

71102700

41

MULCH MASTER MULCHER ACCESSORY

Part# 71102700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.23
